New Holland TC25–TC34 & Case IH DX25–DX34 Hardtop Cab 40010

Get more protection from rain, snow, sleet, and cold wind with the Original Tractor Cab Hardtop Cab 40010.

This aftermarket tractor cab fits a wide range of New Holland TC, Boomer, and earlier compact tractors. In addition, it fits select Case IH DX and Farmall compact tractors.

The cab uses a strong 16-gauge steel tube frame with durable rip-stop vinyl material. Clear windows help you see around the tractor. Meanwhile, a glass windshield and manual wiper help maintain the forward view in wet weather.

Best of all, Cab 40010 mounts to existing points on compatible tractors. Therefore, you do not need to drill holes in your tractor during normal installation.

Original Tractor Cab has made products for people who work outdoors since 1939. Now, you can buy Cab 40010 direct from the company that makes it.

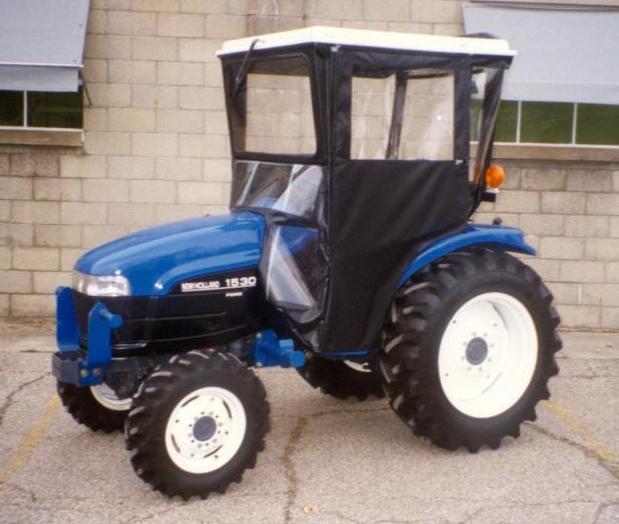

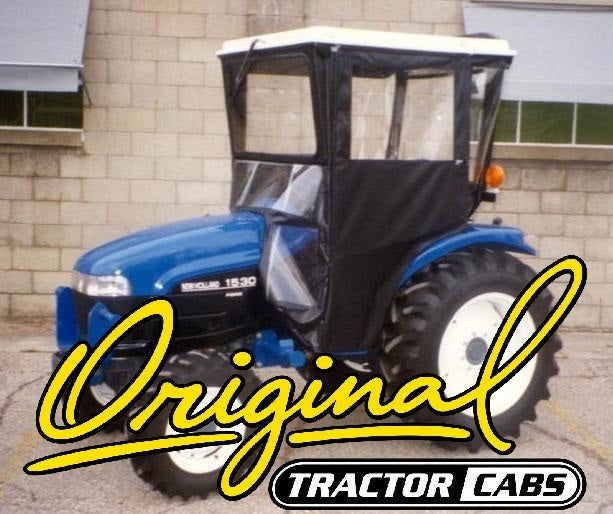

Original Tractor Cab Hardtop Cab 40010

Cold weather does not stop outdoor work.

Snow still needs to be moved. Likewise, livestock, property, driveways, lanes, and grounds still need care when temperatures fall.

An open compact tractor can leave the operator exposed to wind and blowing snow. Therefore, adding a full enclosure can make cold-weather tractor work more pleasant.

Original Tractor Cab 40010 surrounds the operator area with a hard roof, vinyl enclosure, clear windows, and hinged doors.

Dealer product information confirms that Cab 40010 uses a 16-gauge steel tube frame covered with durable rip-stop vinyl. It also includes a glass windshield and manual wiper.

Exact New Holland Cab 40010 Fitment

Cab 40010 fits more New Holland tractors than the current product title suggests.

Original Tractor Cab currently lists fitment for the New Holland TC25DA, TC25D, TC29D, TC29DA, TC33, TC33D, TC31DA, TC33DA, TC34DA, T2210, T2220, 1530, 1630, 1725, 1925, Boomer 2030, and Boomer 2035.

Dealer fitment data also supplies production-year guidance for many of these machines. For example, it lists TC25D and TC29D applications from 1999–2003, TC34DA from 2005–2008, T2210 and T2220 applications in 2008, and Boomer 2030 and 2035 applications from 2008–2018.

Because tractor equipment can vary, always check the complete model before ordering.

If you have a fit question, use the Original Tractor Cab contact page.

Case IH DX and Farmall Cab Fitment

Original Tractor Cab 40010 also fits select Case IH compact tractors.

Current fitment includes the Case IH DX25, DX29, DX31, DX33, and DX34. In addition, the cab fits the Farmall 31 and Farmall 35.

That cross-brand fit is not an accident.

Several New Holland and Case IH tractors from this era share closely related platforms. For example, historical tractor data identifies the Case IH Farmall DX29 as the related model to the New Holland TC29DA.

Still, never choose a cab based only on horsepower or tractor color. Check the full model number before you buy.

Hardtop Tractor Cab for Cold-Weather Work

A compact tractor can work all year.

However, the operator may face very different conditions from one season to another.

Summer may bring mowing and loader work. Then, winter may bring snow removal, hauling, feeding, or property care.

Cab 40010 helps turn a compatible open-station tractor into a more weather-protected work machine.

Protection From Rain, Snow, Sleet, and Wind

Cab 40010 helps shield the operator from foul weather.

The roof blocks weather from above. Meanwhile, the windshield, doors, side panels, and rear enclosure help reduce direct exposure from other directions.

Dealer information specifically describes the cab as protection from wind, blowing snow, rain, and sleet.

Therefore, this New Holland and Case IH cab can be a useful upgrade for winter work.

However, Cab 40010 is a weather enclosure. It is not a sealed automotive cab.

Strong 16-Gauge Steel Tube Frame

The cab starts with a steel frame.

Original Tractor Cab uses 16-gauge steel tubing to support the enclosure.

That frame supports the roof, doors, windows, and vinyl panels around the operator.

As a result, Cab 40010 is much more than a loose tractor cover.

The structured frame also gives the enclosure its shape while the tractor is in use.

Durable Rip-Stop Vinyl Enclosure

Outdoor equipment needs materials made for outdoor work.

For that reason, Cab 40010 uses a durable rip-stop vinyl enclosure over its steel frame.

Dealer information describes the material as resistant to abrasion, water, mildew, and rot.

So, the material is well suited to the wet and dirty setting that comes with tractor work.

The vinyl also keeps the cab lighter and simpler than a full steel operator enclosure.

Hard ABS Roof

Cab 40010 uses a solid ABS plastic roof.

The hardtop creates a firm barrier above the operator. Therefore, rain and falling snow meet a solid surface instead of a soft fabric top.

Current dealer information notes that the roof is now black, even though some older product photos may show a white roof.

That detail should appear near the product images on the Shopify page so buyers know what they will receive.

Glass Windshield Included

A clear forward view matters during tractor work.

So, Cab 40010 includes a glass windshield.

This is an important feature because glass can offer a durable front viewing surface for wet and snowy conditions.

Dealer information confirms that the glass windshield comes standard with Cab 40010.

Manual Windshield Wiper Included

Rain and wet snow can cover a windshield.

Therefore, Cab 40010 also includes a manual windshield wiper.

The simple hand-operated system lets the operator clear the windshield without adding an electric wiper motor.

That makes the wiper useful while keeping the basic cab design simple.

Clear Lexan Side and Rear Windows

Visibility matters on every side of a compact tractor.

You may need to watch an attachment. Likewise, you may need to look behind the tractor while backing or working near a building.

Cab 40010 uses clear, shatter-resistant Lexan material in the rear curtain and side doors.

As a result, the enclosure adds weather coverage while maintaining useful views around the tractor.

Hinged Doors Make Entry Easy

A cab needs to provide weather coverage without making the tractor hard to enter.

For that reason, Cab 40010 uses hinged doors with latches.

Open the door, enter the tractor, and latch it behind you.

Dealer information confirms the hinged-door design.

Remove the Doors During Warm Weather

Winter may call for a full enclosure.

However, summer is different.

The doors on Cab 40010 can be removed for warm-weather use. With the doors removed, the hard roof can continue to provide overhead coverage.

Therefore, the cab can adapt as the seasons change.

No Drilling Required

Many tractor owners do not want to drill into their equipment.

Cab 40010 avoids that issue.

Dealer installation information states that the cab mounts using existing holes. Therefore, drilling is not required when the cab is installed as designed on a compatible tractor.

That is a strong benefit for a direct-to-consumer tractor accessory.

Cab 40010 Installation Time

Plan on roughly three to four hours for normal installation.

Original Tractor Cab's live page gives a 3–4 hour installation estimate, while dealer information lists installation at less than four hours.

Take your time during assembly.

First, read the instructions. Next, identify the hardware and frame sections. Then, follow the installation sequence.

You can also visit the Original Tractor Cab installation manuals page.

Correct installation matters for fit, function, and safe use.

Accessories for Cab 40010

Some tractor owners may want to add more features to their enclosure.

Dealer information shows related accessories such as a rear mirror kit, LED work-light kit, and amber LED caution-light kit.

Compatibility can vary. Therefore, verify each accessory before ordering.

You can browse available products in the Original Tractor Cab accessories collection.

Why Buy Cab 40010 Direct From Original Tractor Cab?

When you buy direct, you buy from the company that makes the cab.

That gives you a direct source for product information.

In addition, you can get help with fitment, installation, parts, and related accessories.

Dealer partners have helped sell Original Tractor Cab products for years. However, direct online sales now give equipment owners another way to buy.

Browse the Original Tractor Cab New Holland collection to see more products for compatible equipment.

You can also learn more about the company on the Original Tractor Cab About Us page.

New Holland TC25–TC34 Tractor Specifications

Cab 40010 fits several generations of New Holland compact tractors.

Therefore, there is no single horsepower, engine, transmission, or weight specification that applies to every compatible machine.

The TC tractors in this group belong to New Holland's compact utility tractor families.

New Holland continues to provide resources for compact tractor owners and directs owners of older machines to its prior-model resources.

For factory information, visit the official New Holland Compact Tractor Resources.

For older equipment, use New Holland's prior-model resources available through that page.

New Holland TC29DA Specifications

The New Holland TC29DA is a good example of the tractor class served by Cab 40010.

It is a compact utility tractor from the Boomer TC-A Series.

The TC29DA uses a 1.3-liter, three-cylinder Shibaura diesel engine. Gross engine output is 29 horsepower.

Buyers could choose a nine-speed gear transmission or hydrostatic drive.

In addition, the tractor uses four-wheel drive and power steering.

TC29DA PTO and Hydraulic Power

The TC29DA produces about 25 PTO horsepower with the gear transmission.

The hydro version provides about 23.6 PTO horsepower.

Its open-center hydraulic system supplies about 7.6 gallons per minute of pump flow. Steering flow is about 5.1 gallons per minute.

The Category I rear hitch has a listed lift capacity of about 1,635 pounds at 24 inches.

Therefore, the TC29DA can handle a useful range of compact tractor implements.

TC29DA Size and Weight

The TC29DA has a standard wheelbase of about 63 inches.

Listed tractor weight is about 2,474 pounds.

New Holland offered attachments such as mid-mount mower decks, snowblowers, blades, loaders, and backhoes.

That attachment range helps explain why weather protection can be useful.

A tractor that mows during summer may clear snow during winter.

New Holland TC33DA Specifications

The TC33DA moves up to 33 gross engine horsepower.

It uses a 1.5-liter, three-cylinder Shibaura diesel engine.

Like the TC29DA, it was available with gear and hydrostatic transmission choices.

The tractor also uses four-wheel drive.

TC33DA PTO and Hydraulic System

New Holland rated gear PTO output at about 28.6 horsepower.

Hydrostatic versions produce about 26.9 PTO horsepower.

Hydraulic pump flow is about 7.6 gallons per minute, while steering flow is about 5.1 gallons per minute.

The Category I three-point hitch has a listed rear lift capacity of about 1,635 pounds at 24 inches.

That combination makes the TC33DA useful for mowing, loader work, snow removal, property care, and other compact tractor jobs.

New Holland TC34DA Specifications

The TC34DA followed the earlier TC33DA.

Historical tractor data places the TC34DA in the 2005–2008 period and lists it at about 35 horsepower.

Dealer fitment information also lists Cab 40010 for the TC34DA from 2005–2008.

Therefore, owners of these later TC tractors can add the same basic Original Tractor Cab weather enclosure used on several earlier New Holland models.

Other Compatible New Holland Tractors

Cab 40010 reaches well beyond the TC29DA, TC33DA, and TC34DA.

The current Original Tractor Cab page also lists the TC25D, TC25DA, TC29D, TC31DA, TC33, TC33D, T2210, T2220, 1530, 1630, 1725, 1925, Boomer 2030, and Boomer 2035.

Exact specifications vary greatly across those models.

Therefore, use the operator manual and serial number for your exact tractor when weight, capacity, service, tire, PTO, or safety specifications matter.

Case IH DX25–DX34 and Farmall Tractor Specifications

Cab 40010 also serves several Case IH compact tractors.

The verified applications include the DX25, DX29, DX31, DX33, DX34, Farmall 31, and Farmall 35.

These models span more than one production period.

So, exact specifications depend on the tractor.

Case IH DX29 and New Holland TC29DA

The Case IH DX29 is closely related to the New Holland TC29DA.

Historical tractor data identifies the Farmall DX29 as the similar Case IH model for the TC29DA.

That relationship helps explain why Original Tractor Cab 40010 can fit machines from both brands.

However, always order by the exact verified model rather than assuming that every similar Case IH tractor fits.

Case IH DX33 and New Holland TC33DA

A similar relationship exists between the Case IH DX33 and New Holland TC33DA.

Historical data identifies the Farmall DX33 as the comparable Case IH model for the TC33DA.

Again, this gives Cab 40010 useful cross-brand coverage.

Case IH Compact Tractor Design

Current Case IH compact tractors continue many of the jobs performed by these older DX and Farmall machines.

Modern compact Farmall tractors are designed for work such as loader use, mowing, snow blowing, backhoe work, and property care.

For current manufacturer information, visit the official Case IH Farmall Compact Tractor range.

That link covers current equipment rather than claiming that today's Farmall tractors are Cab 40010 applications.

Why Cab 40010 Makes Sense for a Compact Tractor

Compact tractors can work during every season.

A mower deck may handle grass in summer. Later, a loader or blade may handle leaves, dirt, or snow.

Yet an open operator station leaves you exposed when the weather turns cold.

Cab 40010 adds a hard roof, glass windshield, side and rear windows, doors, and weather-resistant enclosure around the operator.

As a result, an older compact tractor can remain a more pleasant machine to use during cold or wet weather.

The History of Original Tractor Cab Company

Original Tractor Cab Co., Inc. traces its history to 1939.

The company story began with farmer Stanley Williams.

Williams saw a simple problem on his farm. Tractor operators needed better protection from the weather.

So, he built a solution.

Stanley designed the first prototype that later became the foundation for Original Tractor Cab. Other farmers soon saw the value of his idea, and demand began to grow.

Born From a Real Farm Need

Original Tractor Cab did not begin with a marketing plan.

It began with a problem in the field.

Farmers worked outside in rain, wind, snow, sun, and cold. Therefore, operator weather protection had clear value.

Stanley's design helped meet that need.

Soon, other farmers wanted similar products.

As a result, a practical farm idea grew into a manufacturing business.

Original Tractor Cab During World War II

World War II changed the young company's work.

Normal cab production stopped.

Instead, Original Tractor Cab shifted its manufacturing work to support the military.

The company made backpacks and other needed items during the war.

Afterward, the company returned to products for farmers and outdoor equipment owners.

Three Generations of Original Tractor Cab

The business continued to change as equipment changed.

Today, the company makes more than its early tractor enclosures.

Its products include protective enclosures, tractor cabs, sunshades, mower products, snow equipment products, and lawn and garden accessories.

Still, the main idea remains simple.

Original Tractor Cab makes useful products for people who work outdoors.

The company describes its history as spanning three generations.

Made in the USA Since 1939

Original Tractor Cab proudly states that its products are made in the USA and traces its roots to 1939.

Cab 40010 carries that history forward.

Instead of serving the tractors of 1939, it brings weather protection to compatible New Holland and Case IH compact tractors.

Yet the goal remains much the same: help people work outdoors when the weather is less than ideal.

Frequently Asked Questions About Cab 40010

What New Holland tractors fit Cab 40010?

Original Tractor Cab lists the TC25DA, TC25D, TC29D, TC29DA, TC33, TC33D, TC31DA, TC33DA, TC34DA, T2210, T2220, 1530, 1630, 1725, 1925, Boomer 2030, and Boomer 2035.

What Case IH tractors fit Cab 40010?

Verified fitment includes the Case IH DX25, DX29, DX31, DX33, and DX34.

Does Cab 40010 fit Farmall tractors?

Yes. Current fitment information lists the Farmall 31 and Farmall 35.

Does installation require drilling?

No. Cab 40010 uses existing mounting holes when installed as designed on a compatible tractor.

How long does Cab 40010 take to install?

Plan on roughly three to four hours.

Does Cab 40010 include a glass windshield?

Yes. The glass windshield is included.

Does the cab include a windshield wiper?

Yes. Cab 40010 includes a manual windshield wiper.

Can I remove the doors in summer?

Yes. Dealer information states that the doors can be removed during summer so the roof can continue to serve as overhead coverage.

What color is Cab 40010?

The current Original Tractor Cab page lists the enclosure as black with a black top. Dealer information also notes that current roofs are black even though older photos may show white.

Is Cab 40010 a genuine New Holland or Case IH cab?

No. Original Tractor Cab Co., Inc. manufactures Cab 40010 as an aftermarket product for compatible tractors.

Does Cab 40010 provide rollover protection?

No. Cab 40010 is a foul-weather enclosure. It is not a ROPS, FOPS, rollover protection device, or falling-object protection device.

California Proposition 65 Notice

WARNING: Cancer and Reproductive Harm.

California Proposition 65 requires warnings when a product can expose a person to chemicals California lists as causing cancer, birth defects, or other reproductive harm.

If Proposition 65 applies to Cab 40010 based on its materials and expected exposure, Original Tractor Cab should display the current product-specific California warning before purchase. Any required warning should also appear on or with the delivered product.

For more information, visit the official California Proposition 65 Warnings website.

This general notice does not replace a product-specific safe-harbor warning when one is required.

Important Non-OEM and Liability Disclaimer

This is an aftermarket product produced by Original Tractor Cab Co., Inc. It is not a genuine New Holland, Case IH, Farmall, or CNH OEM cab or factory-installed operator enclosure.

Cab 40010 is designed to provide foul-weather protection from conditions such as rain, snow, sleet, and cold wind. It does not provide protection from noise, exhaust fumes, chemicals, rollover, collision, falling objects, flying debris, or other accidents.

Cab 40010 is not a ROPS, FOPS, rollover protection device, falling-object protection device, collision protection system, or substitute for factory safety equipment.

Never alter, drill, cut, weld, remove, bypass, or defeat the tractor manufacturer's ROPS, seat belt, guards, shields, interlocks, or other factory safety systems to install or use this cab.

Install Cab 40010 only as directed by Original Tractor Cab. In addition, follow all New Holland or Case IH operating instructions, safety warnings, and maintenance requirements.

The operator remains responsible for safe tractor operation, correct cab installation, adequate ventilation, inspection of mounting hardware, overhead clearance, safe transport, and confirmation that Cab 40010 is compatible with the tractor before use.

New Holland, Case IH, Farmall, and related marks are trademarks of their respective owners. Original Tractor Cab Co., Inc. is an independent aftermarket manufacturer and is not affiliated with or endorsed by New Holland, Case IH, Farmall, or CNH.
