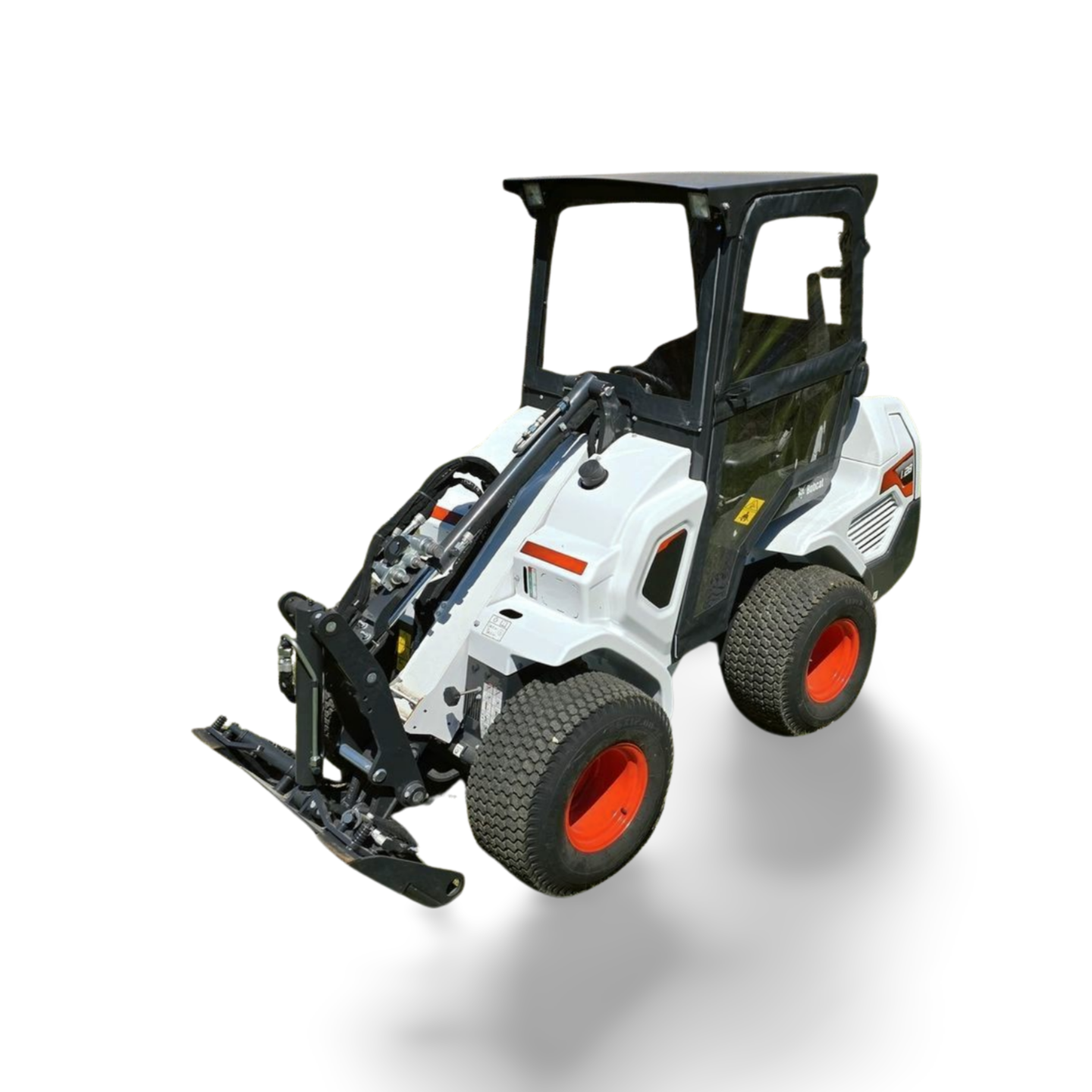

Bobcat L28 & L23 60570 by Original Tractor Cab
Bobcat L28 & L23 60570 by Original Tractor Cab
Couldn't load pickup availability
Bobcat L23 & L28 Cab Enclosure 60570 | Original Tractor Cab
Add weather protection to your Bobcat L23 or L28 with Original Tractor Cab Enclosure 60570.
Rain, snow, sleet, cold wind, and wet weather can make loader work hard. So, Cab 60570 adds a light enclosure around the operator while keeping the machine easy to use.
The black cab fits the Bobcat L23 and L28 small articulated loaders. In addition, it includes a hinged door, opening windows, a hand-operated windshield wiper, and removable panels.
At only about 27 pounds, the enclosure adds useful weather coverage without a large amount of extra weight.
Best of all, you can now buy Cab 60570 direct from Original Tractor Cab.

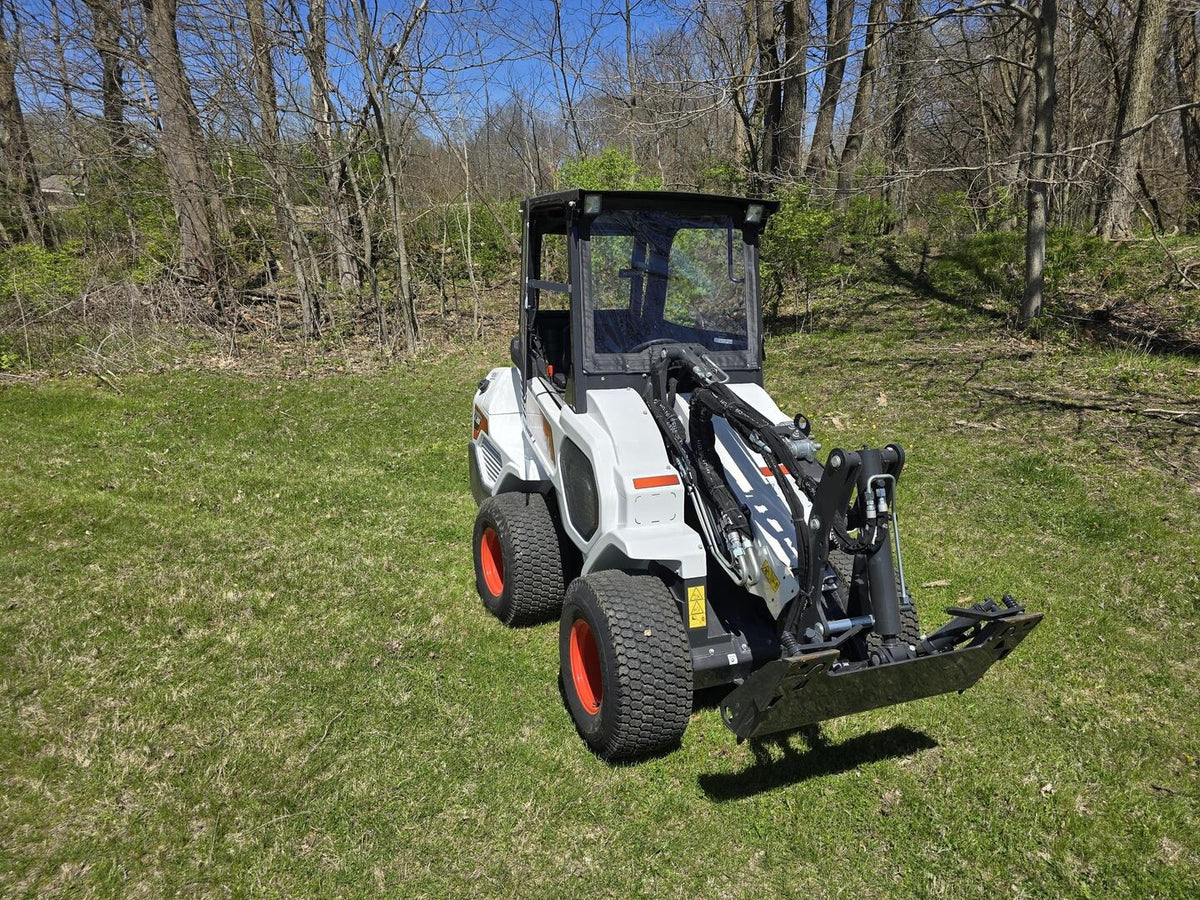

Original Tractor Cab 60570 for Bobcat L23 and L28 Loaders
The Bobcat L23 and L28 are made for jobs in small spaces.
However, rain, cold wind, and snow can make an open operator station less pleasant.
That is where Original Tractor Cab 60570 can help.
The enclosure surrounds much of the operator area with clear windows and black vinyl panels. As a result, it helps reduce direct exposure to bad weather while you work.
The cab also keeps a clear view around the loader. Therefore, you can still see the bucket, work area, and nearby objects.
Made to Fit the Bobcat L23 and L28
Fit is important on a compact machine.
For that reason, Cab 60570 is made for the Bobcat L23 and L28 small articulated loaders.
It is not a one-size-fits-all loader cab.
The enclosure uses model-specific frames, panels, latches, handles, and mounting hardware. Therefore, it fits the shape of the L23 and L28 operator area much better than a generic enclosure.
If you are unsure about fit, use the Original Tractor Cab contact page before you order.
Lightweight Cab Design
Original Tractor Cab lists the cab weight at about 27 pounds.
That light weight makes the enclosure easier to handle during installation and removal.
However, the low weight does not mean the cab should stay on during open transport.
Original Tractor Cab requires the vinyl panels to be removed before hauling the loader on an open truck or trailer.
Hinged Door for Easy Cab Access
Cab 60570 uses a hinged operator door.
That makes it easy to enter and leave the Bobcat loader.
The door has its own frame, skin, handle, latch, and magnetic hardware. In addition, the design helps keep the enclosure secure during normal loader use.
The door panel can also be removed when needed.
As a result, you can adapt the cab as the weather changes.
Opening Windows Add Ventilation
Cold days may call for more enclosure.
Warm days may call for more air.
For that reason, Cab 60570 uses windows that can open for ventilation.
The right-side window and rear window have their own frames and latches. Therefore, you can open parts of the enclosure when you need more airflow.
That makes the cab more useful through changing weather.
Hand-Operated Windshield Wiper
A wet windshield can reduce your view.
So, Cab 60570 includes a hand-operated windshield wiper.
The manual wiper gives the operator a simple way to clear moisture from the front windshield during wet weather.
Because the wiper does not need an electric motor, the system stays simple.
Clear forward vision is still important. Therefore, keep the windshield clean and follow the cleaning directions in the Original Tractor Cab manual.
You can find the Bobcat L23 and L28 Cab 60570 installation manual online.
Clear Windows for Loader Visibility
A small articulated loader works close to walls, plants, fences, trailers, and other objects.
So, visibility matters.
Cab 60570 uses clear plastic windows around the operator area.
The front windshield gives you a view toward the work tool. Meanwhile, the side and rear windows help you see around the loader.
Original Tractor Cab warns against cleaning the clear plastic when it is dry.
Instead, use clean running water and your hands. Liquid soap can also be used.
This simple care can help reduce scratches.
Cab 60570 for Cold Weather Work
The Bobcat L23 and L28 can work during many parts of the year.
Yet cold air and blowing snow can make winter loader work hard.
Cab 60570 helps create a barrier around the operator.
As a result, it can reduce direct exposure to cold wind, rain, sleet, and snow.
The enclosure is especially useful for property care, snow work, material handling, farm chores, landscaping, and grounds work.
Protection From Wind and Rain
Wind can make a cold day feel much worse.
Therefore, adding an enclosure can make loader work more pleasant.
The windshield helps block weather from the front. Meanwhile, the door, right-side panel, and rear panel add coverage around the operator.
This is not a sealed automotive cab.
Still, it gives much more foul-weather coverage than a fully open operator area.
Removable Panels for Changing Weather
Weather does not stay the same all year.
So, Cab 60570 uses removable vinyl panels.
You can remove sections when you want a more open operator area.
In addition, the door and rear panels must be removed for open-truck or trailer transport.
Always follow the Original Tractor Cab installation and transport instructions.
Bobcat L23 and L28 Cab Installation
Correct installation helps the cab work as intended.
Start by parking the machine on level ground. Then, remove the start key before beginning work.
Cab 60570 uses a door frame, rear window frame, right-side window frame, windshield frame, aluminum handles, latches, magnets, and mounting hardware.
Read the complete manual before installation.
You can also visit our Original Tractor Cab installation manuals page for other product instructions.
Check Cab Hardware Before Use
Outdoor equipment creates vibration.
Therefore, check the cab hardware from time to time.
Original Tractor Cab instructs owners to inspect bolts and keep them tight.
Door latches and hinges should also receive light machine oil when needed.
This basic care can help the cab parts work as intended.
Remove Vinyl Panels Before Open Transport
Never transport the Bobcat L23 or L28 on an open truck or trailer with the vinyl panels installed.
Original Tractor Cab states that the vinyl panels must be removed before open transport.
Road-speed wind can place much more force on an enclosure than normal loader work.
Therefore, remove the panels before hauling the machine.
This step helps protect the cab and reduces the chance of damage.
Bobcat L23 Small Articulated Loader Specifications
The Bobcat L23 is a compact small articulated loader made for tight spaces and turf-sensitive work.
For current factory information, visit the official Bobcat L23 product page.
The current L23 uses a 24.8-horsepower diesel engine.
Bobcat lists an articulated rated operating capacity of 1,159 pounds and a straight rated operating capacity of 1,395 pounds.
Operating weight is about 3,790 pounds.
The machine is only about 43.2 inches wide over the tires. Therefore, it can work in many narrow areas where a larger loader may not fit.
Bobcat L23 Hydraulic System
The current L23 has standard auxiliary hydraulic flow of 11.4 gallons per minute.
Bobcat lists system relief at the quick couplers at 2,900 psi.
That hydraulic system supports a wide range of compatible loader attachments.
As a result, the L23 can handle many grounds, property, and material jobs.
Bobcat L23 Speed and Fuel Capacity
Bobcat lists a top travel speed of about 8.2 mph.
Fuel tank capacity is 9.6 gallons.
Therefore, the L23 can spend a good part of the day working before fuel becomes a concern.
Long work days can also mean more time in cold or wet weather.
That is one reason an aftermarket enclosure can be useful.
Bobcat L23 Dimensions
The L23 measures about 93.2 inches long without an attachment.
With the standard bucket, length is about 122.4 inches.
Ground clearance is 5.5 inches, while the wheelbase measures 47.2 inches.
The articulation angle is 43 degrees.
This compact layout helps the loader turn in tight spaces.
Bobcat L28 Small Articulated Loader Specifications
The Bobcat L28 adds more lift and reach while keeping a compact articulated design.
For current factory specs, see the official Bobcat L28 product page.
Like the L23, the L28 uses a 24.8-horsepower diesel engine.
However, the L28 adds a telescoping lift arm.
That extra reach makes the machine useful for loading, stacking, landscaping, and material work.
Bobcat L28 Lift Capacity
Bobcat lists the L28 straight rated operating capacity at 1,534 pounds.
The articulated rated operating capacity is 1,222 pounds.
With an optional counterweight, the straight rated operating capacity can rise to 1,952 pounds.
That gives the L28 strong lift performance in a small machine.
Bobcat L28 Reach and Lift Height
The telescoping arm is one of the main differences between the L23 and L28.
Bobcat lists maximum reach at about 44.6 inches.
The bucket hinge pin can reach about 104.4 inches when the lift arm is extended.
As a result, the L28 can reach farther than the L23.
Bobcat L28 Size and Weight
The L28 weighs about 4,195 pounds.
Width over the tires is about 46.5 inches.
Travel speed is about 8.3 mph.
Fuel tank capacity is 9.6 gallons, while auxiliary hydraulic flow is 11.4 gallons per minute.
Despite the added lift and reach, the L28 still keeps a compact footprint.
Why Bobcat L23 and L28 Loaders Work Well in Tight Areas
Bobcat designed its small articulated loaders for work where space matters.
The articulation joint allows the rear tires to follow a path close to the front tires.
Therefore, the machine can turn around objects with less ground disturbance.
The L23 is about 43.2 inches wide. Meanwhile, the L28 is about 46.5 inches wide.
That size makes them useful in backyards, fenced areas, landscaping jobs, barns, farms, and other tight work zones.
Cab 60570 adds foul-weather coverage without changing the basic work style of these compact loaders.
Attachment Versatility
Bobcat offers many attachment choices for small articulated loaders.
Buckets can handle soil, gravel, mulch, and other loose material.
Other attachments can help with sweeping, digging, snow work, and grounds care.
Therefore, owners may use the L23 or L28 during many seasons.
You can learn more from Bobcat's small articulated loader attachment information.
Because the loader can work year-round, weather protection can become more useful as the seasons change.
Why Buy Cab 60570 Direct From Original Tractor Cab?
When you buy direct from Original Tractor Cab, you buy from the company that makes the enclosure.
That gives you direct access to product information.
In addition, you can get help with fit, installation, replacement items, and product use.
Farm & Trail also lists Original Tractor Cab part OT-60570 as the Bobcat L28 and L23 enclosure, which supports the part number and equipment fit.
However, buying direct gives you a straight path to the manufacturer.
You can also browse our Original Tractor Cab Bobcat collection for other Bobcat cabs and sunshades.
The History of Original Tractor Cab Company
Original Tractor Cab Co., Inc. traces its history to 1939.
At that time, farmer Stanley Williams saw a problem on his farm.
Tractor operators needed better protection from the weather.
So, Stanley made a solution.
He designed the first prototype that would lead to Original Tractor Cab.
Other farmers soon saw value in the idea. Therefore, demand began to grow.
A simple farm solution became the start of an American manufacturing company.
Born From a Need on the Farm
Stanley Williams understood outdoor work because he lived it.
Rain, cold, wind, snow, and sun were all part of farm life.
Therefore, better operator coverage had real value.
Other farmers wanted similar products.
As a result, the young company began to grow.
Original Tractor Cab During World War II
World War II changed the company's normal work.
Production of tractor cabs stopped.
Instead, Original Tractor Cab shifted manufacturing to support the military.
The company made backpacks and other needed items during the war.
Afterward, Original Tractor Cab returned to products for people who work with outdoor equipment.
Three Generations of American Manufacturing
Today, Stanley Williams' legacy continues through three generations.
Original Tractor Cab now makes much more than its early tractor enclosure.
Our products include cab enclosures, mower sunshades, tractor sunshades, snow equipment cabs, and accessories for lawn and garden equipment.
Still, the main idea remains simple.
We make useful products for people who work outdoors.
Bobcat Cab 60570 carries that idea into the small articulated loader market.
It gives owners of compatible Bobcat L23 and L28 machines a practical way to add foul-weather protection around the operator.
Frequently Asked Questions About Bobcat Cab 60570
Does Cab 60570 fit the Bobcat L23?
Yes. Original Tractor Cab lists Cab 60570 for the Bobcat L23 small articulated loader.
Does Cab 60570 fit the Bobcat L28?
Yes. Original Tractor Cab also lists Cab 60570 for the Bobcat L28.
How much does the Bobcat cab weigh?
Original Tractor Cab lists the enclosure at about 27 pounds.
Does Cab 60570 have a door?
Yes. The enclosure includes a hinged operator door.
Do the windows open?
Yes. The cab has opening windows that can provide ventilation.
Does Cab 60570 have a windshield wiper?
Yes. The cab includes a hand-operated windshield wiper.
Can the cab panels be removed?
Yes. The door and rear panels can be removed. In addition, Original Tractor Cab requires the vinyl panels to be removed before transporting the loader on an open truck or trailer.
Does the cab protect the operator in a rollover?
No. Cab 60570 is designed for foul-weather protection only. It does not provide rollover, collision, or accident protection.
Is this a genuine Bobcat factory cab?
No. Cab 60570 is an aftermarket enclosure made by Original Tractor Cab Co., Inc.
Does Cab 60570 have a warranty?
Original Tractor Cab's cab warranty states a one-year warranty period for tractor and snow-removal equipment cabs.
California Proposition 65 Notice
California Proposition 65 requires warnings when a product can expose a person to chemicals that California lists as causing cancer, birth defects, or other reproductive harm.
If Proposition 65 applies to Cab 60570 based on its materials and expected exposure, the product page should display the current product-specific California warning before purchase. Any warning required on or with the delivered product should also be supplied.
For more information, visit www.P65Warnings.ca.gov.
This general notice does not replace a product-specific safe-harbor warning when one is required.
Important Non-OEM and Liability Disclaimer
This is an aftermarket product produced by Original Tractor Cab Co., Inc. It is not a genuine Bobcat OEM cab or factory-installed Bobcat operator enclosure.
Bobcat L23 and L28 Cab 60570 is designed to provide foul-weather protection from conditions such as rain, snow, sleet, cold wind, and overhead weather exposure. It does not provide protection from noise, exhaust fumes, chemicals, rollover, collision, falling objects, debris, or other accidents. It is not a ROPS, FOPS, rollover protection device, falling-object protection device, collision protection system, or substitute for factory safety equipment.
Never alter, drill, cut, weld, remove, bypass, or defeat the Bobcat ROPS/FOPS, seat belt, operator interlock system, guards, shields, or other factory safety equipment to install or use this cab.
Install Cab 60570 only as directed by Original Tractor Cab. In addition, follow all Bobcat operating instructions, safety warnings, and maintenance requirements. Remove the vinyl panels before transporting the machine on an open truck or trailer. The operator remains responsible for safe machine operation, correct installation, adequate overhead clearance, hardware inspection, ventilation, and confirmation that the enclosure is compatible with the loader before use.
Share
