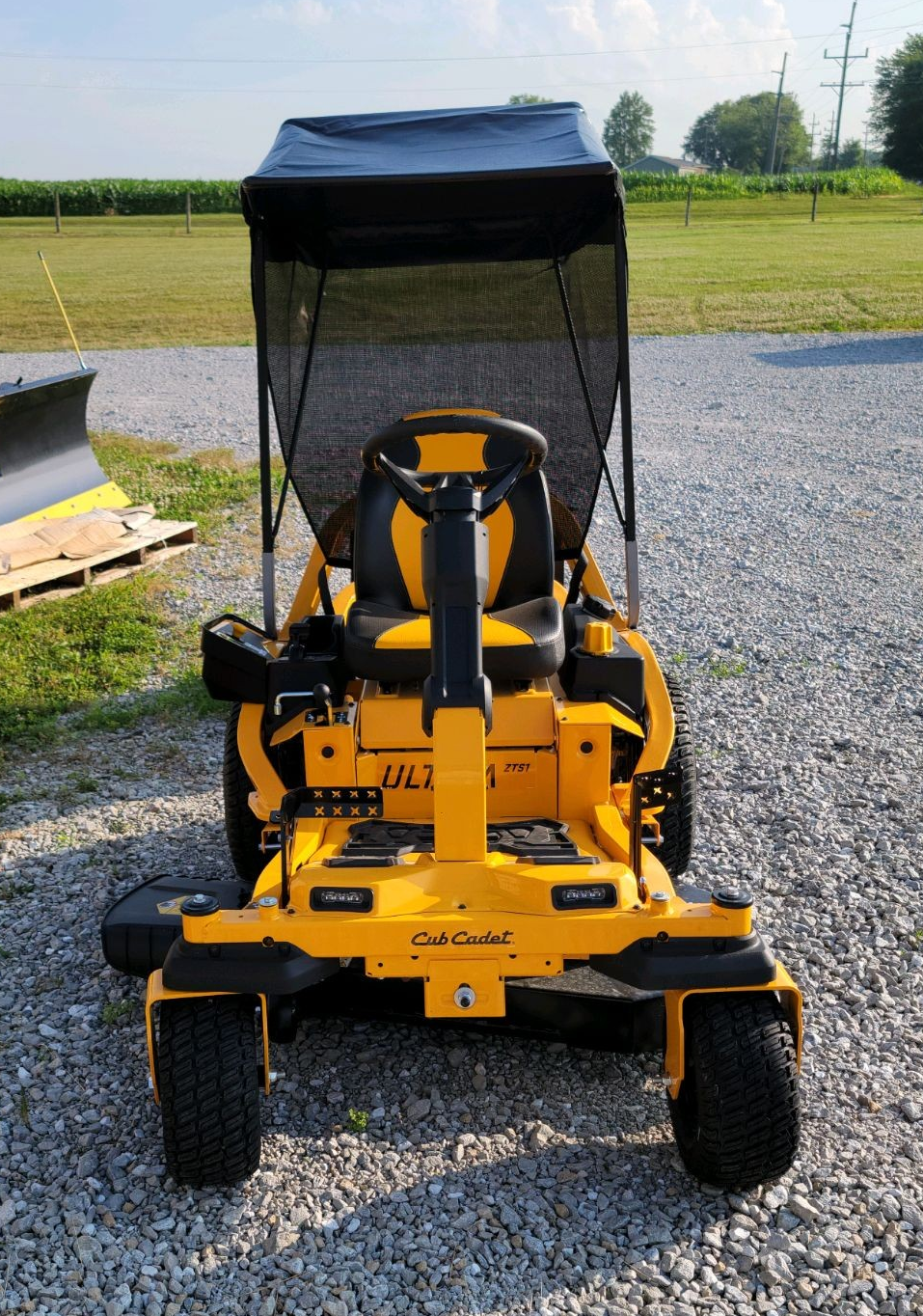

Cub Cadet Ultima Series ZT and ZTS Sunshade 30588
Stay cool while you mow with Original Tractor Cab Sunshade 30588. This model-fit canopy adds overhead shade to select Cub Cadet Ultima Series zero-turn mowers. It fits listed ZT1, ZTS1, ZT2, ZTS2, and ZT3 models. Thus, warm lawn work can feel much better.
The open canopy helps keep direct sun off the operator. Plus, open sides let fresh air move near the mower seat. You can still keep a broad view of the lawn and work path.
Original Tractor Cab makes Sunshade 30588 in the USA. Its mounting system was made for the listed Ultima mower frames. For more fit options, view our full range of Cub Cadet mower sunshades and enclosures.
Cool Shade for Long Mowing Jobs
Hot sun can make a short mow feel long. Heat may also add stress and slow your pace. Therefore, a sunshade can add real comfort from the first pass to the last.
The canopy forms shade above the mower seat. Meanwhile, the open sides let heat move away from the operator. As a result, you gain shade without the closed feel of a full cab.
Sun angles change through the day. So, the shaded area will move with the time, slope, and travel path. Wear sun-safe clothes and use skin care when needed since an open canopy cannot block every ray.
Open-Air Mower Canopy
An open design keeps the sides free of doors or clear panels. This layout makes entry simple and lets air flow near the seat. Plus, it helps the operator watch trees, beds, walls, and other lawn sites.
The top may help shed light drops from above. However, Sunshade 30588 is not a full cab or rain enclosure. Rain, wind, snow, sleet, and hail can still reach the operator through the open sides.
Stop mowing when a storm makes the job unsafe. Also, leave the mower if you see lightning or face high wind. A sunshade must never serve as storm cover.
Model-Fit Mounting System
Sunshade 30588 fits a set list of Cub Cadet Ultima mower frames. Its mounts place the canopy over the work area without a ROPS. Thus, it differs from a shade made for a roll bar.
Deck width alone does not prove fit. The mower family, trim level, year, seat, and frame all matter. Therefore, confirm the full model name and factory number before purchase.
Clear Sight Around the Mower
A wide view is vital on a zero-turn mower. The open sides let you check the deck path and nearby space. Still, the canopy adds height above the seat.
Watch for low limbs, shed doors, and other fixed items. Slow down before you pass below any low site. Stop and inspect the shade after a strike.
Cub Cadet Sunshade 30588 Fit Guide
Sunshade 30588 fits only the listed Cub Cadet Ultima models. It fits select ZT1, ZTS1, ZT2, ZTS2, and ZT3 mowers. It does not fit the Ultima ZTX family with ROPS.
Product names can look much the same. Yet small frame changes can affect the mounts. If the mower is not on the list below, please contact Original Tractor Cab.
Cub Cadet ZT1 Models That Fit
Sunshade 30588 fits the Cub Cadet Ultima ZT1 42, ZT1 42E, ZT1 46, ZT1 50, and ZT1 54. These models use lap-bar steering, except that the 42E uses electric drive and electric deck motors.
The number in each model name shows its listed cut width in inches. Therefore, the ZT1 group in this fit list covers 42-inch through 54-inch decks. Confirm both the ZT1 name and deck size.
Cub Cadet ZTS1 Models That Fit
The shade fits the Cub Cadet Ultima ZTS1 42, ZTS1 46, and ZTS1 50. ZTS models use a steering wheel with Cub Cadet Synchro-Steer control. This system manages the front wheels and rear drive for tight turns.
Do not confuse a ZTS1 with a ZT1. Although both belong to the Ultima line, their steering and frame details differ. Always use the full model name.
Cub Cadet ZT2 Models That Fit
Sunshade 30588 fits the Cub Cadet Ultima ZT2 50, ZT2 54, and ZT2 60. The ZT2 line uses lap-bar control and dual hydrostatic drive. Wider tires and added comfort features may vary by model year.
Deck sizes in this group range from 50 through 60 inches. A wide deck can cut a large yard in fewer passes. Yet it also needs more storage and gate space.
Cub Cadet ZTS2 Models That Fit
The shade fits the Cub Cadet Ultima ZTS2 50, ZTS2 54, and ZTS2 60. These steering-wheel models use Synchro-Steer technology. Thus, the front wheels help control the mower during tight turns.
Exact engine and tire details change with deck size and production year. Therefore, use the factory model number when you seek service parts. Do not rely on the ZTS2 name alone.
Cub Cadet ZT3 Model That Fits
Sunshade 30588 fits the Cub Cadet Ultima ZT3 60. This large-deck model uses lap-bar steering and a 60-inch cutting path. Its broad deck suits large lawns and open sites.
A 60-inch mower still needs safe room near trees, gates, and walls. The canopy adds height but does not change deck width. Check both limits before entering a tight site.
Does Not Fit Ultima ZTX ROPS Models
Do not install Sunshade 30588 on a Cub Cadet Ultima ZTX with ROPS. Those mowers use a roll bar and need a shade made for the correct ROPS size. The 30588 mounts were not made for that setup.
Never drill, cut, bend, or remove a ROPS to fit this shade. A ROPS is a key safety part. Changing it can create a severe rollover risk.
Does Not Fit Every Ultima Mower
Cub Cadet has added new Ultima model names over time. A newer Z, ZS, ZTX, or ZTXS mower does not gain fit just because it looks like a listed model. Confirm the exact product list before ordering.
Added seats, baggers, lights, racks, and other gear may also affect fit. Inspect the full mower setup. Then, compare it with the installation guide.
Sunshade Installation
Read the full guide before you begin. First, sort the mounting parts and hardware. Then, place each part on the mower as shown.
Keep all fasteners a bit loose during the first fit. Next, align the frame and canopy over the seat. Tighten each mount only after every part sits in the right place.
Installation time will vary with tools, skill, and mower condition. For setup help, see our sunshade installation manuals.
Check the Seat and Controls
Move the seat through its full range after installation. Also, check the lap bars or steering wheel, deck control, parking brake, and pedals. No shade part should block normal use.
Sit in the usual mowing pose during the final check. Then, make sure your head and arms have enough room. Stop the engine before making any change.
Measure the Installed Mower
The canopy adds height above the operator. Therefore, measure the full mower after installation. Check all shed doors, trailers, limbs, and low roofs before use.
A hard strike may harm both the shade and mower. Stop at once if the canopy hits an object. Inspect every mount before you mow again.
Sunshade Care and Storage
Clean the canopy with mild soap, cool water, and a soft cloth. After that, rinse it well and let it air dry. Strong cleaners may harm the top or finish.
Keep fuel, oil, and hot exhaust away from the shade. Also, remove any spill at once. Never place a loose cloth near the engine or drive belts.
Inspect Before Each Mow
Check the canopy and all mounts before starting the engine. Look for loose hardware, worn parts, or tears. Fix any fault before use.
Vibration may loosen a fastener over time. Therefore, follow the guide’s inspection and tightening plan. Use the right tool and torque if one is listed.
Store the Shade in a Dry Place
Indoor storage can help protect the canopy from wind and long sun exposure. It also keeps water from sitting on the top. So, store the mower under a sound roof when possible.
Clean and dry the shade before long storage. If you remove it, keep all hardware in a marked container. Support the frame so it cannot bend.
Open-Trailer Transport
Road speed can place a large load on the canopy. Do not haul the mower on an open trailer with the shade in place unless the product guide allows it. Road wind is far stronger than normal mower travel.
Never use the canopy as a tie-down point. Secure the mower through approved frame points. Browse our cab and sunshade accessories for current care options.
Cub Cadet Ultima Series Specifications
The Cub Cadet Ultima Series includes several zero-turn mower groups. ZT models use lap-bar control, while ZTS models use a steering wheel. Engine, deck, drive, speed, and tire details vary by model.
Listed Sunshade 30588 applications cover electric and gas mowers. Deck widths range from 42 through 60 inches. Therefore, owners should use the exact mower name when they check specs or parts.
Cub Cadet ZT1 Specifications
ZT1 models use lap-bar steering and dual drive units. Gas versions offer deck widths of 42, 46, 50, and 54 inches in this fit group. Engine output varies with the model and year.
Many ZT1 mowers use a fabricated AeroForce deck. Dual hydrostatic transmissions provide forward and reverse travel. Common top speed is near 7 mph on listed gas models.
Cub Cadet ZT1 42E Specifications
The ZT1 42E uses battery power instead of a gas engine. Electric motors drive the mower and blades. Thus, it does not need gas, engine oil, or a spark plug.
A 42-inch deck gives the mower a compact cut path. Battery run time changes with grass, speed, blade load, and ground. Follow the charging and storage guide for safe battery care.
Cub Cadet ZTS1 Specifications
ZTS1 models use a steering wheel and Synchro-Steer technology. The system gives four-wheel control for a zero-turn-style mower. Listed Sunshade 30588 applications have 42-inch, 46-inch, or 50-inch decks.
Current ZTS1 42 and ZTS1 46 models list 22-horsepower gas engines. The ZTS1 50 lists a 24-horsepower engine in current data. However, engine brand and output may change by model year.
Cub Cadet ZTS1 Steering and Slope Control
Synchro-Steer links the steering wheel with the drive system. Front-wheel control can help the mower hold a line on varied ground. Cub Cadet lists certain ZTS models for slopes up to 20 degrees under stated conditions.
That figure is not safe for every yard. Wet grass, holes, loose soil, drop-offs, and added gear can raise risk. Always follow the limit in the exact mower manual.
Cub Cadet ZT2 Specifications
ZT2 models use lap-bar steering and dual hydrostatic drive. Listed shade applications have 50-inch, 54-inch, or 60-inch decks. The ZT2 line adds larger tires and other upgrades over many ZT1 models.
Engine power depends on deck size and model year. Many versions use a twin-cylinder gas engine. A fabricated deck helps support work on large lawns.
Cub Cadet ZTS2 Specifications
ZTS2 models pair ZT2-style equipment with a steering wheel and Synchro-Steer control. Listed models use 50-inch, 54-inch, or 60-inch decks. Current ZTS2 50 data lists a 24-horsepower gas engine.
Dual hydrostatic transmissions manage travel. Common forward speed reaches about 7 mph, while reverse speed may reach 3.5 mph. Ground conditions often call for a slower safe pace.
Cub Cadet ZT3 60 Specifications
The listed ZT3 uses a 60-inch fabricated mower deck. Its lap bars control the dual hydrostatic drive. This large cut path suits broad lawns and open areas.
Exact engine, tire, and speed facts depend on production year. Use the factory model number when ordering blades, belts, filters, or drive parts. Never assume all ZT3 60 versions use the same parts.
AeroForce Fabricated Mower Decks
Many Ultima models use an AeroForce fabricated deck. The deep shell helps move grass and spread clippings. A welded steel build also adds strength.
Sharp blades remain vital for a clean cut. Stop the engine before checking the deck. Then, remove the key and wait for every part to stop.
Dual Hydrostatic Transmissions
Most gas-powered Ultima mowers use a drive unit for each rear wheel. The controls can vary rear wheel speed during a turn. As a result, the mower can turn in a small space.
Check the controls before each job. Never use a mower that creeps, pulls hard to one side, or fails to stop. Follow the maker’s service and adjustment rules.
Engine and Fuel Care
Use the fuel and oil named in the mower guide. Also, check the oil level before each use. A clean air filter helps the engine work well in dusty sites.
Dry grass near the engine can hold heat. Therefore, clean the cooling area after the engine cools. Keep the shade and all loose items away from the muffler.
Zero-Turn Mower Safety
Slow down before each turn. Fast turns can harm the lawn and reduce control. Also, keep clear of ponds, drop-offs, and steep banks.
Never carry a rider. Keep children and pets out of the work site. Stop the blades before crossing gravel or leaving the lawn.
For official lap-bar mower details, review the Cub Cadet Ultima ZT1 54 page. For steering-wheel model data, visit the Cub Cadet Ultima ZTS2 50 page.
Why Buy Direct from Original Tractor Cab?
Direct sales give you one source for shade fit, guides, and product help. You can shop by mower family and deck width instead of trying to adapt a loose canopy. As a result, choosing the right shade becomes easier.
Small fit details still matter. Model name, deck size, steering type, ROPS, seat, and added gear can change the correct choice. So, inspect the mower before you order Sunshade 30588.
The History of Original Tractor Cab Company
Original Tractor Cab began in 1939. At that time, Indiana farmer Stanley Williams needed a way to stay warm and dry on his tractor. So, he built a cab for his own use.
Other farmers soon saw the value of his idea. Williams then placed a small ad in a farm magazine. The strong reply helped turn one farm-built cab into a family business.
World War II brought a change in work. During the war, normal cab output stopped as the company made backpacks and other needed goods for the armed forces. Later, the firm began to make tractor cabs again.
New products came as farm and lawn tools changed. Hardtop cabs, soft enclosures, sunshades, and useful cab parts joined the line. Yet the main goal stayed much the same: help operators work with more cover from the weather.
Today, Original Tractor Cab works in Arlington, Indiana. The company still values useful design, family roots, and American-made products. Read more on the Original Tractor Cab history page.
Cub Cadet Ultima Sunshade Questions
Which Cub Cadet mowers fit Sunshade 30588?
The shade fits listed Cub Cadet ZT1, ZTS1, ZT2, ZTS2, and ZT3 models. Deck sizes range from 42 through 60 inches. Confirm the full fit list before purchase.
Does Sunshade 30588 fit the electric ZT1 42E?
Yes. The product fit list includes the Cub Cadet ZT1 42E. Check the full mower model and frame before installation.
Does this shade fit Ultima ZTX mowers?
No. Sunshade 30588 does not fit Ultima ZTX ROPS models. Never alter or remove a ROPS to install this canopy.
Is Sunshade 30588 a full weather cab?
No. It is an open sun canopy. The top does not enclose the operator or provide full protection from rain, wind, snow, sleet, or hail.
Can the shade protect me during a rollover?
No. The sunshade is not a ROPS, FOPS, rollover bar, or safety enclosure. It cannot protect the operator from rollover, impact, falling objects, or flying debris.
Where is Sunshade 30588 made?
Original Tractor Cab makes Sunshade 30588 in the United States.
Product and Safety Disclaimers
Non-OEM and Liability Disclaimer
This is an aftermarket product made by Original Tractor Cab Co., Inc. It is not a genuine Cub Cadet or MTD OEM item. Cub Cadet and MTD Products do not make, sponsor, approve, or endorse it. Cub Cadet, Ultima, ZT1, ZTS1, ZT2, ZTS2, ZT3, ZTX, and all model names belong to their respective owners and identify product fit only. This sunshade helps reduce direct exposure to sun from above. It does not protect the operator from rollover, collision, lightning, hail, falling limbs, thrown objects, or flying debris. The shade is not a ROPS, FOPS, weather cab, or certified safety enclosure. Never remove, cut, drill, weld, or alter a mower ROPS to install this shade. Do not use the canopy as a handhold or tie-down point. Confirm the mower model, factory number, deck size, steering type, ROPS status, fit, height, and safe control use before installation. Read and follow all shade, mower, battery, engine, deck, and attachment instructions.
California Proposition 65 Warning
WARNING: This product can expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.
