John Deere 1023E and 1025R Forward ROPS Hardtop Cab 12110

Work through cold wind, rain, sleet, and snow with Original Tractor Cab 12110. This hardtop cab fits 2018 through 2024 John Deere 1023E and 1025R tractors with a forward-leaning ROPS. Clear windows give you a wide view of the work site. Thus, bad weather does not have to end your day.

A strong steel frame supports the full enclosure. Plus, a molded ABS roof adds firm cover above the seat. Hinged doors on both sides make entry fast and simple.

Original Tractor Cab makes Cab 12110 in the USA. Its model-fit design uses existing tractor mounting points, so no drilling is needed. For more fit options, view our full range of John Deere hardtop tractor cabs.

All-Season Weather Protection for Your John Deere 1 Series

An open tractor puts you in direct contact with the weather. Cold wind can make snow work feel harsh. Rain may also soak your clothes, seat, and controls. Therefore, a full cab can add real value in every wet or cold season.

Cab 12110 surrounds the operator with a hard roof, clear windows, and tough fabric panels. The enclosure helps block wind, rain, snow, and sleet. As a result, long jobs may feel less harsh.

This cab does not heat or cool the air by itself. However, it helps keep direct wind and wet weather away from the seat. A small approved heater may add warmth when it is installed and used as directed.

Strong 16-Gauge Steel Tube Frame

A 16-gauge steel tube frame forms the base of the cab. This firm frame supports the roof, doors, and clear panels. Yet the complete cab weighs only about 70 pounds.

The lightweight design makes seasonal use more practical. Still, safe lifting help may be needed during setup. Follow the installation guide and keep your hands clear of frame joints.

Check every frame mount before each job. Also, look for loose bolts or damage after contact with a limb. Stop work and fix any fault before you use the tractor again.

Molded ABS Hardtop with UV Inhibitor

A molded ABS plastic top covers the operator. The roof includes a UV inhibitor for added outdoor life and a clean look. Thus, it helps guard the seat from sun, rain, and falling snow.

Clear heavy snow from the roof before storage. Wet snow can add a large load. Therefore, do not let deep snow remain on the cab.

Tough Rip-Stop Vinyl Cab Panels

Lightweight rip-stop vinyl covers the steel frame. The fabric resists abrasion, water, flame, mildew, and rot during normal use. As a result, it can stand up to common winter and yard work.

No fabric cab is free from wear. Sharp limbs, rough walls, and loose tools can cut a panel. So, inspect the enclosure often and repair damage before it spreads.

Clear Shatter-Resistant Polycarbonate Windows

Clear, non-puckering polycarbonate forms the standard windshield, door windows, and rear window. This shatter-resistant material can remain useful in subzero weather without normal cold cracking. Plus, it keeps the cab bright and easy to see through.

A wide view matters near cars, barns, fences, and other tools. Clean every window before moving the tractor. Never drive if frost, snow, mist, or dirt blocks your view.

Forward-Leaning Windshield

The windshield leans toward the front of the tractor. This angle helps cut glare and limits direct contact with falling rain or snow. Thus, the operator gains a clearer view during bad weather.

Still, wet snow and mist may build on the front panel. An optional glass windshield and wiper can help keep the view clear. Stop the tractor if you cannot see the full work path.

Hinged Doors on Both Sides

Hinged doors make it easy to enter or leave the cab. Each side has a latch that helps hold the door shut. In addition, two doors give you more than one path to the seat.

Check both latches before use. Then, make sure each door clears the tractor controls. Stop work if a hinge, latch, or door becomes loose.

Cab 12110 Fit Guide

Cab 12110 fits the 2018 through 2024 John Deere 1023E and 1025R with a forward-leaning ROPS. It does not fit older tractors with a straight ROPS. Also, it does not fit the redesigned 2025 and newer ROPS setup.

Do not choose a cab by tractor model alone. ROPS shape and model year both matter. Therefore, check the year, serial number, and roll-bar shape before purchase.

Fits the 2018–2024 John Deere 1023E

The 12110 cab fits a 2018 through 2024 John Deere 1023E with the listed forward ROPS. This small tractor works well for mowing, loader jobs, snow care, and land tasks. A cab can add comfort through many of those jobs.

Fits the 2018–2024 John Deere 1025R

Cab 12110 also fits a 2018 through 2024 John Deere 1025R with the correct forward-leaning ROPS. The 1025R offers diesel power in a small tractor form. Thus, it can work in tight yards while still using a loader, mower, or rear tool.

Does Not Fit a Straight ROPS

Older 1 Series tractors may have a straight ROPS. Cab 12110 does not fit that design. Instead, those tractors need the cab made for the straight roll bar.

Stand beside the tractor and view the ROPS uprights. A forward ROPS angles toward the front as it rises. By contrast, a straight ROPS rises with little or no forward lean.

Does Not Fit 2025 and Newer Models

John Deere changed the 1 Series ROPS setup again for model year 2025. Therefore, Cab 12110 is not the correct cab for 2025 and newer tractors. Those models need the newer cab made for that frame.

Production dates and model years can differ. So, use the tractor serial number instead of the purchase date alone. If fit is not clear, please contact Original Tractor Cab.

No-Drill Cab Installation

Cab 12110 mounts through existing tractor holes and hardware points. Thus, normal installation does not require drilling into the tractor. Never drill, cut, weld, or alter the ROPS.

Plan on less than four hours for the first installation. Many owners may need about three to four hours. Still, the exact time will depend on tools, skill, tractor condition, and added gear.

Read the full guide before you start. First, sort the frame parts and hardware. Then, follow our tractor cab installation manuals in the listed order.

Align the Frame Before Final Tightening

Keep each fastener a bit loose during the first fit. Next, align the frame, doors, windows, and roof. Tighten the full unit only after all parts sit in the right place.

Added lights, seats, controls, or custom parts may affect fit. Therefore, check the tractor before you begin. Remove or move only the parts allowed by the tractor and cab guides.

Check All Tractor Controls

Move each control through its full safe range after installation. Also, check the steering wheel, pedals, PTO control, hitch lever, and loader joystick. No cab part should block safe control use.

Sit in the normal driving pose during the final check. Then, make sure your head, arms, and legs have safe space. Stop the engine before making any cab change.

Installed Height and Cab Weight

The final tractor height is about 78 to 80 inches at the cab roof. Tires, tread, wear, air pressure, and tractor setup can change this figure. Therefore, measure your tractor after installation.

The cab weighs about 70 pounds. Yet its size may make parts hard for one person to hold. Use safe lifting help as directed during roof and frame setup.

Optional Glass, Wiper, Light, and Mirror Kits

Cab 12110 can accept select options for added sight and ease. Available parts may include a safety-glass windshield, electric wiper, mirrors, work lights, fuse panel, and warning light. Product fit and stock may change.

Safety-Glass Windshield

The standard windshield uses clear polycarbonate. However, the optional safety-glass windshield adds a firm glass panel at the front. It can also support a compatible electric wiper.

Use only the glass made for the correct cab series. Check all seals and mounts after installation. A loose glass panel can create a serious risk.

Electric Wiper Kit

The electric wiper requires the optional safety-glass windshield. It can help clear rain, mist, and wet snow from the front view. Thus, work in wet weather may become easier.

Never attach the glass-only wiper to the standard plastic windshield. Also, keep all wires clear of heat and moving parts. Use the correct switch and fuse setup.

Work Lights and Mirrors

LED work lights can add sight before dawn or after dark. Side and rear mirrors can also help you check nearby space. Yet no light or mirror replaces a direct view of the site.

Use only approved mounts and electrical parts. Keep wires away from the engine, exhaust, sharp edges, and PTO. Browse our tractor cab accessories for current options.

Seasonal Cab Care

Inspect the cab before each use. Look for loose hardware, torn fabric, worn straps, or damaged latches. Also, make sure the roof and frame remain firm.

Clean clear windows with mild soap, cool water, and a soft cloth. First, rinse away dust and grit. Then, wipe the panel with light pressure.

Strong cleaners may cloud or harm the clear material. Rough towels can also leave scratches. Therefore, test any care product in a small spot first.

Seasonal Removal and Reassembly

The cab can be removed when warm weather returns. Careful removal also makes later setup easier. Mark the parts and store the hardware in a dry place.

Keep clear panels flat or supported as the guide directs. Also, store the fabric away from sharp edges and heat. Clean and dry all parts before long storage.

Open-Trailer Transport

High road speed can damage cab doors and fabric panels. Do not haul the tractor on an open trailer with the cab in place unless you use an approved transport cover and follow its guide. Road wind is far stronger than normal tractor travel.

Measure the full loaded height before transport. In addition, secure the tractor with legal tie-down points. Never use the cab frame as a tie-down.

John Deere 1023E and 1025R Specifications

The John Deere 1023E and 1025R are sub-compact utility tractors. Both use a liquid-cooled, three-cylinder Yanmar diesel engine. Their small form suits mowing, loader work, snow removal, garden care, and light land jobs.

A two-range hydrostatic transmission gives smooth travel control. Separate pedals control forward and reverse motion. Plus, four-wheel drive helps on loose soil, snow, and wet grass.

John Deere 1023E Engine and PTO

The John Deere 1023E uses a 22.4-horsepower diesel engine. Rated engine speed is 3,200 rpm. Its rear PTO provides about 14.5 horsepower.

The engine uses liquid cooling and glow plugs for cold starts. A dry air cleaner helps guard the engine from dust. Meanwhile, the fuel tank holds about 5.6 U.S. gallons.

John Deere 1025R Engine and PTO

The John Deere 1025R uses a 24.2-horsepower diesel engine. Engine size is about 77 cubic inches, or 1.267 liters. Its rear PTO provides about 18 horsepower.

Liquid cooling helps control engine heat. Glow plugs aid cold-weather starts. In addition, a horizontal exhaust path keeps fumes low and away from the work view.

Hydrostatic Drive and Four-Wheel Drive

Both tractors use a two-range hydrostatic transmission. Low range suits slow work and heavy loads. By contrast, high range serves faster travel on a clear path.

Twin foot pedals control forward and reverse travel. A differential lock can help when a rear wheel slips. Also, mechanical four-wheel drive adds grip when the site is loose or slick.

Use four-wheel drive as the tractor guide directs. Never rely on added grip to make a steep slope safe. Slow down and avoid ground that exceeds the maker’s limits.

Three-Point Hitch and Rear PTO

A limited Category 1 three-point hitch serves many small rear tools. Owners can use listed blades, spreaders, tillers, and other gear. Still, weight and fit limits vary by tool.

The rear PTO turns at 540 rpm for compatible equipment. Stop the engine before you approach a PTO shaft. The cab does not change any PTO safety rule.

Mid PTO and Mower Decks

A mid PTO can drive a compatible mower deck or front tool. John Deere offered drive-over mower decks for these tractors. Deck fit varies by model year and lift system.

Check deck and cab clearance after installation. Also, move each lift control through its safe range. No frame or fabric panel should touch a moving part.

Front Loader Use

Compatible front loaders turn the 1023E and 1025R into useful material-handling tractors. Loader lift height and capacity depend on the loader, bucket, tires, and setup. Proper rear ballast remains vital.

The cab’s clear panels help the operator watch the loader and work site. Still, a raised bucket can block the view. Keep loads low during travel and follow every loader rule.

Never lift a person in the bucket. Also, do not exceed the rated load or use a loader without the correct ballast. Stop work if cab glass or fabric blocks your view.

Tractor Size and Maneuverability

A short wheelbase helps both tractors work in small yards and tight sites. Power steering also cuts effort during loader and mower use. Yet added tools can increase the turn space.

Cab height must be checked near sheds, limbs, and low doors. Therefore, measure the installed machine instead of using a catalog figure alone. Slow travel helps prevent roof and frame strikes.

For current machine facts, visit the official John Deere compact tractor page. Owners can also read the official John Deere 1023E and 1025R operator manual for safe use and service guidance.

Why Buy Direct from Original Tractor Cab?

Direct sales give you one source for cab fit, guides, and optional parts. You can shop by model year and ROPS shape instead of trying to adapt a loose enclosure. As a result, choosing the correct cab becomes much easier.

ROPS design remains the key fit detail for Cab 12110. A tractor model name alone does not prove a match. So, inspect the year, serial number, and roll-bar shape before you order.

The History of Original Tractor Cab Company

Original Tractor Cab began in 1939. At that time, Indiana farmer Stanley Williams needed a way to stay warm and dry on his tractor. So, he built a cab for his own use.

Other farmers soon saw the value of his idea. Williams then placed a small ad in a farm magazine. The strong reply helped turn one farm-built cab into a family business.

World War II brought a change in work. During the war, normal cab output stopped as the company made backpacks and other needed goods for the armed forces. Later, the firm began to make tractor cabs again.

New products came as farm and lawn tools changed. Hardtop cabs, soft enclosures, sunshades, and useful cab parts joined the line. Yet the main goal stayed much the same: help operators work with more cover from the weather.

Today, Original Tractor Cab works in Arlington, Indiana. The company still values useful design, family roots, and American-made products. Read more on the Original Tractor Cab history page.

John Deere Forward ROPS Cab Questions

Which tractors fit Cab 12110?

Cab 12110 fits 2018 through 2024 John Deere 1023E and 1025R tractors with a forward-leaning ROPS. Confirm the model year, serial number, ROPS shape, and full setup before purchase.

Does Cab 12110 fit 2017 and older tractors?

No. Most listed 2017 and older tractors use a straight ROPS and need a different cab. Inspect the actual ROPS before ordering.

Does this cab fit 2025 and newer tractors?

No. The redesigned 2025 and newer 1023E and 1025R need a different forward ROPS cab. Cab 12110 covers model years 2018 through 2024.

How high is the tractor with Cab 12110?

The final height is about 78 to 80 inches at the cab roof. Tire type, tread, wear, pressure, and tractor setup may change the measurement.

Does installation require drilling?

No. Cab 12110 uses existing tractor mounting points. Never drill, cut, weld, or alter the factory ROPS.

How long does installation take?

Plan on about three to four hours for the first setup. Actual time depends on tools, skill, tractor condition, and added equipment.

Is Cab 12110 a rollover cab?

No. Cab 12110 provides weather protection only. It is not a ROPS, FOPS, or certified safety enclosure.

Product and Safety Disclaimers

Non-OEM and Liability Disclaimer

This is an aftermarket product made by Original Tractor Cab Co., Inc. It is not a genuine John Deere OEM item. Deere & Company does not make, sponsor, approve, or endorse it. John Deere, 1023E, 1025R, and all related names belong to their owner and identify product fit only. This cab helps protect the operator from normal weather elements. It does not protect against rollover, collision, lightning, hail, falling objects, branches, thrown items, or flying debris. The cab is not a ROPS, FOPS, or certified safety enclosure. Never remove, drill, cut, weld, or alter the factory ROPS to install this cab. Keep the ROPS in place and use the seat belt as directed by the tractor maker. Confirm the model, year, serial number, ROPS shape, fit, clearance, and safe control use before installation. Read and follow all cab, tractor, loader, mower, PTO, and attachment instructions.

California Proposition 65 Warning

WARNING: This product can expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.

John Deere 3025E, 3032E and 3038E Hardtop Cab 40410

Work through cold wind, rain, sleet, and snow with Original Tractor Cab 40410. This hardtop cab fits select 2018 and newer John Deere 3025E, 3032E, and 3038E compact tractors. The correct tractor has a rear fuel tank and folding ROPS. Thus, checking the tractor layout before purchase is vital.

A hard ABS roof adds firm cover above the seat. Plus, clear side and rear panels help keep a wide view of the work site. The included safety-glass windshield and electric wiper help clear rain, mist, and wet snow.

Original Tractor Cab makes Cab 40410 in the USA. Its model-fit frame uses existing tractor holes, so normal installation needs no drilling. For more options, view our full range of John Deere hardtop tractor cabs.

All-Season Weather Protection for John Deere 3E Tractors

An open tractor leaves the operator in direct contact with the weather. Cold wind can make a short snow job feel long. Rain may also soak the seat, clothes, and controls. Therefore, a full cab can add real comfort in fall, winter, and spring.

Cab 40410 surrounds the work area with a roof, doors, windshield, and rear panel. This enclosure helps block rain, snow, sleet, and cold wind. As a result, you may spend more time at work when the weather turns bad.

The cab does not heat or cool the air on its own. However, it helps reduce direct contact with wet and cold weather. An approved heater may add warmth when it is installed and used as directed.

Durable ABS Plastic Hardtop

A firm ABS plastic roof covers the operator. The hardtop helps shed rain and falling snow. Plus, it gives the enclosure a clean and finished look.

Clear heavy snow from the roof before storage. Wet snow can add a large load. Therefore, do not let deep snow remain on the cab.

Included Safety-Glass Windshield

Cab 40410 includes a safety-glass windshield. Glass gives the front of the cab a firm, clear panel. It also supports the included electric wiper.

The windshield leans toward the front. This angle helps reduce glare and direct contact with falling rain or snow. Thus, the operator may gain a clearer view during bad weather.

Always clear frost, mist, snow, and dirt before moving the tractor. Stop at once if the view becomes blocked. Never drive when you cannot see the full work path.

Included Electric Windshield Wiper

An electric wiper comes with this cab. The wiper helps move rain, mist, and wet snow from the safety-glass windshield. As a result, it adds real value during wet work.

Inspect the blade before each season. Also, replace a worn blade before it scratches the glass or leaves broad streaks. Keep all wires away from heat, sharp edges, and moving tractor parts.

Clear Side Doors and Rear Window

Clear, shatter-resistant polycarbonate forms the side door windows and rear panel. This light material gives the operator a broad view around the tractor. Plus, it lets daylight enter the cab.

Wash the clear panels with mild soap, cool water, and a soft cloth. First, rinse away dust and grit. Then, wipe each panel with light pressure.

Strong cleaners may harm or cloud clear plastic. Rough towels can also leave marks. Therefore, test any care product in a small spot first.

Hinged Doors with Latches

Hinged doors make entry and exit fast. Each door has a latch that helps hold it shut during normal work. In addition, doors on both sides give the operator more than one path to the seat.

Check each latch before use. Then, make sure both doors clear the tractor controls. Stop work if a hinge, door, or latch becomes loose.

Cab 40410 Fit Guide

Cab 40410 fits select 2018 and newer John Deere 3025E, 3032E, and 3038E tractors. The correct tractor has its fuel tank and filler behind the seat. It also has the later folding ROPS setup.

Model names alone do not prove fit. John Deere changed the tractor layout during the life of the 3E Series. Therefore, inspect the fuel tank, ROPS, model year, and serial number before purchase.

Rear Fuel Tank Is Required

Look behind the tractor seat for the fuel tank and filler. Cab 40410 is made for this later rear-tank layout. An older tractor with a different fuel system needs Cab 11980 instead.

Do not move the fuel tank or alter the cab to force a fit. Fuel system changes can create a fire or leak risk. If the layout is not clear, please contact Original Tractor Cab.

Fits Select 2018 and Newer John Deere 3025E Tractors

Cab 40410 fits the later John Deere 3025E with the listed rear fuel tank and ROPS setup. The 3025E is a compact tractor made for mowing, loader work, snow care, and land jobs. Thus, a cab can add comfort during many tasks.

Fits Select 2018 and Newer John Deere 3032E Tractors

The same cab fits the later John Deere 3032E when its layout matches the fit guide. This tractor adds more engine power than the 3025E while keeping the same basic 3E form. Clear cab panels help with sight during loader and snow work.

Fits Select 2018 and Newer John Deere 3038E Tractors

Cab 40410 also fits the later John Deere 3038E with the correct rear tank and folding ROPS. The 3038E provides the most engine power in this three-model group. Therefore, it suits owners who need more power for large tools and hard jobs.

Folding ROPS Cannot Fold with the Cab Installed

The tractor ROPS may fold when the cab is not in place. However, it cannot fold down while Cab 40410 remains installed. The cab frame needs the ROPS in its upright work position.

Never cut, drill, weld, remove, or alter the ROPS to change this limit. Keep it upright and locked as the tractor guide directs. Use the seat belt with the ROPS in the safe operating position.

Older 3E Tractors Need a Different Cab

Cab 40410 does not fit the older tractor layout with a different fuel tank site. Those machines use another cab design. Check the fuel filler instead of relying on the tractor name alone.

A tractor sold or titled in 2018 may not match a simple year rule. Production date and model year can differ. So, use the serial number, fuel tank site, and ROPS form to confirm fit.

No-Drill Cab Installation

Cab 40410 mounts through existing tractor holes. Thus, normal installation does not require drilling into the tractor. Plan on about three to four hours for the first setup.

Actual time will vary with tools, skill, tractor condition, and added gear. Read the full guide before you begin. Then, visit our tractor cab installation manuals for current setup details.

Align the Cab Before Final Tightening

Sort all frame parts and hardware before assembly. Next, place each mount as shown in the guide. Keep the fasteners a bit loose during the first fit.

Align the doors, roof, windshield, and rear panel before final tightening. This step helps the full enclosure sit straight. After that, tighten each point in the stated order.

Check Tractor Control Clearance

Move every control through its full safe range after installation. Also, check the steering wheel, pedals, PTO control, hitch lever, and loader joystick. No cab part should block normal use.

Sit in the usual driving pose during the final check. Then, make sure your head, arms, and legs have enough room. Stop the engine before making any cab change.

Measure the Installed Tractor

Tire type, tread, wear, air pressure, and tractor setup affect the final height. Therefore, measure the tractor after the cab is installed. Check all shed doors, trailers, trees, and low roofs before use.

Low limbs can catch the roof or frame. A hard strike may harm both the cab and tractor. Stop and inspect every mount after any contact.

Cab Accessories and Comfort Options

Cab 40410 already includes a safety-glass windshield and electric wiper. Still, select mirrors, work lights, switches, and warning lights can add more use. Product fit and stock may change.

Side and Rear Mirrors

Mirrors can help the operator check space near the tractor. They are useful near walls, vehicles, tools, and tight lanes. Yet no mirror replaces a direct look at the site.

Set each mirror before you move. Also, keep the glass clean and firm. Replace broken or loose parts at once.

LED Work Lights

LED work lights can add sight before dawn or after dark. Front lights help show the travel path, while rear lights can help near a back blade or other tool. Still, added light does not make an unsafe site safe.

Use the right wiring, fuse, and switch parts. Keep wires away from heat and moving equipment. Browse our hardtop cab accessories for current options.

Cab Care and Seasonal Storage

Inspect the cab before each job. Look for loose bolts, torn panels, worn seals, or damaged latches. Also, make sure the roof and windshield remain firm.

Clean the safety-glass windshield with a glass-safe product. By contrast, use mild soap and water on the clear plastic panels. This care helps protect each type of window.

Remove Dirt, Ice, and Snow

Clear all windows before moving the tractor. Also, remove ice from the door edges and latches. Never force a frozen door since the panel or hinge may tear.

Use a soft brush to remove loose snow. Avoid sharp scrapers on clear plastic. Warm the panel with indoor air rather than open flame or high heat.

Open-Trailer Transport

High road speed can damage fabric panels and doors. Do not haul the tractor on an open trailer with the cab in place unless you use an approved transport cover and follow its guide. Road wind is far stronger than normal tractor travel.

Secure the tractor with legal frame tie-down points. Never use the cab as a tie-down. Also, measure the full loaded height before transport.

John Deere 3025E, 3032E and 3038E Specifications

The John Deere 3025E, 3032E, and 3038E are compact utility tractors. All three use a three-cylinder Yanmar diesel engine, four-wheel drive, and hydrostatic travel control. Yet engine power and some engine details vary by model.

These tractors suit mowing, loader work, snow removal, garden care, and small farm tasks. A Category 1 three-point hitch supports many rear tools. In addition, an independent 540-rpm rear PTO drives compatible equipment.

John Deere 3025E Engine Specifications

The John Deere 3025E uses a 24.7-horsepower diesel engine in the 2018-era configuration. Current published versions list about 24 horsepower. Engine size is about 100 cubic inches, or 1.64 liters.

A liquid cooling system helps manage engine heat. The three-cylinder design provides smooth power for loader, mower, and rear-tool work. Rated engine speed is about 2,500 rpm.

John Deere 3032E Engine Specifications

The John Deere 3032E provides about 31 horsepower. Its three-cylinder diesel engine has about 100 cubic inches, or 1.64 liters, of size. Thus, it adds more power than the 3025E while keeping a similar tractor form.

The engine uses liquid cooling and a dry air cleaner. An exhaust filter helps meet emissions rules. Follow the tractor guide for automatic and parked filter cleaning.

John Deere 3038E Engine Specifications

The John Deere 3038E provides about 37 horsepower. Its three-cylinder diesel engine has about 96 cubic inches in current published data. This higher power level helps with larger tools and demanding work.

Liquid cooling manages engine heat. An exhaust filter also forms part of the emissions system. Avoid needless idle time and use the correct low-sulfur diesel fuel and engine oil.

Hydrostatic Transmission

A hydrostatic transmission gives simple travel control. Separate pedals control forward and reverse motion. Therefore, the operator can change speed without a manual gear shift.

Hydrostatic drive works well during loader jobs and tight yard work. Still, the correct range should match the load and travel speed. Use a low range for hard pulling or slow work.

Standard Four-Wheel Drive

Four-wheel drive helps the tractor work on snow, loose soil, and wet ground. It also supports loader use when the surface allows safe work. Yet added grip does not make every slope safe.

Use four-wheel drive as the tractor guide directs. Slow down before turns and slopes. Also, avoid ground that exceeds the maker’s safe limits.

Power Steering and Wet-Disc Brakes

Power steering reduces effort during loader and mower work. It also helps with turns in tight areas. Meanwhile, wet-disc brakes provide enclosed stopping parts.

Test the brakes before each job. Never move the tractor if a pedal, brake, or steering part does not work as it should. The cab does not change any tractor safety rule.

Category 1 Three-Point Hitch

A Category 1 three-point hitch accepts many compact tractor tools. Owners can use listed blades, cutters, spreaders, tillers, and other gear. Tool weight and size must remain within the tractor limits.

Published lift capacity is about 1,356 pounds at 24 inches behind the hitch points on comparable 3E models. Actual safe use depends on the tool, ballast, slope, tires, and tractor setup. Never treat lift capacity as a safe load in every condition.

Independent Rear PTO

The rear PTO runs at 540 rpm for compatible tools. Independent engagement lets the operator control PTO power without a manual clutch pedal. Still, all guards must remain in place.

Stop the engine before you approach a shaft or tool. Wait for every part to stop before leaving the seat. Never step over a live driveline.

300E Front Loader Compatibility

The John Deere 300E loader fits listed 3025E, 3032E, and 3038E tractors. Published loader data lists a lift height near 84 inches at the pivot point on common setups. Capacity depends on the point of measurement and tractor setup.

Correct rear ballast is vital during loader work. Keep the bucket low during travel. Also, avoid sudden turns or stops with a raised load.

Tractor Dimensions and Tires

Common 3E tractor setups use a wheelbase near 62.8 inches. Tire sizes vary with turf, industrial, or farm tread. Therefore, overall width and cab height may also change.

Added ballast, loaders, tools, and tire fill increase machine weight. Check floor, trailer, and ramp limits before transport. Use the tractor serial number when exact figures matter.

For current machine details, visit the official John Deere 3038E product page. Owners can also use the official John Deere 3025E, 3032E, and 3038E operator manual for safe use and care.

Why Buy Direct from Original Tractor Cab?

Direct sales give you one source for fit help, manuals, and cab options. You can shop by tractor layout instead of trying to adapt a loose enclosure. As a result, choosing the correct cab becomes much easier.

The rear fuel tank remains a key fit detail for Cab 40410. Model name and year may not tell the full story. So, inspect the tractor before you order.

The History of Original Tractor Cab Company

Original Tractor Cab began in 1939. At that time, Indiana farmer Stanley Williams needed a way to stay warm and dry on his tractor. So, he built a cab for his own use.

Other farmers soon saw the value of his idea. Williams then placed a small ad in a farm magazine. The strong reply helped turn one farm-built cab into a family business.

World War II brought a change in work. During the war, normal cab output stopped as the company made backpacks and other needed goods for the armed forces. Later, the firm began to make tractor cabs again.

New products came as farm and lawn tools changed. Hardtop cabs, soft enclosures, sunshades, and useful cab parts joined the line. Yet the main goal stayed much the same: help operators work with more cover from the weather.

Today, Original Tractor Cab works in Arlington, Indiana. The company still values useful design, family roots, and American-made products. Read more on the Original Tractor Cab history page.

John Deere 3E Cab Questions

Which tractors fit Cab 40410?

Cab 40410 fits select 2018 and newer John Deere 3025E, 3032E, and 3038E tractors with a rear fuel tank and the later folding ROPS. Confirm the model, year, serial number, fuel tank site, and ROPS before purchase.

How can I tell if my tractor needs Cab 40410?

Look for the fuel tank and filler behind the seat. Cab 40410 is made for that later rear-tank layout. Older tractors with another fuel tank site need a different cab.

Can I fold the ROPS with the cab installed?

No. The folding ROPS must remain upright while Cab 40410 is installed. Never alter the ROPS or cab to make it fold.

Does Cab 40410 include a glass windshield?

Yes. The cab includes a safety-glass windshield and an electric wiper. Clear polycarbonate forms the side and rear windows.

Does installation require drilling?

No. Cab 40410 uses existing tractor mounting holes. Normal installation takes about three to four hours.

Is Cab 40410 a rollover cab?

No. Cab 40410 provides weather protection only. It is not a ROPS, FOPS, or certified safety enclosure.

Product and Safety Disclaimers

Non-OEM and Liability Disclaimer

This is an aftermarket product made by Original Tractor Cab Co., Inc. It is not a genuine John Deere OEM item. Deere & Company does not make, sponsor, approve, or endorse it. John Deere, 3025E, 3032E, 3038E, and all related names belong to their owner and identify product fit only. This cab helps protect the operator from normal weather elements. It does not protect against rollover, collision, lightning, hail, falling objects, branches, thrown items, or flying debris. The cab is not a ROPS, FOPS, or certified safety enclosure. Never remove, drill, cut, weld, or alter the factory ROPS to install the cab. Keep the ROPS upright and locked, and use the seat belt as directed by the tractor maker. Confirm the model, year, serial number, fuel tank site, ROPS form, fit, clearance, and safe control use before installation. Read and follow all cab, tractor, loader, mower, PTO, and attachment instructions.

California Proposition 65 Warning

WARNING: This product can expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.

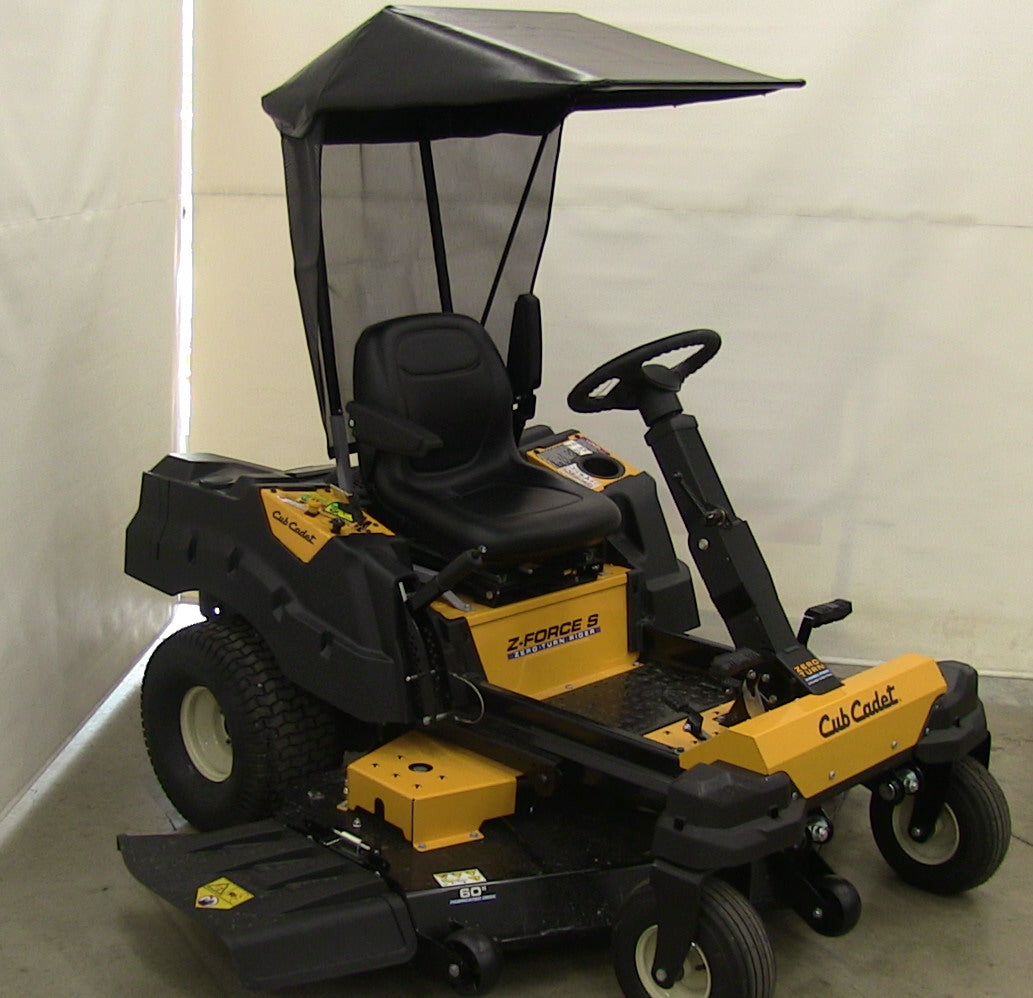

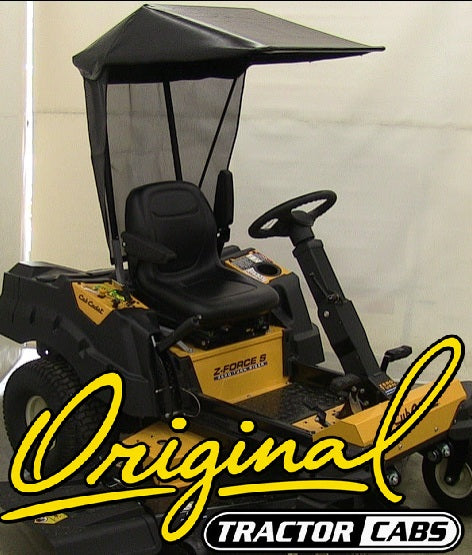

Cub Cadet S and SX Series Sunshade 30584

Stay cool while you mow with Original Tractor Cab Sunshade 30584. This canopy fits select 2020 and newer Cub Cadet S and SX Series zero-turn mowers. Its wide vinyl top helps keep direct sun off your head and back. Thus, warm lawn work can feel much better.

A strong steel frame holds the canopy over the seat. Plus, a rear screen panel adds more shade behind the operator. Open sides let fresh air move through the work area.

Original Tractor Cab makes Sunshade 30584 in the USA. Its model-fit frame adds shade without closing in the mower seat. For more fit options, view our full range of Cub Cadet mower cabs and sunshades.

Cool Shade for Long Mowing Jobs

Hot sun can make a short mow feel long. Heat may also add stress and slow your pace. Therefore, a good mower canopy can add real comfort from the first pass to the last.

The wide top helps block direct sun from above. Meanwhile, the rear screen helps keep sun off your back. As a result, you gain shade while keeping the feel of an open mower.

Sun angles change through the day. So, the shaded area will move with the time, slope, and travel path. Wear sun-safe clothes and use skin care when needed since an open shade cannot block every ray.

Strong Steel Sunshade Frame

A steel frame gives the canopy firm support. The model-fit mounts place the top above the operator without side walls or doors. Thus, the mower stays open and easy to enter.

Check the frame and all fasteners before each job. Also, look for loose mounts after contact with a limb. Stop work and fix any fault before you mow again.

Never use the frame as a handhold. The sunshade is not a grab rail or safety bar. Use the mower steps and grips as shown in the equipment guide.

Rip-Stop Vinyl Canopy

The canopy uses tough rip-stop vinyl. Its fabric resists mildew, flame, and water during normal use. Therefore, it can stand up to common lawn care work.

Rip-stop material can help limit the spread of a small tear. Still, sharp limbs and rough walls can harm the top. Keep the canopy clear of low trees, shed doors, and other fixed items.

Rear Sun Screen

A screen panel hangs at the rear of the shade. This panel adds cover from sun that reaches the operator from behind. Plus, the screen still allows some air to move near the seat.

Wind may move the screen during use. Check all ties and mounts before you start. Replace worn parts before they fail.

Open-Air Mowing Comfort

Open sides let fresh air flow near the seat. They also help the operator keep a broad view of the lawn. As a result, you can watch trees, beds, walls, and the mower path.

The water-resistant top may shed light drops from above. However, Sunshade 30584 is not a full cab or rain enclosure. Wind, rain, snow, sleet, and hail can still reach you through the open sides.

Stop mowing when a storm makes the job unsafe. Also, leave the mower if you see lightning or face high wind. A sunshade must never serve as storm cover.

Cub Cadet Sunshade 30584 Fit Guide

Sunshade 30584 fits select Cub Cadet S and SX Series zero-turn mowers. Product listings identify 2020 and newer S and SX Series applications. Yet mower trim, deck size, model year, and added gear may affect fit.

Confirm the full mower model and factory model number before purchase. A similar name does not always mean the frame and rear body match. If your setup is not clear, please contact Original Tractor Cab.

Listed Cub Cadet RZT SX Models

Listed applications include select Cub Cadet RZT SX 42, SX 46, SX 50, and SX 54 mowers. These steering-wheel zero-turn models use four-wheel control. Their deck sizes range from 42 through 54 inches.

Production details can vary by year. Therefore, compare the mower with the product photos and guide. Do not choose the sunshade by deck size alone.

Listed Cub Cadet Z-Force S Models

Listed Z-Force S applications include select S 48 and S 54 mowers. Some fit records may also include an S 60 in the wider S and SX family. Confirm the full factory number before ordering.

Z-Force S models use a steering wheel and four-wheel control. This layout differs from a lap-bar mower. Thus, a canopy made for another mower family may not fit.

Listed Cub Cadet Z-Force SX Models

Listed Z-Force SX applications include select SX 48, SX 50, SX 54, and SX 60 mowers. Deck size does not change the basic goal of the shade. Still, each mower must match the listed mount points.

The Z-Force SX line pairs steering-wheel control with a zero-turn drive system. Larger models can also use a broad fabricated cutting deck. Therefore, they suit owners who need to mow wide sites.

Not for Unlisted Ultima ZT Models

Cub Cadet also makes Ultima ZT, ZTS, ZTX, and ZTXS mowers. Those names refer to other mower frames and model groups. Sunshade 30584 should not be assumed to fit them.

Original Tractor Cab offers a separate canopy for listed Ultima ZT and ZTS models. Never drill or bend the 30584 frame to force a fit. Such a change may weaken the shade or harm the mower.

Quick Sunshade Installation

Sunshade 30584 was made for a quick and easy setup on listed mowers. First, read the full guide and sort all hardware. Then, place each frame part on the mower as shown.

Keep the fasteners a bit loose during the first fit. Next, align the complete frame and vinyl top. Tighten each mount only after all parts sit in the right place.

Installation time will vary with tools, skill, and mower condition. Added seats, lights, racks, or other gear may also affect the work. For help, see our sunshade installation manuals.

Check Seat and Control Clearance

Move the seat and each control through its safe range after installation. Also, check the steering wheel, deck control, parking brake, and pedals. No shade part should block normal use.

Sit in the usual mowing pose during the final check. Then, make sure your head and arms have enough room. Stop the engine before making any change.

Check Overall Mower Height

The canopy adds height above the seat. Therefore, measure the mower after installation. Check shed doors, trailers, tree limbs, and other low sites before you drive through them.

A hard strike can harm both the sunshade and mower. Stop and inspect every mount after any contact. Do not mow again until all parts remain firm.

Sunshade Cleaning and Care

Clean the vinyl top with mild soap, cool water, and a soft cloth. After that, rinse it well and let it air dry. Strong cleaners may harm the color or finish.

Do not use bleach unless the product guide allows it. Also, keep fuel, oil, and hot exhaust away from the canopy. Wash spills off at once.

Inspect the Top and Rear Screen

Look for worn fabric, loose seams, or damaged ties before each use. A small repair may help stop more wear. Yet a badly torn top should be replaced.

Check the rear screen at the same time. Make sure it cannot touch the engine, belt, tire, or other moving part. Stop work if the panel comes loose.

Store the Mower in a Dry Place

Indoor storage can help protect the shade from wind and long sun exposure. It also keeps water from sitting on the canopy. Therefore, store the mower under a sound roof when possible.

Remove loose dirt before long storage. Then, let the fabric dry. Folding wet vinyl may lead to stains or odor.

Open-Trailer Transport

Road speed can place a large load on the canopy and frame. Do not haul the mower on an open trailer with the shade in place unless the product guide allows it. Wind at road speed is far stronger than normal mower travel.

Never use the sunshade as a tie-down point. Secure the mower through approved frame points. Browse our cab and sunshade accessories for current care options.

Cub Cadet S and SX Series Mower Specifications

The Cub Cadet S and SX mower lines include steering-wheel zero-turn machines. Their Synchro-Steer system links the front wheels with the rear drive controls. Thus, the operator can steer with a wheel while the mower makes tight turns.

Model details vary by year and deck size. Common features include a twin-cylinder gas engine, dual hydrostatic drive, and fabricated cutting deck. Yet engine brand, power, fuel size, and speed may differ.

Steering-Wheel Zero-Turn Control

S and SX models use a steering wheel instead of two lap bars. The system controls both the front wheels and rear wheel speed. As a result, the mower can turn tightly while giving direct front-wheel control.

Four-wheel control can help the mower track a line on varied ground. Still, slope limits must always be followed. A steering system cannot make steep or wet ground safe.

RZT SX Deck Sizes

The RZT SX family includes deck sizes near 42, 46, 50, and 54 inches. A small deck can pass through tighter spaces. By contrast, a wide deck can cut a large lawn in fewer passes.

Deck build and blade count vary by model. Therefore, use the full model number when you buy blades, belts, or deck parts. Never assume two mowers with the same cut width use the same parts.

Z-Force S 48 Specifications

The Cub Cadet Z-Force S 48 uses a 48-inch fabricated, triple-blade deck in listed versions. A 24-horsepower Kohler V-twin gas engine supplies power. Hydrostatic drive controls travel speed.

The steering-wheel system manages four-wheel control. This setup lets the mower turn tightly without lap bars. Still, safe speed must match the ground and slope.

Z-Force SX 54 Specifications

One listed Cub Cadet Z-Force SX 54 uses a 24-horsepower Kawasaki FR730V engine. This air-cooled V-twin has 726 cc of size. Its dual fuel tanks hold about 2.8 gallons each.

A 54-inch fabricated deck gives the mower a wide cut. Forward speed can reach about 8 mph, while reverse speed reaches about 4 mph. Ground conditions may call for a much lower safe speed.

Z-Force SX 60 Specifications

The listed Z-Force SX 60 also uses a 24-horsepower Kawasaki FR730V V-twin engine. Engine size is 726 cc. A 60-inch triple-blade cutting system covers a broad path.

Dual 2.8-gallon fuel tanks support long mowing jobs. The mower can travel at up to about 8 mph in the forward direction. However, thick grass and rough ground may need a slower pace.

Hydrostatic Drive

Dual hydrostatic drives control the rear wheels. The system changes mower speed without a manual gear shift. Plus, it can vary rear wheel speed during a turn.

Check the drive controls before each job. Never use a mower that creeps, pulls hard to one side, or fails to stop as directed. Follow the maker’s adjustment and service rules.

Fabricated Mower Decks

Many Z-Force S and SX mowers use a welded steel deck. A fabricated shell adds strength for large lawns and hard use. Yet blades still need sharp edges for a clean cut.

Stop the engine before you inspect the deck. Remove the key and wait for all parts to stop. Never reach below a deck while a blade can move.

Fuel and Engine Care

Use the fuel and oil listed in the mower manual. Also, check the oil level before each use. A clean air filter helps the engine work well in dusty sites.

Grass near the engine can hold heat. Therefore, clean dry clippings from the cooling area after the engine cools. Keep the sunshade fabric away from the muffler and exhaust.

Mower Safety and Slope Use

Read the slope limit for the exact mower. Never use a general zero-turn claim as a safe limit for every model. Wet grass, holes, soft soil, and added gear can raise risk.

Mow up and down a slope when the maker directs that path. Slow down before each turn. Also, keep clear of drop-offs, ponds, and steep banks.

For official model details, visit the Cub Cadet Z-Force SX 54 page. Owners of the wider model can also review the Cub Cadet Z-Force SX 60 specifications.

Why Buy Direct from Original Tractor Cab?

Direct sales give you one source for fit help, product guides, and shade parts. You can shop by mower family instead of trying to adapt a loose canopy. As a result, choosing the right product becomes easier.

Small fit facts still matter. Model year, deck size, seat type, and added gear can change the correct choice. So, inspect the mower before you order Sunshade 30584.

The History of Original Tractor Cab Company

Original Tractor Cab began in 1939. At that time, Indiana farmer Stanley Williams needed a way to stay warm and dry on his tractor. So, he built a cab for his own use.

Other farmers soon saw the value of his idea. Williams then placed a small ad in a farm magazine. The strong reply helped turn one farm-built cab into a family business.

World War II brought a change in work. During the war, normal cab output stopped as the company made backpacks and other needed goods for the armed forces. Later, the firm began to make tractor cabs again.

New products came as farm and lawn tools changed. Hardtop cabs, soft enclosures, sunshades, and useful cab parts joined the line. Yet the main goal stayed much the same: help operators work with more cover from the weather.

Today, Original Tractor Cab works in Arlington, Indiana. The company still values useful design, family roots, and American-made products. Read more on the Original Tractor Cab history page.

Cub Cadet Sunshade Questions

Which mowers fit Sunshade 30584?

Sunshade 30584 fits select Cub Cadet S and SX Series mowers. Listed applications include certain RZT SX and Z-Force S or SX models. Confirm the full model number and year before purchase.

What is the sunshade made from?

The shade has a steel frame, tough rip-stop vinyl top, and rear screen panel. The vinyl resists mildew, flame, and water during normal use.

Is Sunshade 30584 a full weather cab?

No. It is an open mower canopy. The top helps block direct sun, but it does not enclose the operator or provide full protection from rain, wind, snow, sleet, or hail.

Does the sunshade fit Cub Cadet Ultima ZT mowers?

Do not assume that it does. Sunshade 30584 is for listed S and SX Series applications. Separate shade models serve certain Ultima ZT and ZTS mowers.

Can the sunshade protect me during a rollover?

No. The shade is not a rollover bar, ROPS, FOPS, or safety enclosure. It cannot protect the operator from a rollover, impact, falling object, or flying debris.

Where is Sunshade 30584 made?

Original Tractor Cab makes Sunshade 30584 in the United States.

Product and Safety Disclaimers

Non-OEM and Liability Disclaimer

This is an aftermarket product made by Original Tractor Cab Co., Inc. It is not a genuine Cub Cadet or MTD OEM item. Cub Cadet and MTD Products do not make, sponsor, approve, or endorse it. Cub Cadet, RZT, Z-Force, S, SX, and all model names belong to their respective owners and identify product fit only. This sunshade helps reduce direct exposure to sun from above and behind. It does not protect the operator from rollover, collision, lightning, hail, falling limbs, thrown objects, or flying debris. The shade is not a ROPS, FOPS, weather cab, or certified safety enclosure. Never use the frame as a handhold or tie-down point. Confirm the mower model, factory number, year, fit, height, clearance, and safe control use before installation. Read and follow all shade, mower, engine, deck, and attachment instructions.

California Proposition 65 Warning

WARNING: This product can expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.
