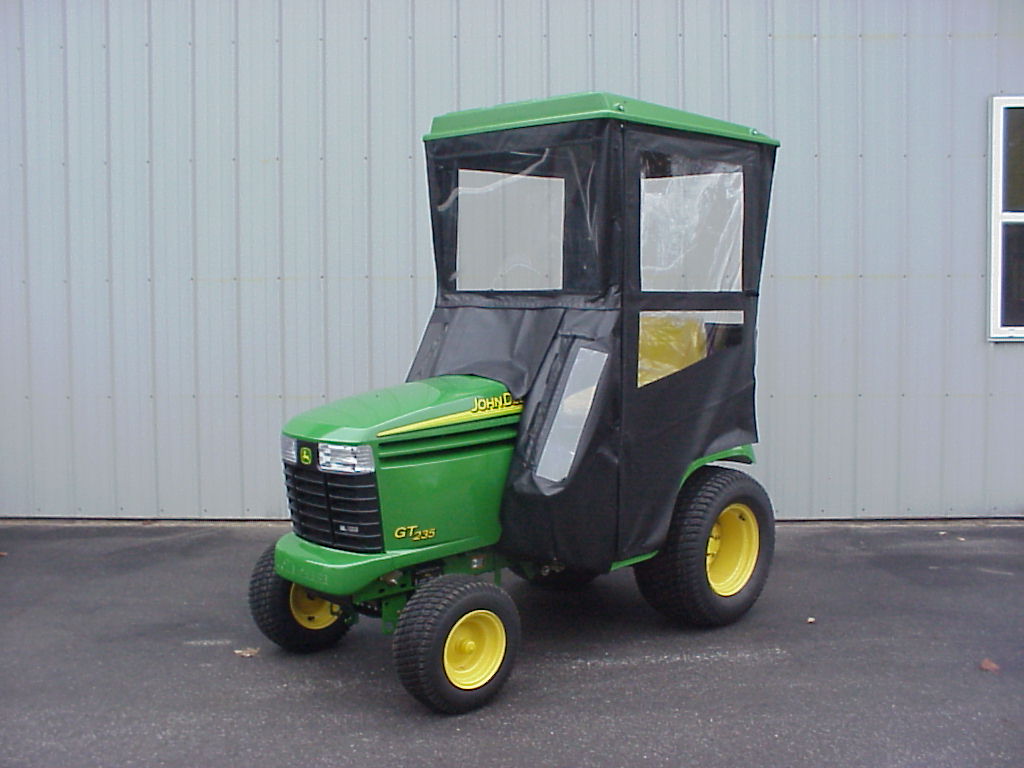

Hardtop Cab 11105 for John Deere GT and GX Garden Tractors

John Deere built the GT225, GT235, GT245, and GX255 as capable lawn and garden tractors. Yet each machine came with an open operator station.

That open design works well in mild weather. However, cold rain, blowing snow, sleet, and winter wind can make outdoor work much harder.

Original Tractor Cab 11105 adds an enclosed work area around the operator. Thus, owners can get more comfort while using a good tractor through more of the year.

John Deere GT225 Cab

Cab 11105 fits the John Deere GT225. Deere produced the GT225 as part of its GT200 Series garden tractor line.

A hardtop cab can be useful when a GT225 works during fall or winter. For example, the enclosure helps reduce direct wind and blowing snow around the operator.

Always confirm your tractor model before ordering.

John Deere GT235 Cab

The John Deere GT235 is also a direct Cab 11105 application. This garden tractor combines hydrostatic drive with a larger engine than the early GT225.

Adding the enclosure gives the GT235 owner more cover from poor weather. Moreover, the clear windows let the driver watch the work area.

Keep every panel clean before use.

John Deere GT245 Cab

Original Tractor Cab 11105 also fits the John Deere GT245. Deere gave this model a 20 horsepower Kawasaki V-twin engine.

The GT245 can handle mowing and compatible seasonal equipment. Therefore, an all-weather cab can add value when the tractor stays busy after summer ends.

Use only equipment approved for your exact tractor.

John Deere GX255 Cab

Cab 11105 fits the John Deere GX255 as well. This model combines a 20 horsepower Kawasaki V-twin with hydrostatic drive and power steering.

Those features make the GX255 a useful property-care machine. Likewise, the hardtop cab helps make cold-weather operation more comfortable.

The cab does not change the tractor's rated capacity.

Protection From Rain, Snow, Sleet, and Wind

Weather can change fast during outdoor work. A clear morning may turn wet, cold, or windy before the job is done.

Cab 11105 helps reduce direct exposure to those conditions. As a result, the operator gets more coverage than an open garden tractor can provide.

The enclosure is not airtight or watertight. Still, it can make a major change in operator comfort.

Rain Protection

Rain can soak an operator on an open tractor. The molded ABS hardtop helps block water that falls from above.

At the same time, the front, side, and rear enclosure areas help reduce wind-driven rain. Therefore, Cab 11105 can make wet-weather jobs easier to handle.

Some water may enter through normal enclosure gaps.

Snow Protection

Snow removal often means working while snow is still falling. Wind may also blow loose snow back toward the tractor.

Cab 11105 creates a weather barrier around the operator. Thus, it helps reduce direct contact with falling and blowing snow.

Clear snow from the windows whenever your view becomes poor.

Sleet Protection

Sleet can make an outdoor job cold and unpleasant. Frozen moisture may strike the operator from the front or side.

The hardtop and enclosure help reduce that direct exposure. However, icy ground can still make tractor travel unsafe.

Slow down or stop when traction becomes poor.

Cold Wind Protection

Cold wind can make winter work feel far colder than the air temperature. Cab 11105 helps reduce direct airflow around the seat.

Consequently, the operator gets a more sheltered place to work. Outside air can still enter through normal openings.

Dress for the actual outdoor conditions.

Molded ABS Hardtop With UV Inhibitor

Cab 11105 uses a molded ABS plastic hardtop. A UV inhibitor helps the roof stand up to outdoor exposure.

The hardtop gives the operator firm overhead weather cover. In addition, it can provide useful shade from direct overhead sun.

Never use the cab roof as a cargo rack or work platform.

Hard Roof for Winter Weather

A hard roof is useful during snow and sleet. Falling weather first meets the ABS top instead of landing on the operator.

Likewise, the solid roof helps keep rain away from the seat area. Therefore, the hardtop forms an important part of this all-weather enclosure.

Inspect the roof and mounts before each season.

16-Gauge Steel Tube Cab Frame

A 16-gauge steel tube frame supports Cab 11105. This frame creates the main shape of the enclosure.

The roof, vinyl, and clear panels attach around that support system. As a result, the cab stays positioned around the operator area.

Check all mounting hardware during normal maintenance.

Model-Fit Mounting Design

Cab 11105 was made around specific John Deere garden tractors. That matters because a model-fit enclosure can use the machine's existing layout.

However, these tractors are now older machines. Previous owners may have changed a seat, body panel, control, or other part.

Confirm clearance when your tractor has been modified.

Ripstop Vinyl Cab Enclosure

Lightweight ripstop vinyl forms key parts of the enclosure. Product literature describes this material as resistant to abrasion, water, fire, mildew, and rot.

The vinyl helps close gaps around the clear window areas. Meanwhile, its light weight keeps the enclosure practical for a garden tractor.

Inspect the material for damage before cold-weather use.

Care for the Vinyl Material

Dirt can shorten the useful life of outdoor material. So, clean the cab when mud, salt, or other debris builds up.

Use mild cleaning methods that are safe for the cab material. Then, let the enclosure dry before long-term storage.

Never use a harsh solvent unless the cab instructions approve it.

Clear Shatter-Resistant Lexan Windows

Cab 11105 uses clear Lexan window material. Product information describes the material as non-puckering and shatter resistant.

The clear panels also remain useful in cold conditions. In fact, Cab 11105 product literature states that the window material can handle sub-zero temperatures without cracking.

Good visibility remains vital during every job.

Clear Views Around the Tractor

An enclosure should provide weather coverage without taking away the operator's view. Therefore, clear panels surround key areas of Cab 11105.

The driver can watch the path ahead as well as nearby objects. Still, snow, frost, and dirt can reduce that view.

Clean the windows before moving the tractor.

Clean Lexan With Care

Clear plastic can scratch when grit is rubbed across its surface. First, rinse away loose dirt with clean water.

Next, use mild soap and a soft clean cloth. Avoid abrasive pads and rough towels.

Gentle care helps preserve clear sight lines.

No Holes to Drill During Normal Installation

Cab 11105 mounts with existing tractor holes. So, normal installation does not require drilling new holes in the John Deere machine.

That makes installation cleaner and avoids needless changes to the tractor. Moreover, model-fit hardware helps position the enclosure where it belongs.

Follow the current Cab 11105 installation manual.

Installation in Less Than Four Hours

Dealer product information lists installation at less than four hours. Actual time can vary with tools, skill, and tractor condition.

First, park the tractor on a clean and level surface. Next, identify all cab parts before assembly.

Take time to align the enclosure correctly.

Check Every Tractor Control

After installation, sit in the normal operator position. Then, move each control through its normal range.

No cab part should block a pedal, lever, steering control, or safety device. Likewise, the enclosure must not contact hot engine or exhaust parts.

Correct any interference before use.

Optional Safety-Glass Windshield

An optional safety-glass windshield is available for Cab 11105. This gives owners another choice for the front window.

Glass is especially useful when a windshield wiper is desired. Therefore, operators who use the tractor often in wet winter weather may want this option.

Confirm the current accessory part number before purchase.

Optional Windshield Wiper

A compatible wiper kit is available for use with the safety-glass windshield. The wiper requires the glass windshield.

It can help clear rain and wet snow from the driver's forward view. However, the wiper should not be fitted to the standard Lexan windshield unless current Original Tractor Cab instructions specifically permit it.

Keep the wiper blade in good condition.

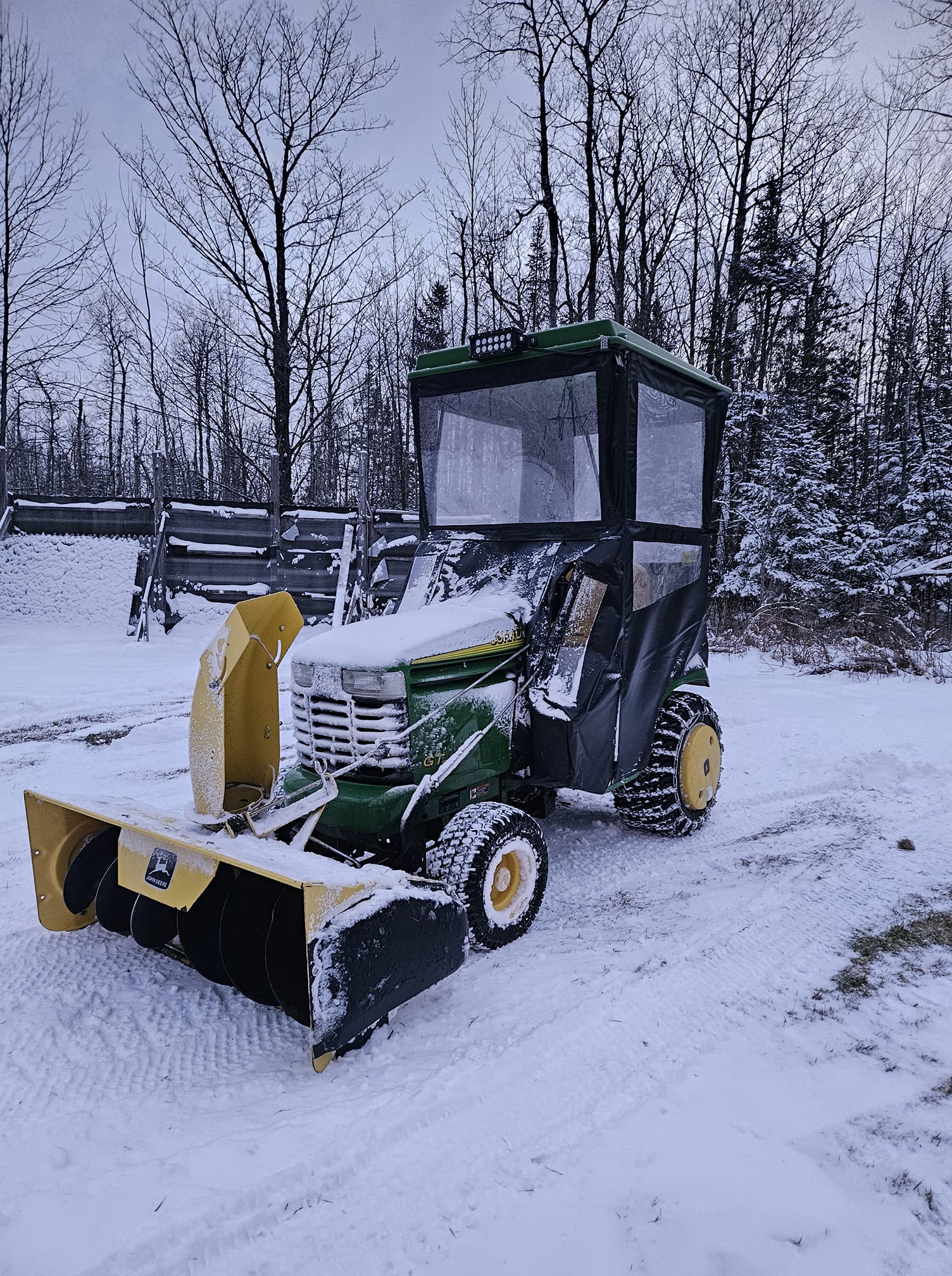

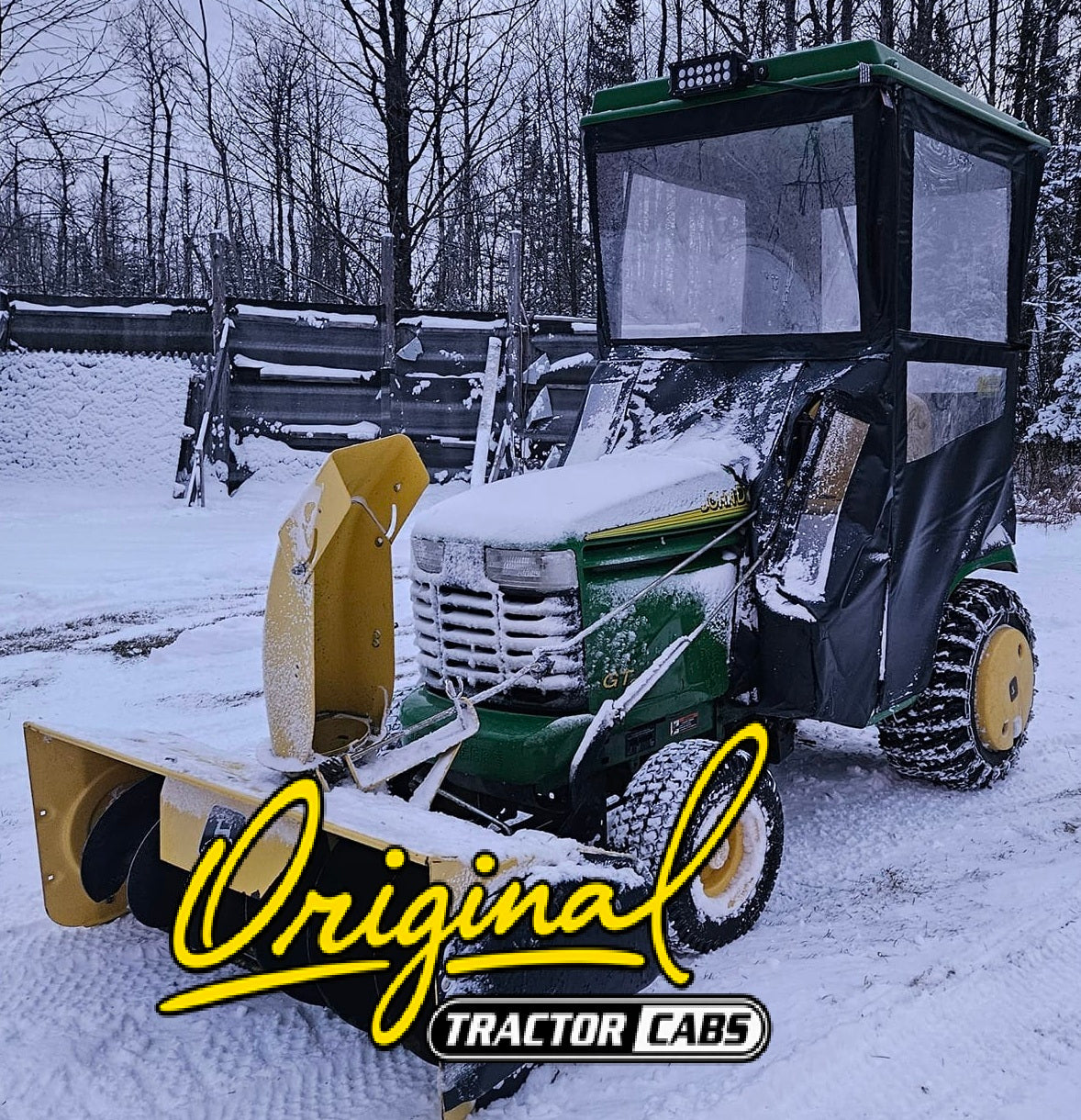

Use Cab 11105 for Winter Snow Work

The GT225, GT235, GT245, and GX255 can use compatible seasonal equipment. Snowblowers and other winter attachments make these tractors useful after the mowing season ends.

Yet winter equipment often places the operator directly in blowing snow. Consequently, a weather cab can add real comfort.

Cab 11105 helps place a barrier between the operator and the storm.

Use the Correct Snow Equipment

Attachment fit can differ by tractor, year, and configuration. Therefore, confirm the exact John Deere attachment before installation.

Some winter setups may also need weights, chains, a hitch, or other parts. Follow the attachment manual for the full setup.

Never exceed the tractor's operating limits.

Use Cab 11105 Beyond Winter

A hardtop cab can also help during cool spring and fall work. Rain and wind are not limited to snow season.

The ABS roof can provide overhead shade as well. Thus, the cab can offer useful coverage through more than one season.

Allow proper airflow when outdoor temperatures rise.

Transport the Cab With Care

Open-road transport creates wind forces far above normal tractor speeds. Therefore, prepare the enclosure as the current Cab 11105 manual directs before hauling the tractor.

Flexible cab material may need to be removed or secured for open transport. Ignoring transport instructions can damage the enclosure.

Inspect the cab again after transport.

Cab 11105 Is Weather Protection

Hardtop Cab 11105 helps reduce exposure to rain, snow, sleet, wind, and overhead sun. However, it is not a certified operator protective structure.

The steel frame supports the weather enclosure. It does not turn the tractor into a machine with certified rollover protection.

Operate the tractor as John Deere directs.

Not Rollover or Debris Protection

Cab 11105 is not a Roll-Over Protective Structure. Likewise, the roof and windows are not certified guards against branches, stones, thrown objects, or falling material.

Inspect the work area before operation. Also, keep people and animals away from active mower and snow equipment.

Never depend on the cab to stop debris.

Buy John Deere Cab 11105 Direct From Original Tractor Cab

Original Tractor Cab makes Hardtop Cab 11105. So, buying direct connects you with the company behind the enclosure.

That can be important with an older garden tractor. A prior owner may have changed parts that affect fit.

Browse more John Deere hardtop cabs for other model-fit weather enclosures.

You can also shop Original Tractor Cab accessories for available cab equipment.

Before assembly, use the Original Tractor Cab installation manual library for current instructions.

If you have a fit question, visit the Original Tractor Cab contact page before ordering.

John Deere GT225 GT235 GT245 GX255 Specifications

The GT225, GT235, GT245, and GX255 belong to a group of John Deere garden tractors built in Horicon, Wisconsin. Each uses hydrostatic drive and an open operator station in its original form.

However, engine power and equipment differ by model. The GX255 also adds power steering.

Exact specifications can vary by production year and serial number.

John Deere GT225 Specifications

John Deere produced the GT225 from 1999 through 2003. This GT200 Series garden tractor uses two-wheel drive, manual steering, and a hydrostatic transmission.

Published tractor weight is about 557 pounds. In addition, the GT225 uses a 2.75-gallon fuel tank.

Engine design changed during its production life.

Early GT225 Kohler Engine

Early GT225 tractors use a Kohler CV15S gasoline engine. This air-cooled engine has one cylinder.

Displacement is 426 cc, or about 26 cubic inches. Published gross power is 15 horsepower.

John Deere used this engine through the earlier GT225 production range.

Later GT225 Kohler Engine

Later GT225 tractors use a Kohler CV460S. This is also an air-cooled, single-cylinder gasoline engine.

Displacement rises to 458 cc, or about 28 cubic inches. Published gross output is 16 horsepower.

Therefore, check the serial range when buying engine parts.

GT225 Hydrostatic Drive

The GT225 uses a hydrostatic transmission. This lets the operator change travel speed without shifting through fixed gears.

Hydrostatic drive works well when mowing around obstacles. Likewise, it is useful when winter work requires frequent changes in speed and direction.

Use a speed that matches the ground conditions.

GT225 Tires and PTO

Published GT225 tire sizes include 16x6.50-8 front tires and 23x10.50-12 rear tires. The tractor also uses an independent electric PTO.

A sleeve hitch was available as an option. Thus, the tractor could support more property-care jobs than mowing alone.

Actual equipment varies by tractor.

John Deere GT235 Specifications

John Deere produced the GT235 from 1999 through 2005. This garden tractor uses two-wheel drive, manual steering, wet disc brakes, and hydrostatic travel.

Fuel capacity is about 2.75 gallons. Moreover, Deere offered more than one engine during the production run.

Both main engines are rated at 18 horsepower.

Early GT235 Briggs & Stratton Engine

Earlier GT235 tractors use a Briggs & Stratton 350777 gasoline engine. It is a two-cylinder, air-cooled V-twin.

Displacement is 570 cc, or about 34.8 cubic inches. Published gross output is 18 horsepower.

This engine was used through the earlier production range.

Later GT235 Kawasaki Engine

Later GT235 tractors use a Kawasaki FH580V gasoline engine. It is also a two-cylinder, air-cooled V-twin.

Displacement remains 570 cc, or about 34.8 cubic inches. Published gross output is 18 horsepower.

The engine change makes the tractor serial number important for service parts.

GT235 Hydrostatic Transmission

The GT235 uses hydrostatic drive. Therefore, the operator can adjust ground speed smoothly while keeping engine speed suited to the job.

This is useful during mowing and snow removal. Still, traction depends on the tires, ground, ballast, and attachment setup.

Follow John Deere instructions for winter equipment.

John Deere GT245 Specifications

John Deere produced the GT245 from 2002 through 2005. This GT200 Series garden tractor was built in Horicon, Wisconsin.

The tractor uses two-wheel drive, manual steering, wet disc brakes, and hydrostatic drive. Published weight is about 585 pounds.

Fuel capacity is about 2.75 gallons.

GT245 Kawasaki FH601V Engine

The GT245 uses a Kawasaki FH601V gasoline engine. This air-cooled V-twin has two cylinders.

Displacement is 675 cc, or about 41.2 cubic inches. Published gross power is 20 horsepower.

The engine uses a 12-volt starting system.

GT245 PTO and Tires

The GT245 uses an independent electric mid PTO. Common published tire sizes are 16x6.50-8 at the front and 23x10.50-12 at the rear.

A sleeve hitch was also available as an option. Therefore, the tractor could handle a range of compatible lawn and garden equipment.

Match every attachment to the exact tractor.

John Deere GX255 Specifications

John Deere produced the GX255 for the 2004 and 2005 model years. Like the GT models, it was built in Horicon, Wisconsin.

The GX255 uses two-wheel drive and a hydrostatic transmission. However, it adds power steering in place of the manual steering found on the listed GT models.

Published tractor weight is about 607 pounds.

GX255 Kawasaki FH601V Engine

The GX255 uses a Kawasaki FH601V gasoline engine. This two-cylinder V-twin is air cooled.

Displacement is 675 cc, or about 41.2 cubic inches. Published gross power is 20 horsepower.

Fuel capacity is about 2.75 gallons.

GX255 Power Steering

Power steering is a key GX255 feature. It can reduce steering effort, especially when the tractor uses front-mounted equipment.

However, power steering does not remove the need for correct ballast and safe speed. Therefore, follow the attachment manual for the complete setup.

Slow down before sharp turns.

GX255 PTO and Tires

The GX255 uses an independent electric mid PTO. Published standard tire sizes include 16x6.50-8 front tires and 24x12-12 rear tires.

The larger rear tire differs from the common 23x10.50-12 size on several GT models. So, verify tire size before buying chains or replacement equipment.

Tires can also affect finished cab height.

John Deere Mower Deck Options

Mower deck fit varies across these tractors. John Deere offered several deck configurations during the life of the GT and GX product lines.

The GT225 appeared with several mowing configurations, while the GT235 and GT245 commonly used larger decks. The GX255 supported 48-inch and 54-inch mower deck applications.

Always identify the exact deck before ordering service parts.

GX255 48-Inch and 54-Inch Decks

Published John Deere GX255 references list 48-inch and 54-inch mid-mount mower decks. This gave owners a choice based on property size and mowing needs.

A larger deck can cover more ground. However, width also matters near gates, trees, and other objects.

Remember that Cab 11105 changes the tractor's upper profile too.

John Deere Snow Equipment

Compatible snow equipment helped turn these garden tractors into seasonal work machines. For many owners, that ability is one reason a weather enclosure still makes sense today.

The GX255, for example, has documented snowblower applications. Attachment choices for the GT models vary by model and configuration.

Use the tractor serial number when checking older attachment fit.

Why Tractor Configuration Matters

These John Deere machines are now older equipment. Over time, an owner may change tires, seats, decks, engines, controls, or attachment hardware.

Consequently, two tractors with the same model number may no longer have the same setup.

Inspect your machine before ordering a cab or attachment.

Official John Deere Parts and Technical Information

John Deere still lists parts that apply across the GT225, GT235, GT245, and GX255. Therefore, the model and serial number remain useful when maintaining these tractors.

For factory replacement parts and model lookup, visit the official John Deere parts website .

For official operator manuals and technical publications, visit the John Deere technical publications website .

The History of Original Tractor Cab Company

Original Tractor Cab Co., Inc. traces its history to 1939. At that time, Indiana farmer Stanley Williams saw a simple problem.

People working on tractors needed better protection from bad weather. So, Stanley designed a cab for his own use.

That practical farm solution became the start of an American company.

Born From a Need on the Farm

The first Original Tractor Cab did not begin as a marketing idea. Instead, it came from real work on a farm.

Stanley knew what it meant to spend long hours outside. Rain, wind, snow, cold, and sun were all part of the job.

Therefore, better operator coverage had clear value.

Other Farmers Wanted the Same Protection

Other farmers soon noticed Stanley's cab. They saw how a simple enclosure could make outdoor work easier in poor weather.

Interest grew. As a result, Stanley's personal solution began to turn into a business.

Original Tractor Cab dates its beginning to 1939.

American Manufacturing Takes Root

The company grew by making practical products for people who worked outdoors. Its early cab designs focused on a clear need instead of extra complexity.

That approach helped Original Tractor Cab build a place in the farm equipment market. Yet a major world event soon changed production.

World War II shifted the company's work.

Supporting the War Effort

During World War II, normal tractor cab production stopped. Instead, Original Tractor Cab used its manufacturing skills to support the military.

The company made backpacks and other needed goods during the war years. Afterward, it returned its focus to products for outdoor work.

New types of equipment soon created new opportunities.

Moving Into Lawn and Garden Equipment

Outdoor power equipment changed after the war. Lawn tractors, garden tractors, and snow equipment became more common.

Therefore, Original Tractor Cab expanded beyond traditional farm tractors. The company began making products for smaller machines and new types of work.

That growth eventually included cabs for John Deere garden tractors.

From Farm Tractors to Snow Equipment

Weather protection was useful on more than large tractors. People using walk-behind snow equipment also worked in blowing snow and cold wind.

The company developed products for those operators as well. In turn, Original Tractor Cab reached another part of the outdoor equipment market.

The basic goal remained the same.

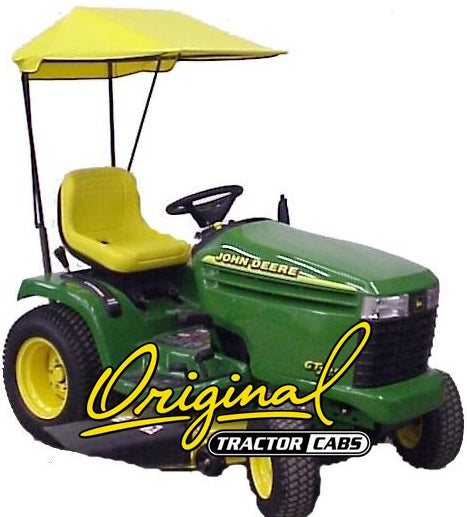

Sunshades Add Warm-Weather Protection

Cold weather was not the only operator concern. Summer sun could also make outdoor work uncomfortable.

Original Tractor Cab later expanded into tractor and mower sunshades. Thus, the company could provide useful operator coverage in warm weather too.

Cabs and sunshades remain key parts of the product line today.

Three Generations of the Williams Family

The Williams family carried Original Tractor Cab through three generations. Each generation worked with changing equipment and customer needs.

Yet the central idea stayed simple. Make useful products for people who need to work outdoors.

That idea still guides the company.

Made in the USA Since 1939

Original Tractor Cab remains based in Arlington, Indiana. Its American manufacturing history now reaches back more than eight decades.

Today, the company makes hardtop cabs, soft cab enclosures, sunshades, snow equipment cabs, and related accessories.

Cab 11105 is part of that long product story.

Cab 11105 Carries the Original Idea Forward

The John Deere GT225, GT235, GT245, and GX255 arrived many decades after Stanley's first cab. Still, their operators face the same rain, snow, sleet, wind, and sun.

Hardtop Cab 11105 applies the company's long-running idea to these John Deere garden tractors. Therefore, owners can add weather coverage without replacing a machine that still serves them well.

Learn more on the Original Tractor Cab company history page .

John Deere GT225 GT235 GT245 GX255 Cab 11105 FAQ

Which John Deere tractors fit Hardtop Cab 11105?

Cab 11105 fits the John Deere GT225, GT235, GT245, GX255, LX280, and LX289. This page focuses on the GT225, GT235, GT245, and GX255.

Does Cab 11105 fit the John Deere GT225?

Yes. The John Deere GT225 is a listed application for Original Tractor Cab 11105.

Does Cab 11105 fit the John Deere GT235?

Yes. Original Tractor Cab 11105 fits the John Deere GT235 garden tractor.

Does Cab 11105 fit the John Deere GT245?

Yes. The John Deere GT245 is a listed Cab 11105 application.

Does Cab 11105 fit the John Deere GX255?

Yes. Original Tractor Cab lists the John Deere GX255 for Hardtop Cab 11105.

Does Cab 11105 also fit the John Deere LX280 and LX289?

Yes. Current Cab 11105 fit information also lists the John Deere LX280 and LX289.

What is the Cab 11105 frame made from?

Cab 11105 uses a 16-gauge steel tube frame to support the hardtop and enclosure.

What is the roof made from?

The roof is molded ABS plastic with a UV inhibitor for added outdoor durability.

What are the windows made from?

Cab 11105 uses clear, non-puckering, shatter-resistant Lexan window material. Product literature states that the material can withstand sub-zero temperatures without cracking.

What is the enclosure material made from?

The cab uses lightweight ripstop vinyl material. Product information describes it as resistant to abrasion, water, fire, mildew, and rot.

Does Cab 11105 require drilling?

No. Normal installation uses existing holes on the tractor, so new mounting holes are not required.

How long does Cab 11105 take to install?

Dealer product information lists installation at less than four hours. Actual time can vary with tools, skill, and tractor condition.

Can Cab 11105 use a safety-glass windshield?

Yes. An optional safety-glass windshield is available for Cab 11105.

Can Cab 11105 use a windshield wiper?

Yes. A compatible wiper kit is available, but the wiper requires the optional safety-glass windshield.

Does Cab 11105 help protect from rain?

Yes. The roof and enclosure help reduce direct rain exposure. However, the cab is not a sealed or fully watertight enclosure.

Does Cab 11105 help protect from snow and sleet?

Yes. The enclosure helps reduce direct exposure to falling and blowing snow and sleet during normal tractor use.

Does Cab 11105 help block cold wind?

Yes. The cab helps reduce direct airflow around the operator. Still, outside air can enter through normal enclosure openings.

Can Cab 11105 be used during snow removal?

Yes. The enclosure can add useful weather coverage when the tractor uses compatible and correctly installed snow equipment.

Is Cab 11105 rollover protection?

No. Cab 11105 is a weather enclosure. It is not a certified Roll-Over Protective Structure.

Does Cab 11105 provide debris protection?

No. The enclosure is not a certified impact, debris, or falling-object protective structure.

Is Cab 11105 a genuine John Deere OEM cab?

No. Cab 11105 is an aftermarket weather enclosure manufactured by Original Tractor Cab Co., Inc.

Non-OEM and Liability Disclaimer

This is an aftermarket product produced by the Original Tractor Cab Co. Inc., it is not a genuine OEM item. This product will only protect from elements not rollover or debris.

Original Tractor Cab Co., Inc. is not affiliated with, sponsored by, or endorsed by Deere & Company. John Deere, Deere, related logos, trademarks, and model names remain the property of their respective owners. Brand and model references are used only to identify intended product compatibility.

Cab 11105 is intended for compatible John Deere GT225, GT235, GT245, GX255, LX280, and LX289 tractors as listed for the product. The owner must confirm the exact model, serial number, tractor configuration, attachments, and installed equipment before purchase and installation.

This cab is designed to help reduce operator exposure to normal weather. It is not designed or certified to provide rollover, collision, impact, debris, or falling-object protection.

Cab 11105 is not a Roll-Over Protective Structure, Falling Object Protective Structure, collision-protection device, debris shield, impact guard, or operator-restraint system.

Always follow the John Deere operator manual and the current Original Tractor Cab installation instructions. Keep all factory guards, shields, warning labels, controls, switches, interlocks, and other safety equipment in place and in working condition.

Stop installation if any cab part interferes with a tractor control, operator exit, safety device, engine component, exhaust system, PTO, attachment, or required field of view.

These tractors have been in service for many years. Replacement engines, seats, tires, body parts, controls, mower decks, snow equipment, and owner modifications may affect fit or clearance.

The enclosure changes the tractor's outside profile. Therefore, check clearance around garage doors, sheds, trailers, branches, walls, and other objects after installation.

The cab helps reduce exposure to rain, snow, sleet, wind, and overhead sun. However, it is not airtight or watertight. Air, moisture, dust, and weather may enter through normal openings.

Never use an unapproved combustion heater inside the cab. Carbon monoxide and other exhaust gases can cause serious injury or death.

Do not use the cab roof or frame as a cargo rack, lifting point, towing point, tie-down point, attachment mount, handhold, or protective safety structure.

Prepare the enclosure for open-road transport as the current Cab 11105 instructions direct. High road speed can damage flexible enclosure material.

California Proposition 65 Warning

WARNING: Cancer and Reproductive Harm — www.P65Warnings.ca.gov.

This product and the equipment on which it is installed may expose users to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. Possible sources may include engine exhaust, gasoline, oils, batteries, plastics, vinyl, metals, electrical parts, and other equipment components. Follow all product and equipment safety instructions. Use proper ventilation, wash hands after handling applicable materials, and avoid unnecessary exposure.
