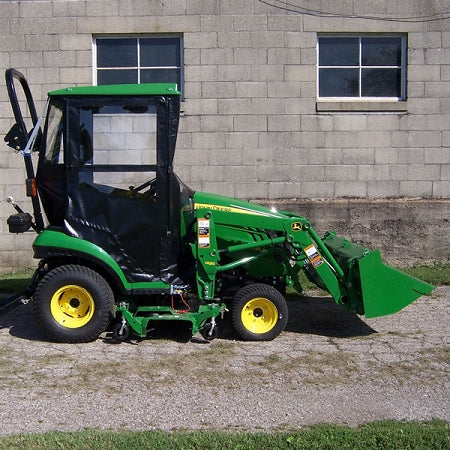

John Deere 1 Series Straight ROPS Hardtop Cab Enclosure 12009
Work through cold wind, rain, and snow with Original Tractor Cab 12009. This hardtop cab fits select John Deere 1023E, 1025R, and 1026R tractors with a straight ROPS. Its clear windows help keep a wide view of the work area. Thus, bad weather does not have to end your day.
The cab surrounds the operator with a hard roof, clear panels, and hinged doors. Plus, its model-fit frame uses the tractor’s existing mounting points. The complete cab weighs about 70 pounds, so it adds useful cover without the mass of a steel cab.
Original Tractor Cab makes Cab 12009 in the USA. It was built for John Deere 1 Series tractors with the correct straight ROPS shape. For more options, view our full range of John Deere hardtop tractor cabs.
All-Season Cover for Your John Deere 1 Series
An open tractor leaves the operator in direct contact with the weather. Cold wind can make snow work feel harsh. Rain may also soak the seat, clothes, and controls. Therefore, a cab adds real value in fall, winter, and spring.
Cab 12009 forms a full weather enclosure around the work area. The hard top helps block rain, snow, sleet, and direct sun from above. Meanwhile, clear side panels help cut wind while keeping the cab bright.
This cab does not heat or cool the air on its own. However, it helps reduce direct contact with cold wind and wet weather. As a result, long jobs may feel less harsh.
Hard Roof and Clear Cab Panels
A firm hardtop covers the operator. Clear, shatter-resistant polycarbonate panels form the standard windows and windshield. Thus, the operator can see the loader, yard, lane, and nearby tools.
The clear material keeps weight low while adding weather cover. It also lets daylight enter from the front, sides, and rear. Plus, the broad view helps when you work near a barn, car, fence, or wall.
Clean the windows with mild soap, cool water, and a soft cloth. Strong cleaners or rough towels may scratch clear plastic. Therefore, test each care product in a small area before wide use.
Hinged Doors on Both Sides
Hinged doors make entry and exit simple. A door on each side gives the operator more than one way into the cab. In addition, firm latches help keep the doors shut during normal use.
Check the latches before each job. Also, make sure the doors do not touch added controls or tools. Stop work if a door, latch, or hinge becomes loose.
Wide View of the Work Area
Clear panels help the operator watch the tractor path. A broad view also helps with loader work, snow care, and yard chores. Still, frost, mist, dirt, and snow can reduce sight.
Always clear every window before moving the tractor. Then, use lights when the work site is dark. Never drive when the view is blocked.
Cab 12009 Straight ROPS Fit Guide
Cab 12009 fits select John Deere 1023E, 1025R, and 1026R tractors with a straight ROPS. The ROPS must rise in the shape shown in the product photos and guide. A forward-leaning ROPS needs a different cab.
Do not choose the cab by model name alone. John Deere changed the ROPS form during the life of the 1 Series. Therefore, inspect the tractor and compare its ROPS shape before you order.
How to Check a Straight ROPS
Stand beside the tractor and look at the ROPS uprights. A straight ROPS rises with little or no forward lean. By contrast, a forward ROPS angles toward the front as it rises.
Photos can help, but a direct check is best. Also, review the tractor serial number and cab guide. If fit is still not clear, please contact Original Tractor Cab before purchase.
Fits Select John Deere 1023E Tractors
Cab 12009 fits a John Deere 1023E when the tractor has the right straight ROPS. The 1023E is a sub-compact tractor made for mowing, loader work, snow care, and small land jobs. Thus, a weather cab can add comfort through many tasks.
Fits Select John Deere 1025R Tractors
The same cab fits a John Deere 1025R with the correct straight ROPS. This model adds features aimed at operator ease while keeping a small tractor size. Cab 12009 can help make cold-weather use more pleasant.
Fits the John Deere 1026R
Cab 12009 also fits the John Deere 1026R with its listed straight ROPS. The 1026R is an earlier 1 Series model with diesel power and hydrostatic drive. Its open operator station gains useful cover from this hardtop enclosure.
Does Not Fit a Forward-Leaning ROPS
Do not install Cab 12009 on a forward-leaning ROPS. The frame and panels were made for the straight style. Therefore, a poor match may cause bad fit, weak mounting, or contact with tractor controls.
Original Tractor Cab offers another cab for listed tractors with a forward ROPS. Verify the shape instead of using the tractor year alone. Small production changes may affect the correct choice.
Cab Height, Weight, and Installation
The installed cab height is about 80 inches from the ground to the top. Yet tires, tread, air pressure, wear, and tractor setup may change the final height. Measure the full tractor after installation.
Cab 12009 weighs about 70 pounds. Even so, use safe lifting help as shown in the instructions. Keep hands clear of frame joints and set each part on a stable site.
Plan on about three to four hours for the first installation. Actual time will vary with tools, skill, and tractor condition. For setup help, see our tractor cab installation manuals.
Uses Existing Tractor Mounting Points
The cab frame uses existing holes on the listed tractor. Thus, normal installation does not call for new holes in the tractor. Follow each step in order and use the supplied hardware.
Keep the fasteners a bit loose during the first fit. Next, align the full frame, doors, and roof. Tighten each point only after all parts sit in the correct place.
Added lights, controls, seats, or custom parts may affect fit. Therefore, inspect the work area before you start. Never cut a safety part or alter the ROPS to install this cab.
Check Door and Control Clearance
Move each tractor control through its full safe range after the cab is in place. Also, check both doors and all latches. No frame or panel should stop safe use of the steering wheel, pedals, hitch, PTO, or loader controls.
Sit in the normal driving pose during the final check. Then, make sure your head, arms, and legs have safe space. Stop the engine before you make any cab change.
Optional Cab Accessories
Cab 12009 can accept select options that add sight, light, and ease. Available items may include a safety-glass windshield, electric wiper, mirrors, and work lights. Product fit and stock can change, so confirm each part before purchase.
Safety-Glass Windshield and Wiper
The standard cab uses a clear polycarbonate windshield. However, an optional safety-glass windshield gives the front of the cab a firm glass panel. A compatible electric wiper can then help clear rain, mist, and wet snow.
The wiper kit requires the right glass windshield. Do not mount a glass-only wiper on the standard plastic panel. Always use the parts named for this cab series.
Mirrors and Work Lights
Side or rear mirrors can help the operator check nearby space. Work lights can also add sight before dawn or after dark. Yet no mirror or light replaces a direct check of the work site.
Use only the right wiring, fuse, and switch parts. Keep wires away from heat, sharp edges, and moving tractor parts. Browse our hardtop cab accessories for current options.
Cab Care and Safe Use
Inspect the cab before each job. Look for loose bolts, torn panels, worn straps, or damaged latches. Also, make sure the roof and frame remain firm.
Wash clear windows by hand with a soft cloth. Next, rinse away grit before you wipe the panel. This step helps reduce marks and scratches.
Remove snow from the roof before storage or travel. Heavy wet snow can add a large load. Therefore, do not let deep snow build up on the cab.
Open-Trailer Transport
High road speed can harm fabric panels and doors. Do not haul the tractor on an open trailer with the cab in place unless you use an approved transport cover and follow its guide. Wind load at road speed is far greater than normal tractor use.
Check the full loaded height before travel. Also, secure the tractor as required by law and the trailer maker. Cab parts must never serve as tie-down points.
John Deere 1023E, 1025R and 1026R Specifications
The John Deere 1023E, 1025R, and 1026R are small compact utility tractors. All three use a liquid-cooled, three-cylinder diesel engine. Their small form suits mowing, loader work, garden care, and snow removal.
These models use a two-range hydrostatic transmission. Separate foot pedals control forward and reverse travel. In addition, four-wheel drive helps on loose soil, wet grass, and snow.
John Deere 1023E Specifications
The John Deere 1023E uses a 22.4-horsepower Yanmar diesel engine. Rated engine speed is 3,200 rpm. Its rear PTO provides about 14.5 horsepower.
A two-range hydrostatic transmission gives smooth speed control. Four-wheel drive comes as part of the tractor setup. Plus, a rear differential lock can add grip when one wheel slips.
The fuel tank holds about 5.6 U.S. gallons. A Category 1 three-point hitch accepts many small tractor tools. The tractor also has rear and mid PTO points for listed equipment.
John Deere 1025R Specifications
The John Deere 1025R uses a 24.2-horsepower, three-cylinder Yanmar diesel engine. Its engine has about 77 cubic inches, or 1.267 liters, of size. Rear PTO power is about 18 horsepower.
A two-range hydrostatic drive uses separate forward and reverse pedals. Power steering also helps with tight work. Meanwhile, four-wheel drive supports loader, snow, and land tasks.
The 1025R offers a Category 1 three-point hitch and rear PTO. A mid PTO can drive a compatible mower deck or front tool. Tool fit depends on the tractor year and mount system.
John Deere 1026R Specifications
The John Deere 1026R is an earlier 1 Series tractor. It uses a three-cylinder, liquid-cooled Yanmar diesel engine with about 25 horsepower. Hydrostatic drive gives simple travel control.
Four-wheel drive, power steering, and a differential lock help with work on varied ground. The tractor also has rear and mid PTO points. Thus, it can run select mower decks and other tools.
A Category 1 three-point hitch serves rear equipment. As with all older tractors, exact specs may vary with serial number and installed parts. Use the tractor label and manual when you need service data.
Loader and Mower Use
John Deere offered compatible front loaders for these 1 Series tractors. Loader lift height and capacity vary by loader and tractor setup. Ballast also plays a key role in safe loader use.
Select mid-mount mower decks give the tractors a broad lawn care role. A drive-over deck can make attachment easier on listed models. However, deck size and mount style change by tractor year.
The cab must not block safe loader or mower control. Check each control after installation. Then, follow all ballast, load, slope, and attachment rules in the equipment manuals.
Three-Point Hitch and PTO
A rear three-point hitch lets the tractor use select blades, spreaders, tillers, and other tools. The rear PTO supplies power to listed equipment. Meanwhile, the mid PTO can serve a mower or front tool.
Never step across a live PTO shaft. Stop the engine and wait for all parts to stop before you leave the seat. The cab does not change any tractor or PTO safety rule.
For current equipment facts, visit the official John Deere compact tractor page. Owners can also use the official John Deere 1023E and 1025R operator manual for safe use and care.
Why Buy Direct from Original Tractor Cab?
Direct sales give you one source for fit help, product guides, and cab options. You can shop by tractor model and ROPS shape instead of trying to adapt a loose enclosure. As a result, choosing the right cab becomes much easier.
ROPS shape remains the key detail for Cab 12009. A model name or year may not tell the full story. So, inspect the tractor and compare it with the cab guide before you order.
The History of Original Tractor Cab Company
Original Tractor Cab began in 1939. At that time, Indiana farmer Stanley Williams needed a way to stay warm and dry on his tractor. So, he built a cab for his own use.
Other farmers soon saw the value of his idea. Williams then placed a small ad in a farm magazine. The strong reply helped turn one farm-built cab into a family business.
World War II brought a change in work. During the war, normal cab output stopped as the company made backpacks and other needed goods for the armed forces. Later, the firm began to make tractor cabs again.
New products came as farm and lawn tools changed. Hardtop cabs, soft enclosures, sunshades, and useful cab parts joined the range. Yet the main goal stayed much the same: help operators work with more cover from the weather.
Today, Original Tractor Cab works in Arlington, Indiana. The company still values useful design, family roots, and American-made products. Read more on the Original Tractor Cab history page.
John Deere 1 Series Cab Questions
Which tractors fit Cab 12009?
Cab 12009 fits select John Deere 1023E, 1025R, and 1026R tractors with a straight ROPS. Confirm the ROPS shape, model, serial number, and setup before purchase.
Does Cab 12009 fit a forward-leaning ROPS?
No. Cab 12009 is for the straight ROPS style. A tractor with a forward-leaning ROPS needs a different cab model.
How tall is the tractor with Cab 12009?
The listed height is about 80 inches from the ground to the cab roof. Tires, wear, pressure, and tractor setup may change the final height, so measure the installed tractor.
How long does cab installation take?
Plan on about three to four hours for the first installation. Actual time depends on tools, skill, tractor condition, and added equipment.
Are the standard windows made from glass?
No. The standard windows use clear, shatter-resistant polycarbonate. An optional safety-glass windshield may be added with a compatible wiper kit.
Is Cab 12009 a rollover cab?
No. Cab 12009 is a weather enclosure only. It is not a ROPS, FOPS, or safety cab and cannot protect the operator during a rollover or impact.
