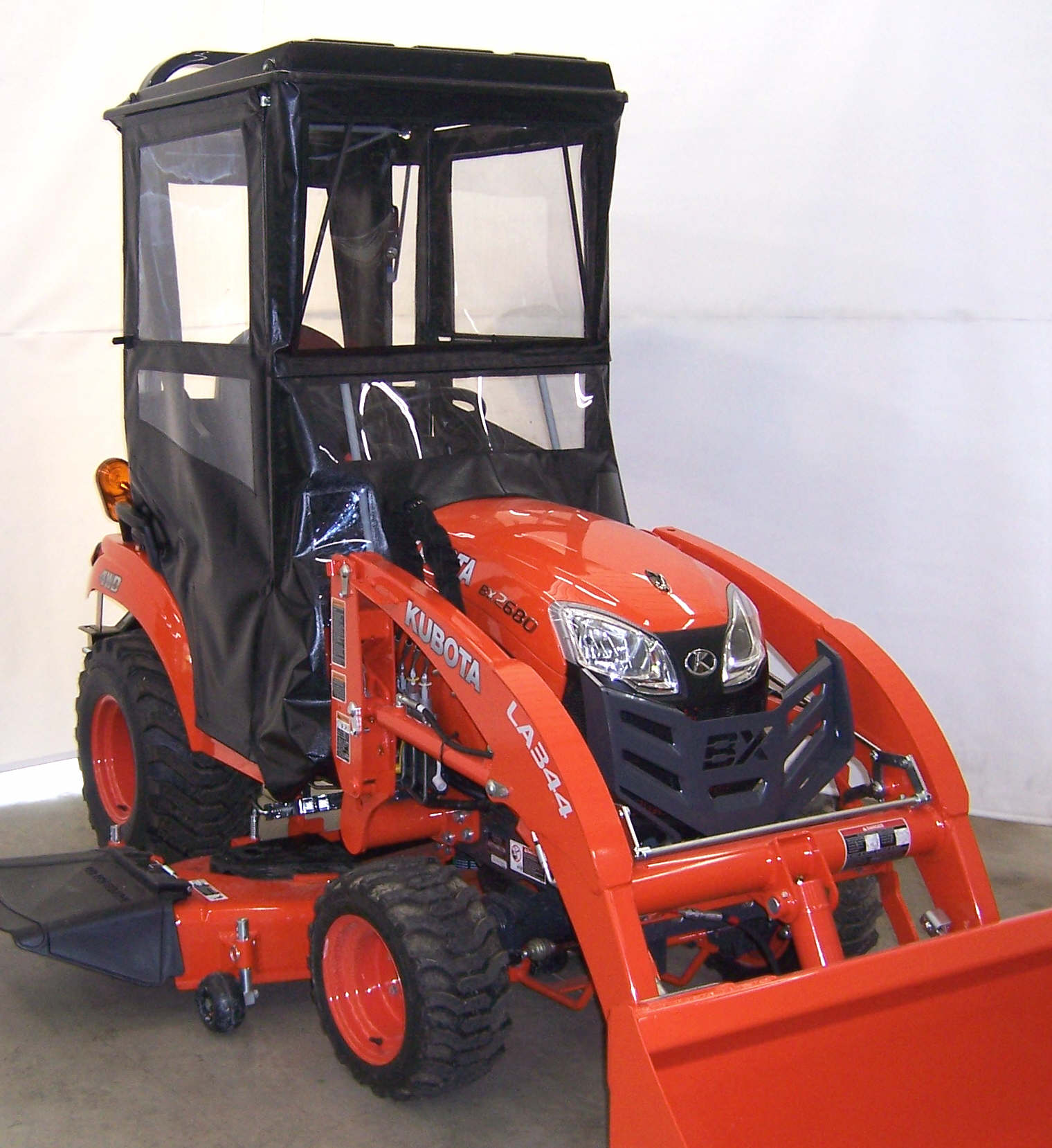

All-Weather Cab Protection for Kubota BX Series Tractors

Your Kubota BX tractor can help with mowing, snow removal and land care. Yet the weather can make each job hard. Rain may soak your clothes. Snow can blow toward the seat. Cold wind may chill your hands and face.

So, Cab 12078 adds a shield around the operator. The hard roof helps shed rain and snow. Clear panels help block wind. Plus, you can still see much of the work area through the windows.

Rain and Sleet Protection

Wet weather can make tractor work less pleasant. Rain may soak your coat in just a few minutes. Also, sleet can sting your face as you drive.

The hard roof helps keep rain off your head and shoulders. Clear front, rear and side panels help block wind-driven water. So, you can work with less direct exposure.

However, this cab is not a watertight room. Some rain and wind may enter through gaps near the tractor frame.

Snow Protection for Winter Work

Snow can blow back toward the seat when you clear a drive or path. A snowblower may send snow into the wind. So, the operator can face snow from more than one side.

Cab 12078 helps block much of that blowing snow. The roof adds cover from above. Also, clear panels help you see the path ahead.

Use only snow tools that fit your tractor and cab. Then, check all tool and control clearance before you start.

Cold Wind Protection

Cold wind can make a mild day feel harsh. It may blow through your coat and gloves. So, a cab can help cut direct wind around the operator.

The enclosure helps shield the front, sides and rear. Yet it has no built-in heat. Dress for the weather and keep fresh air flowing.

Shade from the Summer Sun

The hardtop can also help block direct sun from above. So, it may add shade during warm weather work.

However, a full cab can trap heat on hot days. Keep enough fresh air in the cab. Also, stop work if the air becomes too hot.

Know the Limits of Weather Protection

A cab can help shield you from common rain, snow, sleet and wind. Yet it cannot make severe weather safe.

Large hail, strong storms and flying debris can cause harm. So, stop work and seek safe shelter when storms move in.

Kubota BX1880, BX2380 and BX2680 Cab 12078 Features

Fully Enclosed Hardtop Roof

Cab 12078 has a firm hardtop roof. It helps shed rain and snow from above. Plus, it forms the top of the weather enclosure.

The roof can also block direct sun. Yet it is not a safety guard against falling limbs or debris.

Clear Shatter-Resistant Polycarbonate Windows

A clear view helps when you work near trees, sheds and fences. So, Cab 12078 uses clear polycarbonate window panels.

These panels help block rain, snow and wind. Also, they help you watch the space around the tractor.

Polycarbonate is a tough plastic. However, grit can scratch its surface. So, clean each panel with care.

Two Hinged Doors for Easy Access

Cab 12078 has two hinged doors. One door sits on each side of the cab.

So, the operator can enter or leave from either side when safe. The clear door panels also help with side views.

80-Inch Cab Height

Original Tractor Cab lists a cab height of 80 inches. So, check overhead space before you drive into a shed or garage.

Tire size and tractor setup may affect actual clearance. Also, check for low tree limbs.

Lightweight 70-Pound Cab Design

Cab 12078 weighs about 70 pounds. So, it adds weather cover without the mass of a heavy factory-style cab.

Yet the cab still needs the correct mount hardware. Follow the installation guide for safe assembly.

Optional Glass Windshield

The standard cab uses a clear polycarbonate windshield. However, an optional glass windshield is available.

Glass can support a compatible windshield wiper. So, check the correct windshield kit before you buy.

Optional Electric Windshield Wiper

Rain and wet snow can block your front view. So, an electric wiper may help clear the glass.

The electric wiper kit is an optional accessory. Check its windshield and electrical needs before purchase.

Optional Mirror Kits

Mirrors can help you check the space beside and behind the tractor. So, a mirror kit may add useful views during work.

Yet mirrors do not replace a full check of the work area. Always look before you move.

Optional Light Kits

A light kit can help you see in low light. So, it may be useful for early or late work.

Use only compatible lights. Also, check local rules and tractor electrical limits.

Optional Screen Door Kit 12207

Warm days may call for more fresh air. So, Original Tractor Cab offers Screen Door Kit 12207 for Cab 12078.

The kit has right and left mesh screen doors. Plus, the mesh can help keep insects out while air moves through.

See the Kubota Cab 12078 Screen Door Kit 12207 for warm weather use.

One-Year Manufacturer's Warranty

Original Tractor Cab lists a one-year warranty for Cab 12078. So, review the full warranty terms before you buy.

The warranty does not make the cab a safety structure. It remains a weather enclosure for the operator.

Kubota BX1880, BX2380 and BX2680 Cab Fitment

Does Cab 12078 Fit the Kubota BX1880?

Yes. Original Tractor Cab lists the Kubota BX1880 as a fit for Hardtop Cab 12078.

The BX1880 is a small diesel tractor. It can help with mowing, snow removal and land care. So, the cab adds useful weather cover to the operator.

Does Cab 12078 Fit the Kubota BX2380?

Yes. Cab 12078 also fits the Kubota BX2380. This model offers more engine power than the BX1880.

Yet both tractors share many of the same yard tasks. So, the cab can help on cold and wet days.

Does Cab 12078 Fit the Kubota BX2680?

Yes. Original Tractor Cab lists the Kubota BX2680 as a fit for Cab 12078.

The BX2680 has the most engine power of these three BX models. So, it can serve more demanding tasks with the right tools.

Check Your Tractor and ROPS Setup

Cab 12078 is a model-fit weather enclosure. Yet tractor options may affect fit.

So, check the model, ROPS and mount points before purchase. Also, review the cab guide for the correct setup.

Front Loader Clearance

A front loader may move near the cab frame. So, check the full range of loader travel.

The loader arms and controls must not hit the cab. Also, never remove factory safety parts to make it fit.

Backhoe and Rear Tool Clearance

A backhoe needs room near the rear of the tractor. So, do not assume Cab 12078 will fit with a backhoe.

Check with Original Tractor Cab before use with a backhoe or other rear tool. The cab must not block safe tool use.

Kubota BX1880, BX2380 and BX2680 Cab Installation

Typical 3-to-4-Hour Installation

Original Tractor Cab lists a typical install time of 3 to 4 hours for Cab 12078. So, plan enough time to check all parts and mounts.

The time may vary with your tools and experience. Also, added tractor parts may affect the work.

Read the Cab 12078 Installation Guide

Start with the full cab guide. Then, lay out all frame parts, roof panels and hardware.

Follow each mount step in order. Also, check that both doors open and close with ease.

Find the Kubota BX1880, BX2380 and BX2680 Cab 12078 installation manual on our installation manuals page.

Check the Doors and Tractor Controls

The cab must not block pedals, levers or steering. So, test each control before use.

Open and close both doors. Also, make sure you can enter and leave the tractor with ease.

Clean the Clear Polycarbonate Windows

Dirt and grit can scratch clear plastic. So, rinse off loose dirt before cleaning.

Use a cleaner safe for polycarbonate. Also, avoid harsh chemicals and rough cloths.

Check Cab Mounts and Door Hardware

Loose hardware can cause wear. So, check the cab mounts from time to time.

Keep the door latches in good shape. Also, look for worn or torn weather panels.

Prepare the Cab for Open Transport

High wind during transport can harm soft cab panels. So, follow the cab manual before hauling the tractor.

Remove panels if the manual directs you to do so. Then, store them in a clean and dry place.

Buy Your Kubota BX1880, BX2380 or BX2680 Cab Direct

Original Tractor Cab makes Cab 12078 for the Kubota BX1880, BX2380 and BX2680. So, you can buy your weather cab direct from the maker.

Our team can help with cab fit and upgrade questions. Plus, you can find more Kubota weather covers on our site.

Browse our Kubota tractor cabs, enclosures and sunshades for more model-fit products.

If you own a Kubota BX23S, see our Kubota BX23S hardtop cab for that tractor model.

You can also view our Kubota B2301 and B2601 hardtop cab for a different tractor series.

Ready for more cover from rain, snow, sleet and wind? Choose Cab 12078 and order direct from Original Tractor Cab.

Kubota BX1880, BX2380 and BX2680 Tractor Specifications

The Kubota BX1880, BX2380 and BX2680 are sub-compact diesel tractors. They use hydrostatic drives and four-wheel drive. Plus, they can run many compatible yard and land tools.

Engine power varies by model. So, check the exact tractor and model year before you order parts or tools.

Kubota BX1880 Engine Specifications

The Kubota BX1880 uses a liquid-cooled, three-cylinder diesel engine. Its engine model is D722.

The engine has 719 cc of displacement. Also, it produces 16.6 gross horsepower at 3,200 rpm.

The BX1880 has 13.7 PTO horsepower. So, it can power compatible rear and mid PTO tools.

Kubota BX2380 Engine Specifications

The Kubota BX2380 uses a liquid-cooled, three-cylinder diesel engine. Its engine model is D902.

The engine has 898 cc of displacement. Plus, it produces 21.6 gross horsepower at 3,200 rpm.

The BX2380 has 17.7 PTO horsepower. So, it offers more PTO power than the BX1880.

Kubota BX2680 Engine Specifications

The Kubota BX2680 uses a liquid-cooled, three-cylinder diesel engine. Its engine model is D1005.

The engine has 1,001 cc of displacement. Kubota's 2026 product guide lists 23.3 gross horsepower.

Also, that guide lists 19.2 PTO horsepower. Earlier Kubota guides list 24.8 gross horsepower and 19.5 PTO horsepower.

So, use the exact model year and tractor manual when you compare engine ratings.

Kubota BX Series Hydrostatic Transmission

All three BX tractors use hydrostatic transmissions. Each has high and low ranges.

So, the operator can match ground speed to the job. The tractors also use four-wheel drive.

Kubota BX Series PTO Specifications

These BX models have live independent PTOs with hydraulic clutches.

The rear PTO runs at 540 rpm. Also, the mid PTO runs at 2,500 rpm.

So, the tractors can power compatible rear and mid-mount tools within their rated limits.

Kubota BX Series Fuel Capacity

The BX1880, BX2380 and BX2680 each have a fuel tank capacity of 6.6 US gallons.

Diesel fuel powers the three-cylinder engines. So, use the fuel and service steps in the Kubota manual.

Kubota BX Series Hydraulic System

The BX Series has hydraulic power steering. Also, Kubota lists a pump output of 6.2 gallons per minute.

The hydraulic system helps power the hitch and compatible tools. Yet safe loads depend on the full setup.

Kubota BX Series Three-Point Hitch

The BX1880, BX2380 and BX2680 use Category I rear three-point hitches.

Kubota lists a lift capacity of 680 pounds at 24 inches behind the hitch pins.

So, check tool weight, ballast and tractor limits before you lift or tow a load.

Kubota BX1880 Dimensions and Weight

The BX1880 is about 95.5 inches long with its three-point hitch. Its listed minimum width is 44.1 inches.

The wheelbase is 55.1 inches. Also, the listed tractor weight is 1,404 pounds.

Kubota BX2380 Dimensions and Weight

The BX2380 shares the 95.5-inch length and 55.1-inch wheelbase of the BX Series.

Kubota lists a tractor weight of 1,454 pounds. So, it weighs more than the BX1880 in the listed setup.

Kubota BX2680 Dimensions and Weight

The BX2680 also has a 95.5-inch listed length and a 55.1-inch wheelbase.

Its listed tractor weight is 1,520 pounds. Also, its minimum width is about 45.1 inches.

Kubota BX1880 vs. BX2380 vs. BX2680

The BX1880 has 16.6 gross horsepower. In contrast, the BX2380 has 21.6 gross horsepower.

The BX2680 has the highest engine rating of these three BX tractors. So, it offers more power for compatible tools.

All three use hydrostatic transmissions and four-wheel drive. Plus, they share many of the same yard and land care uses.

Kubota BX Series Mower Decks

A mid-mount mower can help cut large lawns. The BX Series mid PTO helps power compatible mower decks.

Yet deck size and mount parts may vary. So, check the exact deck and tractor model.

Kubota BX Series Front Loaders

A front loader can help move soil, mulch and loose loads. So, these tractors can serve many land jobs.

Yet loader arms need room to move. Check the cab and loader clearance before use.

Kubota BX Series Snow Removal

A compatible snowblower or blade can help clear a drive. So, these tractors may serve winter work.

Cab 12078 helps shield the operator from wind and blowing snow. Yet each tool must fit the tractor and cab.

Official Kubota BX Series Specifications

For engine, PTO, hitch, size and tractor specs, view the official Kubota 2026 product guide .

For model details and current tractor information, visit the official Kubota BX Series tractor page .

Tractor specs may change by model year, tire type and added tools. So, check the exact tractor and serial number before you order parts.

The History of Original Tractor Cab Company Since 1939

A Farmer's Idea in 1939

Original Tractor Cab began in 1939. At that time, farmer Stanley Williams needed more cover from harsh weather while he worked.

So, Stanley made a cab for his own tractor. It helped shield him from rain, wind and cold.

Other farmers soon saw his new cab. They too had to work in bad weather.

So, they asked for the same kind of cover. That first cab became the start of Original Tractor Cab Co., Inc.

From One Cab to a Family Business

Stanley knew how hard farm work could be. He also knew how cold and wet the job could feel.

So, he kept making useful cab designs. More farmers saw the value of weather cover.

As demand grew, the company grew as well. Yet its main goal stayed much the same.

Help people work with less harsh weather on their bodies.

Original Tractor Cab During World War II

World War II brought new needs for goods and supplies. So, Original Tractor Cab changed its work to help the war effort.

The company made backpacks and other needed military goods. This work showed the range of its manufacturing skills.

After the war, the company went back to making weather covers for farm and outdoor work.

New Cabs for Lawn and Garden Equipment

Outdoor machines changed as the years went by. Lawn tractors and snowblowers became more common.

So, Original Tractor Cab added new products for these machines. The company grew beyond its first farm tractor cabs.

More homeowners and grounds crews could now add weather cover to the machines they used.

Sunshades for Warm Weather Work

Cold weather was not the only concern. Hot sun could also make long days hard.

So, the company added sunshades to its product range. These shades help block direct sun from above.

As a result, Original Tractor Cab could help more operators through the year.

Three Generations of American Manufacturing

The Williams family carried the company forward through three generations. Each generation brought new ideas and products.

Yet the core goal stayed the same. Make useful weather covers for people who work outdoors.

Today, the company makes hardtop cabs, soft enclosures, sunshades and cab parts. Plus, its products serve many types of outdoor equipment.

Made in Arlington, Indiana

Original Tractor Cab is based in Arlington, Indiana. We take pride in our long history of American manufacturing.

Our products help farmers, homeowners and grounds crews work with more comfort. So, we keep making weather covers for the machines they use.

Cab 12078 Carries on the Tradition

The Kubota BX1880, BX2380 and BX2680 came long after Stanley made his first cab. Yet the need for weather cover remains.

Rain still falls. Snow still blows. Cold wind can still make work feel long.

So, Cab 12078 brings that same basic idea to these Kubota sub-compact tractors.

Learn more about our family roots on the Original Tractor Cab company history page .

Original Tractor Cab – Made RIGHT in USA Since 1939!

Kubota BX1880, BX2380 and BX2680 Hardtop Cab FAQs

What Kubota tractors fit Cab 12078?

Cab 12078 fits the Kubota BX1880, BX2380 and BX2680 sub-compact tractors. Check the installation guide before purchase.

Does Cab 12078 help block rain and snow?

Yes. The hard roof and clear panels help shield the operator from rain, snow, sleet and wind. Yet the cab is not fully sealed.

Does Cab 12078 have two doors?

Yes. The cab has two hinged doors. One door sits on each side of the enclosure.

What type of windows does the cab use?

The base cab uses clear shatter-resistant polycarbonate window panels.

How tall is Cab 12078?

Original Tractor Cab lists a cab height of 80 inches. Check actual clearance on your tractor.

How much does Cab 12078 weigh?

Cab 12078 weighs about 70 pounds. Use the correct mount hardware for safe installation.

How long does installation take?

Original Tractor Cab lists a typical install time of 3 to 4 hours. Actual time may vary.

Can I add a glass windshield and wiper?

Yes. Optional glass windshield and electric wiper kits are available. Check the correct kit for Cab 12078.

Can I add screen doors?

Yes. Screen Door Kit 12207 fits Cab 12078. It adds mesh doors for warm weather ventilation.

Does the cab have a warranty?

Yes. Original Tractor Cab lists a one-year manufacturer's warranty for Cab 12078. Review the full terms.

Is this a genuine Kubota OEM cab?

No. Original Tractor Cab makes this aftermarket weather enclosure. It is not a genuine Kubota OEM item.

Order Your Kubota BX1880, BX2380 or BX2680 Hardtop Cab 12078

Rain, snow and cold wind do not have to make every tractor job feel harsh.

Our hardtop cab helps keep much of that weather off the operator. Plus, the clear panels help you see the work area.

So, if you own a Kubota BX1880, BX2380 or BX2680, choose Cab 12078 for more weather cover.

Buy direct from Original Tractor Cab. We make our products in the USA and have served outdoor workers since 1939.

Non-OEM, Safety and Liability Disclaimers

Aftermarket and Non-OEM Product Disclaimer

This is an aftermarket product produced by Original Tractor Cab Co., Inc. It is not a genuine Kubota OEM item. Original Tractor Cab Co., Inc. is not affiliated with, sponsored by or endorsed by Kubota Tractor Corporation.

Kubota, BX1880, BX2380, BX2680 and related model names are trademarks of their respective owners. We use those names only to identify compatible equipment.

Operator Safety and Liability Disclaimer

This cab provides limited weather protection only. It is not a rollover protective structure (ROPS), falling object protective structure (FOPS), collision guard, debris shield or certified safety cab.

This product will only help protect from weather elements, not rollover, collision, falling objects, flying debris or other hazards. Never rely on the cab to prevent injury or death.

Always follow the Kubota operator manual and Original Tractor Cab installation guide. Keep all factory guards and safety devices in place. Never remove or alter factory safety equipment to install the cab.

The cab changes the tractor's height, width and sight lines. So, check all clearances before use. Also, make sure the cab does not block steering, pedals, controls, loader arms, PTO shafts or other tools.

Diesel engine exhaust contains harmful gases, including carbon monoxide. Never run the tractor in a closed or poorly ventilated area. Stop use if exhaust fumes enter the cab.

Follow the cab manual before transport on an open truck or trailer. Remove soft panels when the manual directs.

California Proposition 65 Warning

WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov .
