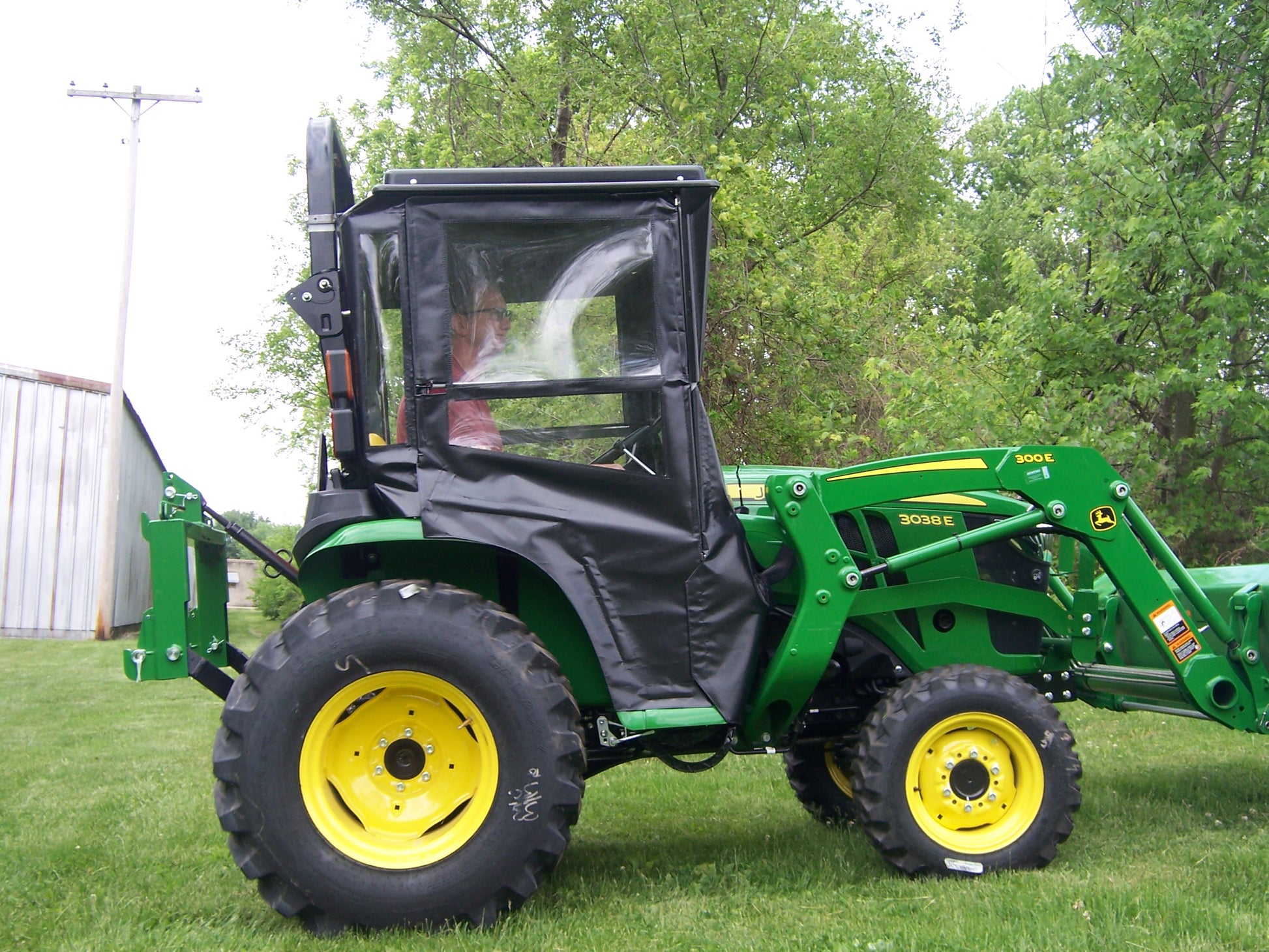

John Deere 3025E, 3032E and 3038E Hardtop Cab 40410
Work through cold wind, rain, sleet, and snow with Original Tractor Cab 40410. This hardtop cab fits select 2018 and newer John Deere 3025E, 3032E, and 3038E compact tractors. The correct tractor has a rear fuel tank and folding ROPS. Thus, checking the tractor layout before purchase is vital.
A hard ABS roof adds firm cover above the seat. Plus, clear side and rear panels help keep a wide view of the work site. The included safety-glass windshield and electric wiper help clear rain, mist, and wet snow.
Original Tractor Cab makes Cab 40410 in the USA. Its model-fit frame uses existing tractor holes, so normal installation needs no drilling. For more options, view our full range of John Deere hardtop tractor cabs.
All-Season Weather Protection for John Deere 3E Tractors
An open tractor leaves the operator in direct contact with the weather. Cold wind can make a short snow job feel long. Rain may also soak the seat, clothes, and controls. Therefore, a full cab can add real comfort in fall, winter, and spring.
Cab 40410 surrounds the work area with a roof, doors, windshield, and rear panel. This enclosure helps block rain, snow, sleet, and cold wind. As a result, you may spend more time at work when the weather turns bad.
The cab does not heat or cool the air on its own. However, it helps reduce direct contact with wet and cold weather. An approved heater may add warmth when it is installed and used as directed.
Durable ABS Plastic Hardtop
A firm ABS plastic roof covers the operator. The hardtop helps shed rain and falling snow. Plus, it gives the enclosure a clean and finished look.
Clear heavy snow from the roof before storage. Wet snow can add a large load. Therefore, do not let deep snow remain on the cab.
Included Safety-Glass Windshield
Cab 40410 includes a safety-glass windshield. Glass gives the front of the cab a firm, clear panel. It also supports the included electric wiper.
The windshield leans toward the front. This angle helps reduce glare and direct contact with falling rain or snow. Thus, the operator may gain a clearer view during bad weather.
Always clear frost, mist, snow, and dirt before moving the tractor. Stop at once if the view becomes blocked. Never drive when you cannot see the full work path.
Included Electric Windshield Wiper
An electric wiper comes with this cab. The wiper helps move rain, mist, and wet snow from the safety-glass windshield. As a result, it adds real value during wet work.
Inspect the blade before each season. Also, replace a worn blade before it scratches the glass or leaves broad streaks. Keep all wires away from heat, sharp edges, and moving tractor parts.
Clear Side Doors and Rear Window
Clear, shatter-resistant polycarbonate forms the side door windows and rear panel. This light material gives the operator a broad view around the tractor. Plus, it lets daylight enter the cab.
Wash the clear panels with mild soap, cool water, and a soft cloth. First, rinse away dust and grit. Then, wipe each panel with light pressure.
Strong cleaners may harm or cloud clear plastic. Rough towels can also leave marks. Therefore, test any care product in a small spot first.
Hinged Doors with Latches
Hinged doors make entry and exit fast. Each door has a latch that helps hold it shut during normal work. In addition, doors on both sides give the operator more than one path to the seat.
Check each latch before use. Then, make sure both doors clear the tractor controls. Stop work if a hinge, door, or latch becomes loose.
Cab 40410 Fit Guide
Cab 40410 fits select 2018 and newer John Deere 3025E, 3032E, and 3038E tractors. The correct tractor has its fuel tank and filler behind the seat. It also has the later folding ROPS setup.
Model names alone do not prove fit. John Deere changed the tractor layout during the life of the 3E Series. Therefore, inspect the fuel tank, ROPS, model year, and serial number before purchase.
Rear Fuel Tank Is Required
Look behind the tractor seat for the fuel tank and filler. Cab 40410 is made for this later rear-tank layout. An older tractor with a different fuel system needs Cab 11980 instead.
Do not move the fuel tank or alter the cab to force a fit. Fuel system changes can create a fire or leak risk. If the layout is not clear, please contact Original Tractor Cab.
Fits Select 2018 and Newer John Deere 3025E Tractors
Cab 40410 fits the later John Deere 3025E with the listed rear fuel tank and ROPS setup. The 3025E is a compact tractor made for mowing, loader work, snow care, and land jobs. Thus, a cab can add comfort during many tasks.
Fits Select 2018 and Newer John Deere 3032E Tractors
The same cab fits the later John Deere 3032E when its layout matches the fit guide. This tractor adds more engine power than the 3025E while keeping the same basic 3E form. Clear cab panels help with sight during loader and snow work.
Fits Select 2018 and Newer John Deere 3038E Tractors
Cab 40410 also fits the later John Deere 3038E with the correct rear tank and folding ROPS. The 3038E provides the most engine power in this three-model group. Therefore, it suits owners who need more power for large tools and hard jobs.
Folding ROPS Cannot Fold with the Cab Installed
The tractor ROPS may fold when the cab is not in place. However, it cannot fold down while Cab 40410 remains installed. The cab frame needs the ROPS in its upright work position.
Never cut, drill, weld, remove, or alter the ROPS to change this limit. Keep it upright and locked as the tractor guide directs. Use the seat belt with the ROPS in the safe operating position.
Older 3E Tractors Need a Different Cab
Cab 40410 does not fit the older tractor layout with a different fuel tank site. Those machines use another cab design. Check the fuel filler instead of relying on the tractor name alone.
A tractor sold or titled in 2018 may not match a simple year rule. Production date and model year can differ. So, use the serial number, fuel tank site, and ROPS form to confirm fit.
No-Drill Cab Installation
Cab 40410 mounts through existing tractor holes. Thus, normal installation does not require drilling into the tractor. Plan on about three to four hours for the first setup.
Actual time will vary with tools, skill, tractor condition, and added gear. Read the full guide before you begin. Then, visit our tractor cab installation manuals for current setup details.
Align the Cab Before Final Tightening
Sort all frame parts and hardware before assembly. Next, place each mount as shown in the guide. Keep the fasteners a bit loose during the first fit.
Align the doors, roof, windshield, and rear panel before final tightening. This step helps the full enclosure sit straight. After that, tighten each point in the stated order.
Check Tractor Control Clearance
Move every control through its full safe range after installation. Also, check the steering wheel, pedals, PTO control, hitch lever, and loader joystick. No cab part should block normal use.
Sit in the usual driving pose during the final check. Then, make sure your head, arms, and legs have enough room. Stop the engine before making any cab change.
Measure the Installed Tractor
Tire type, tread, wear, air pressure, and tractor setup affect the final height. Therefore, measure the tractor after the cab is installed. Check all shed doors, trailers, trees, and low roofs before use.
Low limbs can catch the roof or frame. A hard strike may harm both the cab and tractor. Stop and inspect every mount after any contact.
Cab Accessories and Comfort Options
Cab 40410 already includes a safety-glass windshield and electric wiper. Still, select mirrors, work lights, switches, and warning lights can add more use. Product fit and stock may change.
Side and Rear Mirrors
Mirrors can help the operator check space near the tractor. They are useful near walls, vehicles, tools, and tight lanes. Yet no mirror replaces a direct look at the site.
Set each mirror before you move. Also, keep the glass clean and firm. Replace broken or loose parts at once.
LED Work Lights
LED work lights can add sight before dawn or after dark. Front lights help show the travel path, while rear lights can help near a back blade or other tool. Still, added light does not make an unsafe site safe.
Use the right wiring, fuse, and switch parts. Keep wires away from heat and moving equipment. Browse our hardtop cab accessories for current options.
Cab Care and Seasonal Storage
Inspect the cab before each job. Look for loose bolts, torn panels, worn seals, or damaged latches. Also, make sure the roof and windshield remain firm.
Clean the safety-glass windshield with a glass-safe product. By contrast, use mild soap and water on the clear plastic panels. This care helps protect each type of window.
Remove Dirt, Ice, and Snow
Clear all windows before moving the tractor. Also, remove ice from the door edges and latches. Never force a frozen door since the panel or hinge may tear.
Use a soft brush to remove loose snow. Avoid sharp scrapers on clear plastic. Warm the panel with indoor air rather than open flame or high heat.
Open-Trailer Transport
High road speed can damage fabric panels and doors. Do not haul the tractor on an open trailer with the cab in place unless you use an approved transport cover and follow its guide. Road wind is far stronger than normal tractor travel.
Secure the tractor with legal frame tie-down points. Never use the cab as a tie-down. Also, measure the full loaded height before transport.
John Deere 3025E, 3032E and 3038E Specifications
The John Deere 3025E, 3032E, and 3038E are compact utility tractors. All three use a three-cylinder Yanmar diesel engine, four-wheel drive, and hydrostatic travel control. Yet engine power and some engine details vary by model.
These tractors suit mowing, loader work, snow removal, garden care, and small farm tasks. A Category 1 three-point hitch supports many rear tools. In addition, an independent 540-rpm rear PTO drives compatible equipment.
John Deere 3025E Engine Specifications
The John Deere 3025E uses a 24.7-horsepower diesel engine in the 2018-era configuration. Current published versions list about 24 horsepower. Engine size is about 100 cubic inches, or 1.64 liters.
A liquid cooling system helps manage engine heat. The three-cylinder design provides smooth power for loader, mower, and rear-tool work. Rated engine speed is about 2,500 rpm.
John Deere 3032E Engine Specifications
The John Deere 3032E provides about 31 horsepower. Its three-cylinder diesel engine has about 100 cubic inches, or 1.64 liters, of size. Thus, it adds more power than the 3025E while keeping a similar tractor form.
The engine uses liquid cooling and a dry air cleaner. An exhaust filter helps meet emissions rules. Follow the tractor guide for automatic and parked filter cleaning.
John Deere 3038E Engine Specifications
The John Deere 3038E provides about 37 horsepower. Its three-cylinder diesel engine has about 96 cubic inches in current published data. This higher power level helps with larger tools and demanding work.
Liquid cooling manages engine heat. An exhaust filter also forms part of the emissions system. Avoid needless idle time and use the correct low-sulfur diesel fuel and engine oil.
Hydrostatic Transmission
A hydrostatic transmission gives simple travel control. Separate pedals control forward and reverse motion. Therefore, the operator can change speed without a manual gear shift.
Hydrostatic drive works well during loader jobs and tight yard work. Still, the correct range should match the load and travel speed. Use a low range for hard pulling or slow work.
Standard Four-Wheel Drive
Four-wheel drive helps the tractor work on snow, loose soil, and wet ground. It also supports loader use when the surface allows safe work. Yet added grip does not make every slope safe.
Use four-wheel drive as the tractor guide directs. Slow down before turns and slopes. Also, avoid ground that exceeds the maker’s safe limits.
Power Steering and Wet-Disc Brakes
Power steering reduces effort during loader and mower work. It also helps with turns in tight areas. Meanwhile, wet-disc brakes provide enclosed stopping parts.
Test the brakes before each job. Never move the tractor if a pedal, brake, or steering part does not work as it should. The cab does not change any tractor safety rule.
Category 1 Three-Point Hitch
A Category 1 three-point hitch accepts many compact tractor tools. Owners can use listed blades, cutters, spreaders, tillers, and other gear. Tool weight and size must remain within the tractor limits.
Published lift capacity is about 1,356 pounds at 24 inches behind the hitch points on comparable 3E models. Actual safe use depends on the tool, ballast, slope, tires, and tractor setup. Never treat lift capacity as a safe load in every condition.
Independent Rear PTO
The rear PTO runs at 540 rpm for compatible tools. Independent engagement lets the operator control PTO power without a manual clutch pedal. Still, all guards must remain in place.
Stop the engine before you approach a shaft or tool. Wait for every part to stop before leaving the seat. Never step over a live driveline.
300E Front Loader Compatibility
The John Deere 300E loader fits listed 3025E, 3032E, and 3038E tractors. Published loader data lists a lift height near 84 inches at the pivot point on common setups. Capacity depends on the point of measurement and tractor setup.
Correct rear ballast is vital during loader work. Keep the bucket low during travel. Also, avoid sudden turns or stops with a raised load.
Tractor Dimensions and Tires
Common 3E tractor setups use a wheelbase near 62.8 inches. Tire sizes vary with turf, industrial, or farm tread. Therefore, overall width and cab height may also change.
Added ballast, loaders, tools, and tire fill increase machine weight. Check floor, trailer, and ramp limits before transport. Use the tractor serial number when exact figures matter.
For current machine details, visit the official John Deere 3038E product page. Owners can also use the official John Deere 3025E, 3032E, and 3038E operator manual for safe use and care.
Why Buy Direct from Original Tractor Cab?
Direct sales give you one source for fit help, manuals, and cab options. You can shop by tractor layout instead of trying to adapt a loose enclosure. As a result, choosing the correct cab becomes much easier.
The rear fuel tank remains a key fit detail for Cab 40410. Model name and year may not tell the full story. So, inspect the tractor before you order.
The History of Original Tractor Cab Company
Original Tractor Cab began in 1939. At that time, Indiana farmer Stanley Williams needed a way to stay warm and dry on his tractor. So, he built a cab for his own use.
Other farmers soon saw the value of his idea. Williams then placed a small ad in a farm magazine. The strong reply helped turn one farm-built cab into a family business.
World War II brought a change in work. During the war, normal cab output stopped as the company made backpacks and other needed goods for the armed forces. Later, the firm began to make tractor cabs again.
New products came as farm and lawn tools changed. Hardtop cabs, soft enclosures, sunshades, and useful cab parts joined the line. Yet the main goal stayed much the same: help operators work with more cover from the weather.
Today, Original Tractor Cab works in Arlington, Indiana. The company still values useful design, family roots, and American-made products. Read more on the Original Tractor Cab history page.
John Deere 3E Cab Questions
Which tractors fit Cab 40410?
Cab 40410 fits select 2018 and newer John Deere 3025E, 3032E, and 3038E tractors with a rear fuel tank and the later folding ROPS. Confirm the model, year, serial number, fuel tank site, and ROPS before purchase.
How can I tell if my tractor needs Cab 40410?
Look for the fuel tank and filler behind the seat. Cab 40410 is made for that later rear-tank layout. Older tractors with another fuel tank site need a different cab.
Can I fold the ROPS with the cab installed?
No. The folding ROPS must remain upright while Cab 40410 is installed. Never alter the ROPS or cab to make it fold.
Does Cab 40410 include a glass windshield?
Yes. The cab includes a safety-glass windshield and an electric wiper. Clear polycarbonate forms the side and rear windows.
Does installation require drilling?
No. Cab 40410 uses existing tractor mounting holes. Normal installation takes about three to four hours.
Is Cab 40410 a rollover cab?
No. Cab 40410 provides weather protection only. It is not a ROPS, FOPS, or certified safety enclosure.
Product and Safety Disclaimers
Non-OEM and Liability Disclaimer
This is an aftermarket product made by Original Tractor Cab Co., Inc. It is not a genuine John Deere OEM item. Deere & Company does not make, sponsor, approve, or endorse it. John Deere, 3025E, 3032E, 3038E, and all related names belong to their owner and identify product fit only. This cab helps protect the operator from normal weather elements. It does not protect against rollover, collision, lightning, hail, falling objects, branches, thrown items, or flying debris. The cab is not a ROPS, FOPS, or certified safety enclosure. Never remove, drill, cut, weld, or alter the factory ROPS to install the cab. Keep the ROPS upright and locked, and use the seat belt as directed by the tractor maker. Confirm the model, year, serial number, fuel tank site, ROPS form, fit, clearance, and safe control use before installation. Read and follow all cab, tractor, loader, mower, PTO, and attachment instructions.
California Proposition 65 Warning
WARNING: This product can expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.
