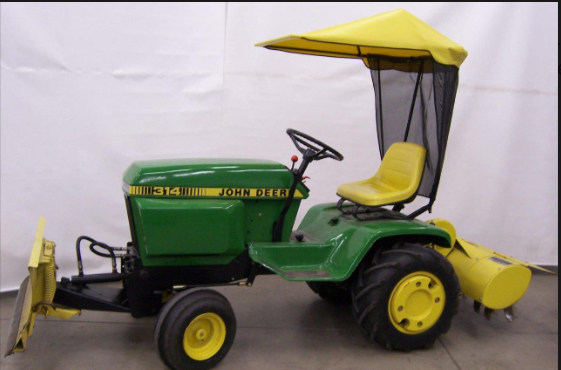

John Deere 300, 312 and 314 Sunshade 9407
Add cool shade to a classic John Deere garden tractor. Original Tractor Cab Sunshade 9407 fits the early John Deere 300 Series. Its model-fit frame holds a wide canopy above the seat. Thus, it helps keep direct sun off you as you mow.
The open sides let fresh air move near the seat. Plus, you keep a clear view of the lawn and mower path. This simple design adds shade without the closed feel of a full cab.
Original Tractor Cab makes Sunshade 9407 in Arlington, Indiana. The shade fits the John Deere 300, 312, and 314 garden tractors. For more fit choices, view our full range of John Deere tractor sunshades.
Cool Shade for a Classic John Deere Tractor
Hot sun can make a short mow feel long. Heat may also add stress as you work. Therefore, a sunshade can make warm days more pleasant.
The canopy helps block direct sun from above. Meanwhile, its open form lets air flow from each side. As a result, you gain shade while you still enjoy the feel of an open garden tractor.
Sun angles change as the day goes on. So, the shaded area will move with the time, slope, and travel path. Wear sun-safe clothes and use skin care when needed since an open canopy cannot block every ray.
Model-Fit Sunshade Frame
Sunshade 9407 mounts to the early John Deere 300 Series. Its frame places the canopy over the work area while keeping the sides open. Thus, the shade adds comfort without blocking the normal path to the seat.
Model-specific hardware also gives the unit a neat look. Still, older tractors may have new seats, lights, controls, or custom parts. Check the full setup before you order.
Never cut or bend the frame to force a fit. A change may weaken a part or create a sharp edge. Instead, please contact Original Tractor Cab if your tractor has been changed.
Open-Air Mowing Comfort
Open sides make it easy to see trees, beds, walls, and other lawn sites. They also let heat move away from the seat. Therefore, the operator can enjoy shade with less trapped air.
The canopy may help shed light drops from above. However, Sunshade 9407 is not a full weather enclosure. Rain, wind, snow, sleet, and hail can still reach you from each side.
Stop mowing when a storm makes the job unsafe. Also, leave the tractor if you see lightning or face high wind. A sunshade must never serve as storm cover.
Sunshade 9407 Fit Guide
This sunshade fits the early John Deere 300 Series garden tractors listed as the John Deere 300, 312, and 314. These model names do not refer to the newer X300 Series. Therefore, check the full name and serial tag before purchase.
Fit may change if a prior owner added a tall seat, bagger, rack, roll bar, cab part, or other tool. Older tractors may also have parts from a different model. Confirm the frame, fenders, seat area, and rear mounts before you install the shade.
John Deere 300 Sunshade Fit
Sunshade 9407 fits the early John Deere 300 garden tractor. John Deere built this model in the 1970s as a strong garden tractor for mowing and yard work. Its open seat makes a sunshade a useful warm-weather option.
John Deere 312 Sunshade Fit
The same sunshade fits the John Deere 312 garden tractor. This model followed the 300 and kept a similar basic form. Thus, owners can add shade while they keep the classic open-air style.
John Deere 314 Sunshade Fit
Sunshade 9407 also fits the John Deere 314. This later model used the same early 300 Series idea with more engine power than the 312. A canopy can add welcome shade during long lawn and garden jobs.
Easy Sunshade Installation and Care
Read the full guide before you begin. First, sort the parts and check the tractor for added gear. Then, place the frame parts as shown in the instructions.
Keep each fastener a bit loose during the first fit. Next, align the full frame and canopy over the seat. Tighten the hardware only after all parts sit in the right place.
Installation time will vary with tools, skill, and the state of the tractor. Rust, old repairs, or custom parts may add more work. For added help, see our sunshade installation manuals.
Check the Shade Before Each Use
Look at each mount before you start the engine. Also, check the frame and top for wear or damage. Tighten loose parts before you mow.
Low limbs can catch a canopy. Shed doors and trailer roofs may also have low space. Therefore, check the full height before you drive under any fixed item.
Do not hold the shade as you get on or off the tractor. The frame is not a handrail or safety bar. Use the steps and grips shown in the tractor guide.
Clean and Store the Sunshade
Use mild soap, cool water, and a soft cloth to clean the top. After that, rinse it well and let it air dry. Strong cleaners may harm the finish.
Store the tractor in a dry place when you can. Also, keep the shade clear of sharp tools and rough walls. Good care can help the canopy stay clean and useful.
Road speed can put a high load on the top and frame. So, do not haul the tractor on an open trailer with the sunshade in place unless the product guide allows it. Browse our tractor cab and sunshade accessories for current care options.
John Deere 300, 312 and 314 Specifications
The John Deere 300, 312, and 314 were part of an early garden tractor line. All three used a single-cylinder gas engine and hydrostatic drive. Yet engine power and production years differed by model.
John Deere built these tractors in Horicon, Wisconsin. Their short wheelbase and front-engine form made them useful for lawn and garden work. In addition, owners could use select mower decks and front tools made for the right model.
John Deere 300 Specifications
John Deere made the 300 garden tractor from 1975 through 1977. A Kohler K341 single-cylinder gas engine supplied 16 horsepower. Its air-cooled engine had about 35.9 cubic inches, or 588 cc, of size.
A hydrostatic transmission gave smooth speed control. The tractor used two-wheel drive and manual steering. Plus, an electric clutch controlled the independent front PTO.
The John Deere 300 had a 46-inch wheelbase. Tractor weight was about 700 pounds before added tools. Its fuel tank held about 4.5 U.S. gallons.
Available mower decks included 38-inch and 46-inch units. Other tools could include a blade or snow blower. Yet exact fit depends on the deck, mounts, and tractor serial number.
John Deere 312 Specifications
John Deere built the 312 during 1977 and 1978. Its Kohler K301 single-cylinder gas engine made 12 horsepower. Engine size was about 29.1 cubic inches, or 476 cc.
Hydrostatic drive let the operator vary travel speed without a manual gear shift. The tractor also used two-wheel drive and manual steering. An electric clutch served the independent front PTO.
The 312 shared the 46-inch wheelbase used by this early line. Its fuel tank held about 4.5 U.S. gallons. In addition, owners could use select mid-mount mower decks and front tools.
John Deere 314 Specifications
John Deere made the 314 from 1979 through 1983. A Kohler K321 single-cylinder gas engine supplied 14 horsepower. Its air-cooled engine had about 31.3 cubic inches, or 512 cc, of size.
The 314 used hydrostatic drive, two-wheel drive, and manual steering. It also had an independent front PTO with an electric clutch. Shoe brakes helped stop the tractor.
A 46-inch wheelbase kept the unit compact. Tractor weight was about 760 pounds before tools or added weight. Meanwhile, the fuel tank held about 4.5 U.S. gallons.
John Deere offered 38-inch and 46-inch mid-mount mower decks for the 314. A front blade and snow blower were also available. Check the serial number and mount parts before adding an old or used tool.
Shared Early 300 Series Features
All three models used hydrostatic travel control. Thus, the operator could change speed without shifting through a set of gears. This drive style works well around trees, beds, and tight yard sites.
Each tractor used an open operator station. Therefore, Sunshade 9407 can add useful cover above the seat. The shade does not change the tractor engine, drive, PTO, or steering system.
Older equipment may no longer match its factory setup. For that reason, use the serial tag when you seek parts or service facts. The official John Deere parts catalog can help identify parts for legacy machines.
Some early 300 Series mower and mount data also appears in the official John Deere lawn and garden equipment guide. Always follow the correct operator manual for safe use and care.
Why Buy Direct from Original Tractor Cab?
Direct sales give you one source for product fit, manuals, and help. You can shop by the exact tractor model instead of trying to adapt a loose canopy. As a result, choosing the right shade becomes much easier.
Classic tractors often have a long work history. Seats, mounts, and body parts may have changed over the years. So, inspect your John Deere 300, 312, or 314 before you order.
The History of Original Tractor Cab Company
Original Tractor Cab began in 1939. At that time, Indiana farmer Stanley Williams needed a way to stay warm and dry on his tractor. So, he built a cab for his own use.
Other farmers soon saw the value of his idea. Williams then placed a small ad in a farm magazine. The strong reply helped turn his farm-built cab into a family business.
World War II brought a change in work. During the war, normal cab output stopped as the company made backpacks and other goods for the armed forces. Later, the firm began to make tractor cabs again.
New products came as tractors and mowers changed. Hardtop cabs, soft enclosures, sunshades, and cab parts joined the line. Yet the main goal stayed much the same: help people work with more cover from the weather.
Today, Original Tractor Cab still works in Arlington, Indiana. The company values useful design, family roots, and American-made products. Read more on the Original Tractor Cab history page.
John Deere 300 Series Sunshade Questions
Which tractors fit Sunshade 9407?
Sunshade 9407 fits the early John Deere 300, 312, and 314 garden tractors. Check the full model and serial tag before purchase.
Does Sunshade 9407 fit a John Deere X300?
No. The early John Deere 300 and the newer John Deere X300 are different tractors. Sunshade 9407 is for the early 300, 312, and 314 models.
Is this product a full weather cab?
No. Sunshade 9407 is an open canopy. It helps block direct sun from above, but it does not enclose the operator or provide full protection from rain, snow, sleet, hail, or wind.
Can the sunshade protect me during a rollover?
No. The shade is not a rollover bar or safety enclosure. It cannot protect the operator from rollover, impact, falling objects, or flying debris.
Where is Sunshade 9407 made?
Original Tractor Cab makes Sunshade 9407 in Arlington, Indiana, USA.
Product and Safety Disclaimers
Non-OEM and Liability Disclaimer
This is an aftermarket product made by Original Tractor Cab Co., Inc. It is not a genuine John Deere OEM item. Deere & Company does not make, sponsor, approve, or endorse it. John Deere and all model names belong to their owner and identify product fit only. This sunshade helps reduce direct exposure to sun from above. It does not protect the operator from rollover, crash, lightning, hail, falling limbs, thrown objects, or flying debris. The shade is not a ROPS, FOPS, weather cab, or safety enclosure. Never use the frame as a handhold. Confirm the tractor model, serial number, fit, clearance, and safe control use before installation. Read and follow all shade, tractor, mower deck, and attachment instructions.
California Proposition 65 Warning
WARNING: This product can expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.
