All-Weather Cab Protection for KIOTI CS2220 and CS2520

Your KIOTI tractor can help with yard work, snow removal and land care. Yet the weather can make each job hard. Rain may soak your clothes. Snow can blow toward the seat. Cold wind may chill your hands and face.

So, Cab 12229 adds a shield around the operator. The roof helps shed rain and snow. Clear panels help block wind. Plus, you can still see much of the work area through the windows.

Rain and Sleet Protection

Wet weather can make outdoor work less pleasant. Rain may soak your coat in just a few minutes. Also, sleet can sting your face as you drive.

The hard roof helps keep rain off your head and shoulders. Clear front, rear and door panels help block wind-driven water. So, you can work with less direct exposure.

However, this cab is not a watertight room. Some rain and wind may enter through gaps near the tractor frame.

Snow Protection for Winter Work

Snow can blow back toward the seat when you clear a drive or path. A snowblower may send snow into the wind. So, the operator can face snow from more than one side.

Cab 12229 helps block much of that blowing snow. The roof adds cover from above. Also, clear panels help you see the path ahead.

Use only snow tools that fit your tractor and cab. Then, check all tool and control clearance before you start.

Cold Wind Protection

Cold wind can make a mild day feel harsh. It may blow through your coat and gloves. So, a cab can help cut direct wind around the operator.

The enclosure helps shield the front, sides and rear. Yet it has no built-in heat. Dress for the weather and keep fresh air flowing.

Shade from the Summer Sun

The ABS hardtop can also help block direct sun from above. So, it may add shade during warm weather work.

However, a full cab can trap heat on hot days. Keep enough fresh air in the cab. Also, stop work if the air becomes too hot.

Know the Limits of Weather Protection

A cab can help shield you from common rain, snow, sleet and wind. Yet it cannot make severe weather safe.

Large hail, strong storms and flying debris can cause harm. So, stop work and seek safe shelter when storms move in.

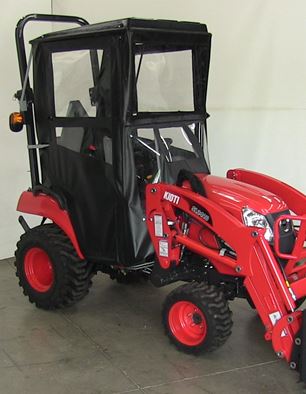

KIOTI CS2220 and CS2520 Hardtop Cab 12229 Features

Fully Enclosed ABS Hardtop

Cab 12229 has a molded ABS plastic hardtop. It helps shed rain and snow from above. Plus, it forms the roof of the enclosure.

The hardtop can also block direct sun. Yet it is not a safety guard against falling objects.

Clear Shatter-Resistant Lexan Windows

A clear view helps when you work near trees, sheds and fences. So, Cab 12229 uses clear Lexan plastic in its rear curtain, doors and front windshield.

These panels help block rain, snow and wind. Also, they help you watch the space around the tractor.

Lexan is a tough plastic. However, grit can scratch its clear face. So, clean each panel with care.

Easy-Access Hinged Doors

Cab 12229 has hinged doors for access to the operator seat. So, you can enter and leave the cab without taking the enclosure apart.

The clear door panels help you see the ground beside the tractor. Also, the door design helps close the sides during work.

81-Inch Cab Height

Original Tractor Cab lists the cab height as 81 inches. So, check overhead space before you drive into a shed, barn or garage.

Tire size, ground level and tractor setup may affect actual clearance. Also, make sure the cab has room below low tree limbs.

Optional Safety Glass Windshield 10120

The base cab has a clear Lexan front windshield. However, you can choose an optional safety glass windshield, part 10120.

The glass panel also lets you add a compatible wiper. So, order the correct glass part before adding one.

Optional Manual Wiper 10121

Rain and wet snow can block your front view. So, a manual wiper can help clear the glass.

Part 10121 needs safety glass windshield 10120. Do not use the wiper on the standard Lexan front panel.

Optional Electric Wiper 10122

An electric wiper can help clear rain from the front glass. Plus, it can reduce the need to move a wiper by hand.

Part 10122 also needs safety glass windshield 10120. So, check the full upgrade before purchase.

One-Year Limited Warranty

Original Tractor Cab lists a one-year limited warranty for Cab 12229. So, review the warranty terms before you buy.

The warranty does not make the cab a safety structure. It remains a weather enclosure for the operator.

KIOTI CS2220 and CS2520 Tractor Cab Fitment

Does Cab 12229 Fit the KIOTI CS2220?

Yes. Original Tractor Cab lists the KIOTI CS2220 as a fit for Hardtop Cab 12229.

The CS2220 is a sub-compact diesel tractor. It can help with mowing, yard care and other land jobs. So, the cab adds useful weather cover to the operator station.

Does Cab 12229 Fit the KIOTI CS2520?

Yes. Cab 12229 also fits the KIOTI CS2520. This model offers more engine power than the CS2220.

Yet both tractors share many of the same uses. So, the hardtop cab can help on cold and wet workdays.

Check Your Tractor and Attachments

Cab 12229 is a model-fit weather enclosure. Yet added tools may affect cab clearance.

So, check your tractor setup before purchase. Also, review the cab guide for the right mount points.

Front Loader Clearance

A front loader may move near the cab frame. So, check the full range of loader travel.

The loader arms and controls must not hit the cab. Also, never remove factory safety parts to make it fit.

Backhoe and Rear Tool Clearance

A backhoe needs room near the rear of the tractor. So, do not assume the cab will fit with one.

Check with Original Tractor Cab before use with a backhoe or other rear tool. The cab must not block safe tool use.

KIOTI CS2220 and CS2520 Cab 12229 Installation

Read the Cab 12229 Installation Guide

Start with the full cab guide. Then, lay out all frame parts, roof panels and hardware.

Follow each mount step in order. Also, check that the doors open and close with ease.

Find the KIOTI CS2220 and CS2520 Cab 12229 installation manual on our installation manuals page.

Watch the Cab 12229 Installation Video

A video can help you see the frame, roof and panel layout. So, watch our KIOTI Cab 12229 installation video before you begin.

Check the Door and Tractor Controls

The cab must not block pedals, levers or steering. So, test each control before use.

Open and close both doors. Also, make sure you can enter and leave the tractor with ease.

Clean the Clear Lexan Windows

Dirt and grit can scratch clear plastic. So, rinse off loose dirt before cleaning.

Use a cleaner safe for Lexan. Also, avoid harsh chemicals and rough cloths.

Check Cab Mounts and Door Hardware

Loose hardware can cause wear. So, check the cab mounts from time to time.

Keep the door latches in good shape. Also, look for worn or torn weather panels.

Remove Vinyl Panels Before Open Transport

The Cab 12229 manual tells owners to remove vinyl panels before transport on an open truck or trailer.

So, follow that step before hauling the tractor. Store the panels in a clean and dry place.

Buy Your KIOTI CS2220 or CS2520 Cab Direct

Original Tractor Cab makes Cab 12229 for the KIOTI CS2220 and CS2520. So, you can buy your weather cab direct from the maker.

Our team can help with cab fit and upgrade questions. Plus, you can find more KIOTI weather covers on our site.

Browse our KIOTI tractor cabs, enclosures and sunshades for more model-fit products.

If you own a KIOTI CS2210, CS2410 or CS2510, view our KIOTI CS2210, CS2410 and CS2510 Hardtop Cab 12278 .

You can also see our KIOTI CX2510 Hardtop Cab for a different tractor series.

Ready for more cover from rain, snow, sleet and wind? Choose Cab 12229 and order direct from Original Tractor Cab.

KIOTI CS2220 and CS2520 Tractor Specifications

The KIOTI CS2220 and CS2520 are sub-compact diesel tractors. Both use hydrostatic drives and three-cylinder engines. Plus, they can run a range of compatible yard tools.

The CS2220 has 21 horsepower. In contrast, the CS2520 has 24.5 horsepower. So, the CS2520 offers more engine power for demanding work.

KIOTI CS2220 Engine Specifications

The KIOTI CS2220 uses a three-cylinder diesel engine. Its engine model is 3C100LWH-U3. The engine has 1,007 cc of displacement.

The CS2220 produces 21 gross engine horsepower. Also, it has 16.3 PTO horsepower. So, it can run compatible PTO tools within its rated limits.

KIOTI CS2220 Transmission

The CS2220 has a two-range hydrostatic transmission. It uses twin pedals for forward and reverse.

So, the operator can change speed without a manual gear shift. The tractor also has hydraulic power steering.

KIOTI CS2220 PTO Specifications

The CS2220 has independent PTO control. Its rear PTO runs at 540 rpm. Also, the mid PTO runs at 2,200 rpm.

The mid PTO can power compatible mower and other tools. So, the tractor can serve more than one yard task.

KIOTI CS2220 Fuel and Hydraulic System

The CS2220 has a 6.7-gallon fuel tank. Its hydraulic pump flow is 7 gallons per minute.

The tractor has a Category I three-point hitch. Also, its listed hitch lift capacity is 700 pounds.

KIOTI CS2220 Dimensions

The CS2220 is 99.3 inches long with the hitch. It is 45.9 inches wide.

The wheelbase is 55.1 inches. Also, ground clearance is 6.4 inches. The listed turning radius is 8.2 feet.

KIOTI CS2520 Engine Specifications

The KIOTI CS2520 uses a three-cylinder diesel engine. Its engine model is 3C100LFH-U2.

The engine has 1,007 cc of displacement. Plus, it produces 24.5 gross engine horsepower.

The rated engine speed is 3,000 rpm. Also, the tractor has 18.5 PTO horsepower.

KIOTI CS2520 Transmission

The CS2520 uses a two-range hydrostatic transmission. Twin pedals control forward and reverse travel.

So, the operator can change speed with ease. The tractor also has hydraulic power steering.

KIOTI CS2520 PTO Specifications

The CS2520 has an independent PTO. Its rear PTO runs at 540 rpm. Plus, the mid PTO runs at 2,200 rpm.

The rear PTO can power compatible tools. Also, the mid PTO can serve a mower deck.

KIOTI CS2520 Fuel and Hydraulics

The CS2520 has a 6.7-gallon fuel tank. Its hydraulic pump flow is 7 gallons per minute.

The tractor has a Category I rear three-point hitch. Also, the listed hitch lift capacity is 700 pounds.

KIOTI CS2520 Dimensions and Weight

The CS2520 is 99.3 inches long with the hitch. It is 45.9 inches wide.

The wheelbase is 55.1 inches. Plus, ground clearance is 6.4 inches.

The listed tractor weight is 1,554 pounds. Also, the factory tractor height is 88 inches in the published configuration.

KIOTI CS2220 vs. CS2520

Both tractors have 1,007 cc diesel engines. Yet their power ratings are not the same.

The CS2220 has 21 engine horsepower. In contrast, the CS2520 has 24.5 horsepower.

The CS2220 has 16.3 PTO horsepower. Meanwhile, the CS2520 has 18.5 PTO horsepower.

Both models use two-range hydrostatic transmissions. Also, both have rear and mid PTOs.

So, each tractor can serve many yard and land care jobs. The best fit depends on the work you need to do.

KIOTI CS Series Mower Decks

A mid-mount mower can help cut large lawns. The CS Series mid PTO helps power compatible mower decks.

Yet deck size and mount parts may vary. So, check the exact deck and tractor model.

KIOTI CS Series Front Loaders

A front loader can help move soil, mulch and loose loads. So, these tractors can serve many land jobs.

Yet loader arms need room to move. Check the cab and loader clearance before use.

KIOTI CS Series Snow Removal

A compatible snowblower or blade can help clear a drive. So, these tractors may serve winter work.

Cab 12229 helps shield the operator from wind and blowing snow. Yet each tool must fit the tractor and cab.

Official KIOTI CS2220 Specifications

For the full CS2220 engine, PTO, hitch and tractor specs, visit the official KIOTI CS2220 tractor page .

Official KIOTI CS2520 Specifications

For the full CS2520 engine, PTO, size and weight specs, visit the official KIOTI CS2520 tractor page .

Tractor specs may change by model year, tire type and added tools. So, check the exact tractor and serial number before you order parts.

Original Tractor Cab Company History Since 1939

A Farmer's Idea in 1939

Original Tractor Cab began in 1939. At that time, farmer Stanley Williams needed more cover from harsh weather while he worked.

So, Stanley made a cab for his own tractor. It helped shield him from rain, wind and cold.

Other farmers soon saw his new cab. They too had to work in bad weather.

So, they asked for the same kind of cover. That first cab became the start of Original Tractor Cab Co., Inc.

From One Cab to a Family Business

Stanley knew how hard farm work could be. He also knew how cold and wet the job could feel.

So, he kept making useful cab designs. More farmers saw the value of weather cover.

As demand grew, the company grew as well. Yet its main goal stayed much the same.

Help people work with less harsh weather on their bodies.

Original Tractor Cab During World War II

World War II brought new needs for goods and supplies. So, Original Tractor Cab changed its work to help the war effort.

The company made backpacks and other needed military goods. This work showed the range of its manufacturing skills.

After the war, the company went back to making weather covers for farm and outdoor work.

New Cabs for Lawn and Garden Equipment

Outdoor machines changed as the years went by. Lawn tractors and snowblowers became more common.

So, Original Tractor Cab added new products for these machines. The company grew beyond its first farm tractor cabs.

More homeowners and grounds crews could now add weather cover to the machines they used.

Sunshades for Warm Weather Work

Cold weather was not the only concern. Hot sun could also make long days hard.

So, the company added sunshades to its product range. These shades help block direct sun from above.

As a result, Original Tractor Cab could help more operators through the year.

Three Generations of American Manufacturing

The Williams family carried the company forward through three generations. Each generation brought new ideas and products.

Yet the core goal stayed the same. Make useful weather covers for people who work outdoors.

Today, the company makes hardtop cabs, soft enclosures, sunshades and cab parts. Plus, its products serve many types of outdoor equipment.

Made in Arlington, Indiana

Original Tractor Cab is based in Arlington, Indiana. We take pride in our long history of American manufacturing.

Our products help farmers, homeowners and grounds crews work with more comfort. So, we keep making weather covers for the machines they use.

Cab 12229 Carries on the Tradition

The KIOTI CS2220 and CS2520 came long after Stanley made his first cab. Yet the need for weather cover remains.

Rain still falls. Snow still blows. Cold wind can still make work feel long.

So, Cab 12229 brings that same basic idea to these KIOTI sub-compact tractors.

Learn more about our family roots on the Original Tractor Cab company history page .

Original Tractor Cab – Made RIGHT in USA Since 1939!

KIOTI CS2220 and CS2520 Hardtop Cab FAQs

What KIOTI tractors fit Cab 12229?

Cab 12229 fits the KIOTI CS2220 and CS2520 sub-compact tractors. Check the installation guide before purchase.

Does Cab 12229 help block rain and snow?

Yes. The hard roof and clear panels help shield the operator from rain, snow, sleet and wind. Yet the cab is not fully sealed.

Does Cab 12229 have a hard roof?

Yes. The cab has a fully enclosed ABS plastic hardtop. It helps shed rain and snow.

What type of windows does the cab use?

The base cab uses clear shatter-resistant Lexan plastic in the rear curtain, doors and front windshield.

How tall is Cab 12229?

Original Tractor Cab lists a cab height of 81 inches. Check actual clearance on your tractor.

Can I add a glass windshield?

Yes. Optional safety glass windshield 10120 replaces the standard Lexan front panel.

Can I add a windshield wiper?

Yes. Manual wiper 10121 and electric wiper 10122 are optional. Both need safety glass windshield 10120.

Does the cab have a warranty?

Yes. Original Tractor Cab lists a one-year limited warranty for Cab 12229. Review the full terms.

Is this a genuine KIOTI OEM cab?

No. Original Tractor Cab makes this aftermarket weather enclosure. It is not a genuine KIOTI OEM item.

Order Your KIOTI CS2220 or CS2520 Hardtop Cab 12229

Rain, snow and cold wind do not have to make every tractor job feel harsh.

Our hardtop cab helps keep much of that weather off the operator. Plus, the clear panels help you see the work area.

So, if you own a KIOTI CS2220 or CS2520, choose Cab 12229 for more weather cover.

Buy direct from Original Tractor Cab. We make our products in the USA and have served outdoor workers since 1939.

Non-OEM, Safety and Liability Disclaimers

Aftermarket and Non-OEM Product Disclaimer

This is an aftermarket product produced by Original Tractor Cab Co., Inc. It is not a genuine KIOTI OEM item. Original Tractor Cab Co., Inc. is not affiliated with, sponsored by or endorsed by KIOTI Tractor.

KIOTI, CS2220, CS2520 and related model names are trademarks of their respective owners. We use those names only to identify compatible equipment.

Operator Safety and Liability Disclaimer

This cab provides limited weather protection only. It is not a rollover protective structure (ROPS), falling object protective structure (FOPS), collision guard, debris shield or certified safety cab.

This product will only help protect from weather elements, not rollover, collision, falling objects, flying debris or other hazards. Never rely on the cab to prevent injury or death.

Always follow the KIOTI operator manual and Original Tractor Cab installation guide. Keep all factory guards and safety devices in place. Never remove or alter factory safety equipment to install the cab.

The cab changes the tractor's height, width and sight lines. So, check all clearances before use. Also, make sure the cab does not block steering, pedals, controls, loader arms, PTO shafts or other tools.

Diesel engine exhaust contains harmful gases, including carbon monoxide. Never run the tractor in a closed or poorly ventilated area. Stop use if exhaust fumes enter the cab.

Remove the vinyl cab panels before transport on an open truck or trailer, as the Cab 12229 manual directs.

California Proposition 65 Warning

WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov .
