Original Tractor Cab
New Holland Workmaster 25S 12152 Hard top Cab by Original Tractor Cab
New Holland Workmaster 25S 12152 Hard top Cab by Original Tractor Cab
Couldn't load pickup availability
Cab 12152 helps you get more use from your tractor in cool months. For example, you can clear snow, move feed, haul firewood, or care for land with more cover. Less direct wind can make each task feel far more calm.

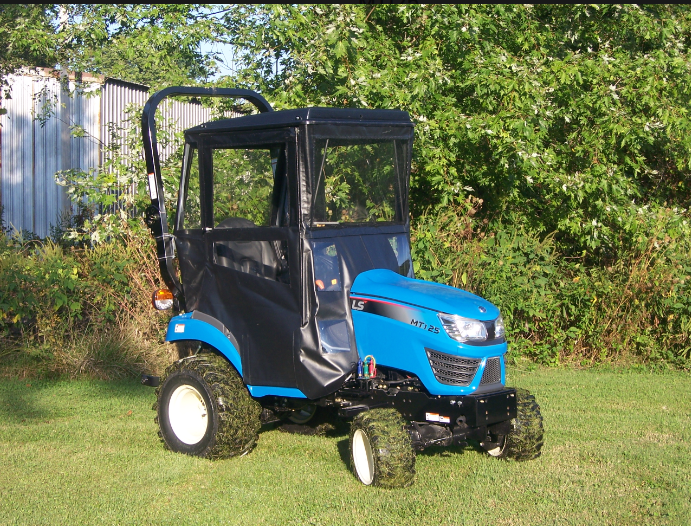

This hardtop cab fits the New Holland Workmaster 25S. In addition, the same enclosure fits the LS MT122 and MT125 tractors. Always check the full model tag before you order.
Clear Lexan Panels Help You See the Work
Clear, shatter-resistant Lexan plastic forms the front windshield, side doors, and rear curtain. As a result, the operator can see the path and nearby work area. A wide view helps with close work near a drive, shed, gate, or fence.
The windshield leans forward by design. Thus, its shape can help cut glare and reduce contact with falling rain or snow. The sloped front also gives the cab a clean look.
Large clear panels help you check each side of the tractor. Moreover, you can watch for people, pets, tools, and fixed objects. Always turn and look before you move in reverse.
Use mild soap, clean water, and a soft cloth on the Lexan panels. However, do not use rough pads, dry paper towels, or harsh glass cleaner. Those items may scratch or haze the clear plastic.
Hinged Doors Give You Easy Access
Hinged doors make it easy to reach the tractor seat. In addition, door latches help keep each side closed during normal use. The simple design supports quick entry and exit.
The cab frame uses 16-gauge steel tubing. Meanwhile, tough stop-rip vinyl fabric covers the frame. This light fabric resists wear, water, mildew, and rot when owners use and store it with care.
Clean the fabric with mild soap and water. Then, let each part dry before storage. A clean and dry cab will stay in better shape between seasons.
No-Drill Installation Made for Cab 12152
Cab 12152 mounts without drilling holes in the tractor. Therefore, its model-fit parts help make the job clear and direct. Read the full guide first, then sort the hardware in a clean work area.
Most first-time installs take about three to four hours. Still, your tools, skill, and tractor setup can change the time. A second adult can help hold the roof and frame during key steps.
Seasonal removal takes about 45 minutes in normal shop conditions. As a result, you can take off the cab when warm weather returns. Keep all small parts in a marked box for the next install.
Set the parking brake before you begin. Next, turn off the engine and remove the key. Allow hot parts to cool before you work near them.
Review our tractor cab installation manuals before the cab arrives. If you need help with fit, please contact Original Tractor Cab before you order.
New Holland Cab 12152 Specifications
| Original Tractor Cab part number | 12152 |
|---|---|
| Primary tractor fit | New Holland Workmaster 25S |
| Other listed fits | LS MT122 and LS MT125 |
| Cab type | Fully enclosed hardtop cab |
| Roof | Hard ABS plastic roof |
| Cab frame | 16-gauge steel tube frame |
| Cab covering | Lightweight stop-rip vinyl fabric |
| Clear panels | Shatter-resistant Lexan windshield, doors, and rear curtain |
| Door style | Hinged side doors with latches |
| Mounting method | No drilling required |
| Estimated installation time | About three to four hours |
| Estimated removal time | About 45 minutes |
| Country of manufacture | United States |
Check Your Tractor Before You Order
First, find the model tag on your tractor. Then, make sure the tag states Workmaster 25S. The Workmaster 25 and Workmaster 25S are different machines.
Do not use tractor color or engine power alone to pick a cab. Instead, confirm the full model name and check all items near the operator area. Lights, mirrors, controls, a backhoe, or other added parts may affect fit.
For other model-fit products, shop our New Holland tractor cab collection. You can also view tractor cab accessories for lights and other useful add-ons.
The Workmaster 25S is a small subcompact tractor. Yet it gives owners more power and tool choice than a lawn tractor. Its size suits home lots, small farms, and land care work.
A three-cylinder diesel engine makes 24.7 gross horsepower. In addition, the rear PTO supplies 17.2 horsepower for approved tools. This power can support mowing, tilling, and snow work.
The Workmaster 25S uses a two-range hydrostatic transmission. Therefore, one pedal moves the tractor forward while the other moves it in reverse. No clutch or main direction lever is needed for normal travel.
Low range suits hard jobs such as tilling, scraping, and blowing snow. By contrast, high range works well for travel and faster mowing. Always match the speed to the land and load.
For current factory details, visit the official New Holland Workmaster 25S page. Owners can also review the maker’s compact tractor manuals and resources.
Workmaster 25S Engine and Drive Data
| Tractor class | Subcompact tractor |
|---|---|
| Engine | Three-cylinder diesel |
| Gross engine power | 24.7 horsepower |
| PTO power | 17.2 horsepower |
| Transmission | Two-range hydrostatic |
| Drive system | Standard four-wheel drive |
| Three-point hitch lift capacity | 992 pounds |
| Operator platform | Flat Clear-Thru platform |
| Compatible loader | New Holland 100LC loader |
| Compatible mid-mount mower | New Holland 160GMS, with a 60-inch cutting width |
| Compatible backhoe | New Holland 905GBL, with up to 79.4 inches of digging depth |
Factory values may change by model year, market, tire choice, and machine setup. Thus, the tractor tag and operator manual must serve as the last word. Never use general web data to set a safe load limit.
Standard Four-Wheel Drive
Four-wheel drive comes as standard equipment on the Workmaster 25S. As a result, the tractor can gain more grip on wet, loose, or rough ground. A rear differential lock can add help when both rear tires need to turn as one.
Extra grip does not prevent every slide. However, slow travel can reduce risk on ice, snow, slopes, and soft soil. Avoid sharp turns when traction is low.
Never use four-wheel drive as a reason to cross unsafe land. Instead, check the grade and surface before each job. Stop if the tractor begins to slip or feel less stable.
Clear-Thru Operator Platform
The flat operator deck gives the Workmaster 25S an open path to the seat. Therefore, the operator does not need to step over a large drive tunnel. Well-placed controls also help keep the entry area clear.
Cab 12152 adds hinged doors around this space. Even so, you should face the tractor and use safe handholds when you climb in or out. Keep mud, snow, tools, and loose items off the step area.
Tools for Mowing, Loader Work, and Snow
The Workmaster 25S can use a range of model-fit tools. For example, New Holland lists the 100LC loader for gravel, soil, mulch, and other loose goods. The 160GMS mower cuts a 60-inch path across lawns.
A 905GBL backhoe can dig to a depth of up to 79.4 inches. Meanwhile, front blades and snow blowers can help clear a drive. Always check cab fit and clear space when a front or rear tool is in use.
Winter tools make a cab more useful. In fact, Cab 12152 helps keep direct wind and falling snow away from the operator during snow work. The enclosure does not add heat, so dress for the weather.
Safe Use with Cab 12152
Make sure each tractor control has free space before you start the engine. Also, open and close both doors to check their path. Never use the cab if a loose part blocks your sight or movement.
This enclosure does not replace the factory rollover protection system. Therefore, do not cut, drill, bend, weld, or remove the ROPS to make the cab fit. Use the seat belt as the tractor manual directs.
Low trees and garage doors can strike the cab roof. So, measure the full tractor height after the install. Leave added space when you pass under any object.
Original Tractor Cab began in 1939. At that time, Indiana farmer Stanley Williams needed more cover from harsh weather. So, he made a cab for his own tractor.
Other farmers soon saw the value of his idea. Then, Stanley placed a small ad in a farm magazine. The strong reply showed that many people shared the same need.
That simple cab led to a new American company. As a result, workers began to make cabs for the main tractor brands of the day. Practical farm work shaped each early design.
During World War II, the company used its skills to aid the war effort. Its team made packs and other goods for military use. Afterward, the firm returned its main focus to products for outdoor work.
Tractors and outdoor machines changed over time. Therefore, Original Tractor Cab kept adding new model-fit products. Its range grew to include hardtop cabs, soft enclosures, sunshades, and cab accessories.
The company still works in Arlington, Indiana. Moreover, American production remains a key part of the brand. Each current cab reflects more than eight decades of design and shop skill.
Today, Original Tractor Cab serves tractor, mower, and utility equipment owners. Yet its main goal stays much the same: help people work with more cover from the weather. Read more on our Original Tractor Cab history page.
Which tractors fit Hardtop Cab 12152?
Cab 12152 fits the New Holland Workmaster 25S. It also fits the LS MT122 and LS MT125 tractors.
Does Cab 12152 fit the New Holland Workmaster 25?
No. The Workmaster 25 and Workmaster 25S are different tractors. Confirm the full model name before you order.
Does the cab require drilling?
No. Cab 12152 uses model-fit hardware that does not require drilling. Still, follow the supplied guide during every step.
How long does installation take?
A normal first install takes about three to four hours. However, tools, skill, and tractor setup can change the time.
Can I remove the cab for summer?
Yes. Normal removal takes about 45 minutes. Clean and dry all parts before you place them in storage.
What are the clear panels made from?
The windshield, side doors, and rear curtain use clear, shatter-resistant Lexan plastic. Use mild soap, water, and a soft cloth for care.
Is Cab 12152 an OEM New Holland product?
No. Original Tractor Cab makes this aftermarket enclosure for the listed tractors. New Holland does not make, sponsor, or endorse Cab 12152.
Non-OEM and Liability Disclaimer
This is an aftermarket product made by Original Tractor Cab Co., Inc. It is not a genuine OEM New Holland or CNH product. New Holland, CNH, Workmaster, and all related names and marks belong to their owners and serve only to show product fit.
The buyer must confirm the tractor model, ROPS type, attachments, and clear space before purchase and use. Model year changes, dealer-added parts, lights, mirrors, controls, tires, loaders, backhoes, and prior changes may affect fit. Stop the installation if any cab part blocks a control, light, safety label, ROPS part, or safe exit.
This cab offers protection from normal weather only. It will not protect the operator from a rollover, crash, falling object, thrown debris, chemical spray, fire, or other harmful event. The enclosure is not a certified rollover protective structure, falling-object guard, or safety cab.
Never remove, drill, cut, weld, bend, or change the factory ROPS to install this product. Follow the tractor manual, cab guide, and all safety rules. Original Tractor Cab Co., Inc. is not liable for harm, loss, or damage caused by a poor fit check, wrong installation, misuse, unsafe operation, altered equipment, or failure to follow the supplied instructions.
California Proposition 65 Warning
WARNING: This product can expose you to chemicals, including chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.
