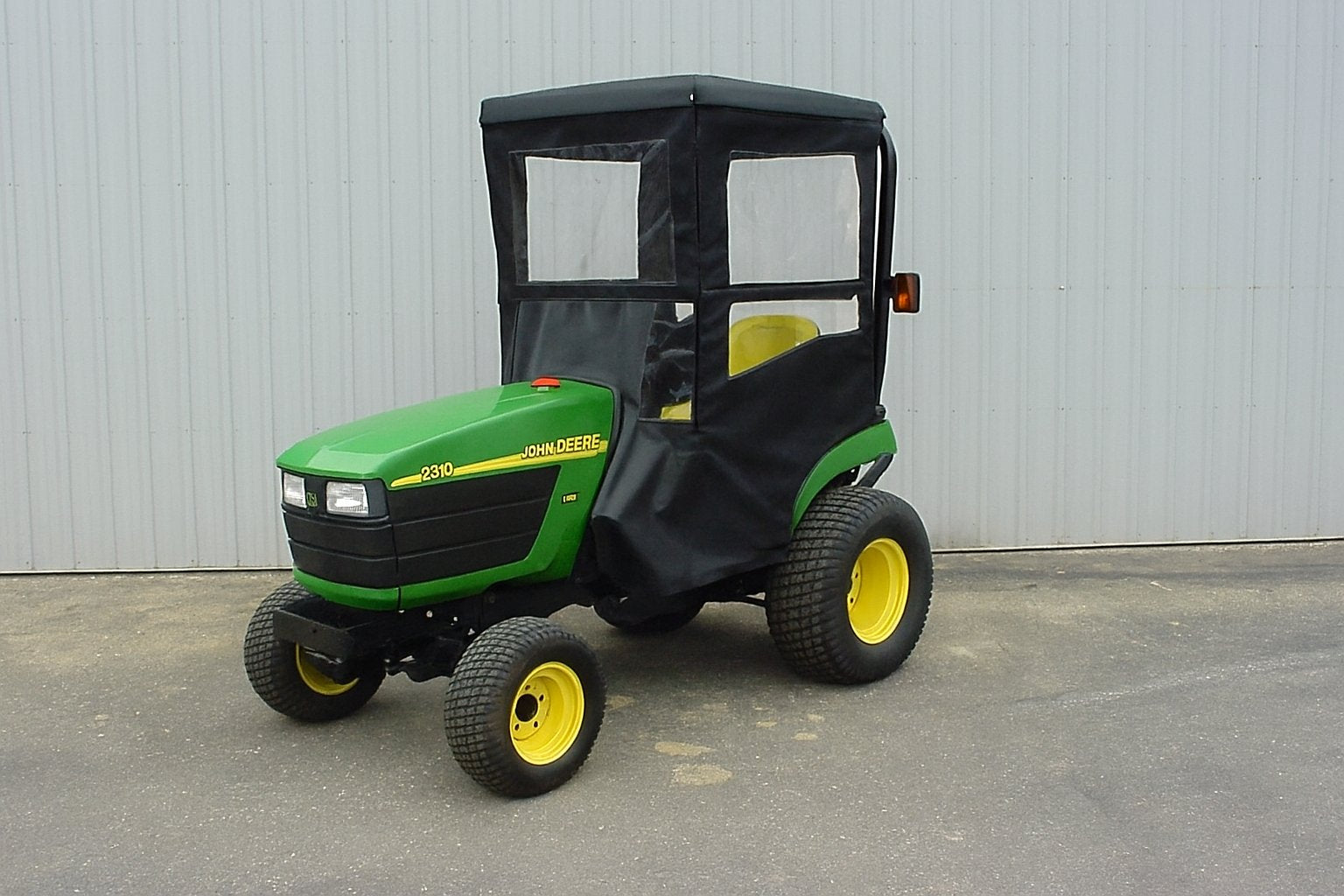

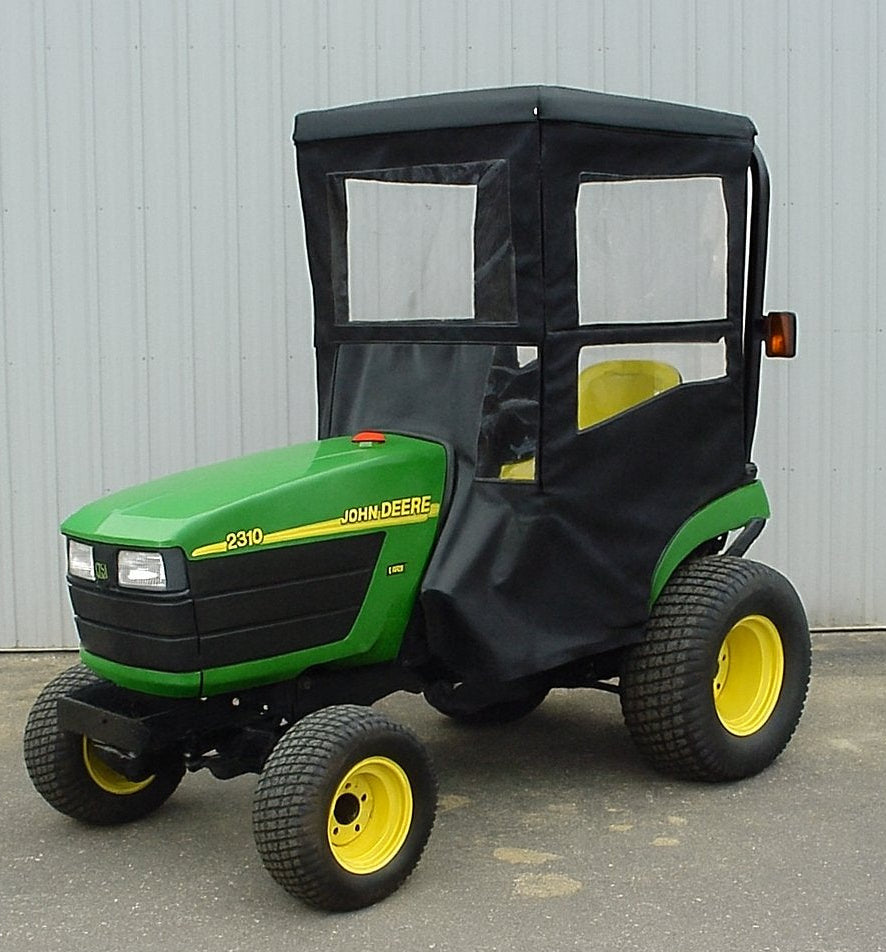

John Deere 2210 and 2305 All-Weather Tractor Cab

Cold weather can make a short job feel long. Snow blows back toward the seat. Rain soaks your coat. Yet your drive, path or yard still needs care.

Our Cab 11326 helps keep much of that harsh weather off you. The hard roof sheds rain and snow. Clear panels help block cold wind. Also, the full cab gives you more cover than an open tractor seat.

Rain and Sleet Protection

Wet work can be hard on the operator. So, our hardtop cab helps keep rain and sleet from direct contact with your body. The roof and side panels add a layer of cover around the seat.

The cab is not watertight. Still, it can help reduce the amount of wind and rain that reaches you as you work.

Snow and Cold Wind Protection

Snow work can mean hours in cold air. Wind may blow loose snow toward your face. As a result, clearing a drive can be less pleasant than it needs to be.

Cab 11326 helps shield the operator from blowing snow and wind. Plus, the clear panels let you see much of the area around the tractor. This can help you work with more comfort in winter.

Sun and Warm Weather Cover

The hard roof also helps block direct sun from above. So, it can give shade on warm days. Yet a full cab may trap heat when the air is hot.

Make sure you have enough fresh air. Also, take breaks when the heat is high. This cab has no built-in cooling or climate control.

John Deere 2210 and 2305 Cab 11326 Features

16-Gauge Steel Tube Frame

A strong frame helps hold the cab in place. Our Cab 11326 uses 16-gauge steel tubing to support the roof and weather panels. So, the cab has a firm base for normal outdoor use.

The steel frame forms the main cab shape. However, it is not a rollover safety frame. It must not replace any factory safety device.

Hard ABS Plastic Roof

The cab roof uses molded ABS plastic. It also has a UV inhibitor to help resist sun damage. Thus, the roof gives you firm cover from above.

Rain and snow can shed off the top. Plus, the roof helps block direct sun as you work outdoors.

Clear Lexan Windows

A clear view is key when you use a tractor. So, Cab 11326 uses shatter-resistant Lexan window material. The clear panels help you see the ground and work area around the machine.

This window material can handle very cold weather without the cracking risk common to some rigid plastics. Yet sharp objects and rough cleaning can still harm the panels.

Stop-Rip Vinyl Weather Cover

The cab uses tough, light stop-rip vinyl fabric. It resists water, wear, mildew and rot. Also, the fabric helps form the weather barrier around the steel frame.

The vinyl helps block wind and blowing snow. Still, the cover is not a shield against sharp debris or a tractor rollover.

Full Cab Coverage for Winter Chores

A full cab gives more weather cover than a roof alone. So, Cab 11326 can help during snow removal, yard care and other cold-weather jobs.

The cab helps keep harsh wind off your body. Plus, it can reduce direct contact with blowing snow and cold rain.

John Deere 2210 and 2305 Cab Fitment

Does Cab 11326 Fit the John Deere 2210?

Yes. Original Tractor Cab lists the John Deere 2210 as a fit for Cab 11326. The 2210 is a sub-compact diesel tractor used for mowing, snow work and small property jobs.

Check the tractor setup before you install the cab. Also, make sure all controls, steering parts and tools have enough room.

Does Cab 11326 Fit the John Deere 2305?

Yes. Cab 11326 also fits the John Deere 2305 compact tractor. This model has a diesel engine, four-wheel drive and a hydrostatic drive system.

The 2305 can use a range of work tools. So, check the fit of each tool with the cab before you use it.

Cab Height and Storage Space

The listed cab height is 80 inches from the ground to the top when installed. However, tire size and tractor setup may change the final height.

Measure the tractor with the cab in place. Then, check your garage door, shed and low tree limbs before you drive beneath them.

Installation and Cab Care

Read the cab guide before you start. Next, lay out the frame, roof, panels and hardware. Follow each step in order.

Check all mounts after you install the cab. Also, make sure the pedals, steering and controls can move with no block or bind.

Find the cab instructions on our Original Tractor Cab Installation Manuals page. Look for John Deere Cab 11326.

Keep the windows clean with a soft cloth and a cleaner safe for Lexan. Also, check the frame and hardware from time to time. Follow the cab guide for transport and storage.

Buy Your John Deere 2210 or 2305 Cab Direct

Original Tractor Cab makes Cab 11326. So, you can buy your weather enclosure direct from the company behind the product.

Our team can help with fit and cab questions. Plus, you can find manuals and other cab products on our website.

For more weather cover choices, browse our Tractor Cabs and Enclosures . You can also view our John Deere 2 Series Hardtop Cab for other tractor models.

If you need more cab choices, see our John Deere 3025E, 3032E and 3038E Cab . Check the model fit before you buy.

Ready for more weather cover on your John Deere 2210 or 2305? Choose Cab 11326 and order direct from Original Tractor Cab.

John Deere 2210 and 2305 Compact Tractor Specifications

John Deere made the 2210 and 2305 for homeowners, farms and large yards. Both are small diesel tractors with four-wheel drive and hydrostatic speed control. So, they can handle many jobs in a compact size.

John Deere 2210 Engine and Power

The John Deere 2210 uses a Yanmar three-cylinder diesel engine. It has about 23 gross horsepower and a 1.0-liter engine. Plus, its liquid cooling system helps control heat.

The tractor offers about 17.7 PTO horsepower. So, it can power select mower decks and other PTO tools.

John Deere 2210 Transmission and Drive

The 2210 has a hydrostatic transmission with two speed ranges. It also has four-wheel drive, power steering and a rear differential lock.

These features help the tractor move through yard jobs with good control. Yet traction still depends on the ground, tires and load.

John Deere 2210 Fuel and Hydraulic System

The 2210 has a fuel tank of about five US gallons. Its hydraulic system holds about 3.4 US gallons.

The tractor uses an open-center hydraulic system. So, it can operate compatible lift and work tools.

John Deere 2210 Mower and Work Attachments

The John Deere 2210 can use select 54-inch and 62-inch mower decks. It also supports compatible front loaders and other tools.

A compact size helps it work in tight areas. Plus, four-wheel drive can help on rough ground.

John Deere 2305 Engine and Power

The John Deere 2305 uses a Yanmar 1.1-liter three-cylinder diesel engine. It produces about 24.1 gross horsepower and 18 PTO horsepower.

Its engine runs at a rated speed of 3,000 rpm. Also, liquid cooling helps manage heat during work.

John Deere 2305 Transmission and Drive

The 2305 has a two-range hydrostatic transmission. It also uses four-wheel drive and power steering.

Wet disc brakes help slow the tractor. Plus, the rear differential lock can help when one wheel loses grip.

John Deere 2305 Fuel and Hydraulic System

The 2305 fuel tank holds about 5.5 US gallons. Its hydraulic system holds about 3.4 US gallons.

The tractor has an open-center hydraulic system. So, it can power compatible lift tools and loader functions.

John Deere 2305 PTO and Hitch

The rear PTO runs at 540 rpm. The mid PTO runs at 2,100 rpm. Plus, the tractor has a limited Category 1 three-point hitch.

The rear hitch can lift about 681 pounds at 24 inches behind the lift points. Yet the safe working load depends on the tool and tractor setup.

John Deere 2305 Mower and Loader Options

The 2305 can use select 54-inch and 62-inch mower decks. It also works with compatible front loaders, such as the John Deere 200CX.

These tools help with mowing, mulch, soil and light property work. However, always check cab clearance before using a loader or other attachment.

John Deere 2210 vs. 2305

The 2210 has about 23 gross horsepower. In contrast, the 2305 offers about 24.1 gross horsepower. Both use diesel engines and hydrostatic drives.

The 2305 has a bit more engine power and a larger fuel tank. Yet both tractors can do many of the same yard jobs.

Cab 11326 fits both models. So, owners of either tractor can add weather cover without buying a newer machine.

Official John Deere Tractor Resources

For service data, see the John Deere 2210 Compact Utility Tractor Parts Guide . It gives part and fluid data for the 2210.

You can also use the John Deere Parts and Service Center to find support for the 2305. Match each part and spec to your tractor serial number.

The History of Original Tractor Cab Company Since 1939

A Farm Idea That Began in 1939

Original Tractor Cab began with one farmer and one need. In 1939, Stanley Williams wanted more cover from harsh weather while he worked on his tractor.

So, Stanley made a cab for his own machine. It helped shield him from the elements. Soon, other farmers saw the value of his idea.

They too worked in rain, snow, wind and cold. As more people asked for a cab, the idea grew into a new American business.

From One Tractor Cab to a Family Business

Stanley built his first cab to solve a real farm problem. Yet the need went far beyond his own land.

Other farmers wanted the same type of cover. So, Original Tractor Cab began making products for more tractor owners.

The company grew through hard work and new ideas. Plus, the Williams family kept its focus on the needs of outdoor workers.

Original Tractor Cab During World War II

World War II brought a new need for goods and supplies. So, the company changed its work to help the war effort.

The team made backpacks and other needed goods for military use. After the war, the firm went back to making products for outdoor work.

New Cabs for New Outdoor Machines

Farm machines changed as the years went by. Lawn tractors, compact tractors and snow blowers became more common.

So, Original Tractor Cab added products for these new machines. The company grew beyond the farm tractor cabs that first made its name.

Today, the range includes hardtop cabs, soft enclosures, sunshades and cab parts. Plus, the company serves many makes of equipment.

Sunshades for Summer Work

Cold weather was not the only concern. Hot sun could also make long days outdoors less pleasant.

So, the company added sunshades to its range. These products help block direct sun from above the operator.

As a result, Original Tractor Cab could help with more types of weather through the year.

Three Generations of the Williams Family

The Williams family carried the company forward through three generations. Each generation helped shape new products and ideas.

Yet the goal stayed much the same. Make useful weather covers for people who work outdoors.

Made in Arlington, Indiana

Original Tractor Cab is based in Arlington, Indiana. We take pride in our American manufacturing roots.

Our products help farmers, homeowners and grounds crews work with more comfort. So, we keep making cabs and sunshades for the machines they use.

Cab 11326 Carries on the Tradition

The John Deere 2210 and 2305 came long after Stanley built his first cab. Yet the need for weather cover remains.

Rain still falls. Snow still blows. Cold wind can still make a job feel long. So, Cab 11326 brings the same basic idea to these compact tractors.

Learn more about our family and our roots on the Original Tractor Cab About Us page.

Original Tractor Cab – Made RIGHT in USA Since 1939!

John Deere 2210 and 2305 Cab Frequently Asked Questions

What tractors fit Cab 11326?

Cab 11326 fits the John Deere 2210 and 2305 compact tractors. Check the cab guide and all attachments before installation.

Does the cab help keep out snow and rain?

Yes. The roof and weather panels help shield the operator from rain, snow, sleet and wind. Yet the cab is not fully sealed.

Is the cab roof made of metal?

No. The roof uses molded ABS plastic with a UV inhibitor. The cab frame uses 16-gauge steel tubing.

How tall is the cab?

The listed height is 80 inches from the ground to the roof. However, the final height may vary with your tractor setup.

Can I use the cab with a front loader?

Do not assume loader compatibility. Check the cab installation guide, loader mounts, controls and full range of movement before use.

Is this a genuine John Deere cab?

No. Original Tractor Cab makes this aftermarket enclosure. It is not a John Deere OEM item.

Where can I buy Cab 11326?

You can buy this hardtop cab direct from Original Tractor Cab on this page. For fit help, call 800-247-5305.

Order Your John Deere 2210 or 2305 Hardtop Cab Today

Keep more rain, snow and wind off your body as you work. Our Cab 11326 adds a hard roof and clear weather panels to your compact tractor.

So, if you own a John Deere 2210 or 2305, choose the hardtop cab made for your machine. Buy direct from Original Tractor Cab.

Made in the USA Since 1939!

Product Safety and Legal Disclaimers

Aftermarket and Non-OEM Product Disclaimer

This is an aftermarket product produced by Original Tractor Cab Co., Inc. It is not a genuine John Deere OEM item. Original Tractor Cab Co., Inc. is not affiliated with, sponsored by or endorsed by Deere & Company. John Deere and its model names are trademarks of their respective owners. We use those names only to identify compatible equipment.

Operator Safety and Liability Disclaimer

This cab provides limited weather protection only. It is not a rollover protective structure (ROPS), falling object protective structure (FOPS), collision guard or certified safety cab. It will not protect the operator from rollover, falling objects, flying debris, collision or other accidents.

Always follow the John Deere operator manual and the Original Tractor Cab installation instructions. Never remove or alter factory safety equipment to install this cab. Keep all controls, steering parts, PTO shafts and tools clear of the enclosure.

The cab may change the tractor's height, width and sight lines. So, check all clearances before use. Also, never run a diesel engine in a closed or poorly ventilated area. Exhaust contains harmful gases.

California Proposition 65 Warning

WARNING: This product can expose you to chemicals including lead and/or other compounds, which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov .
