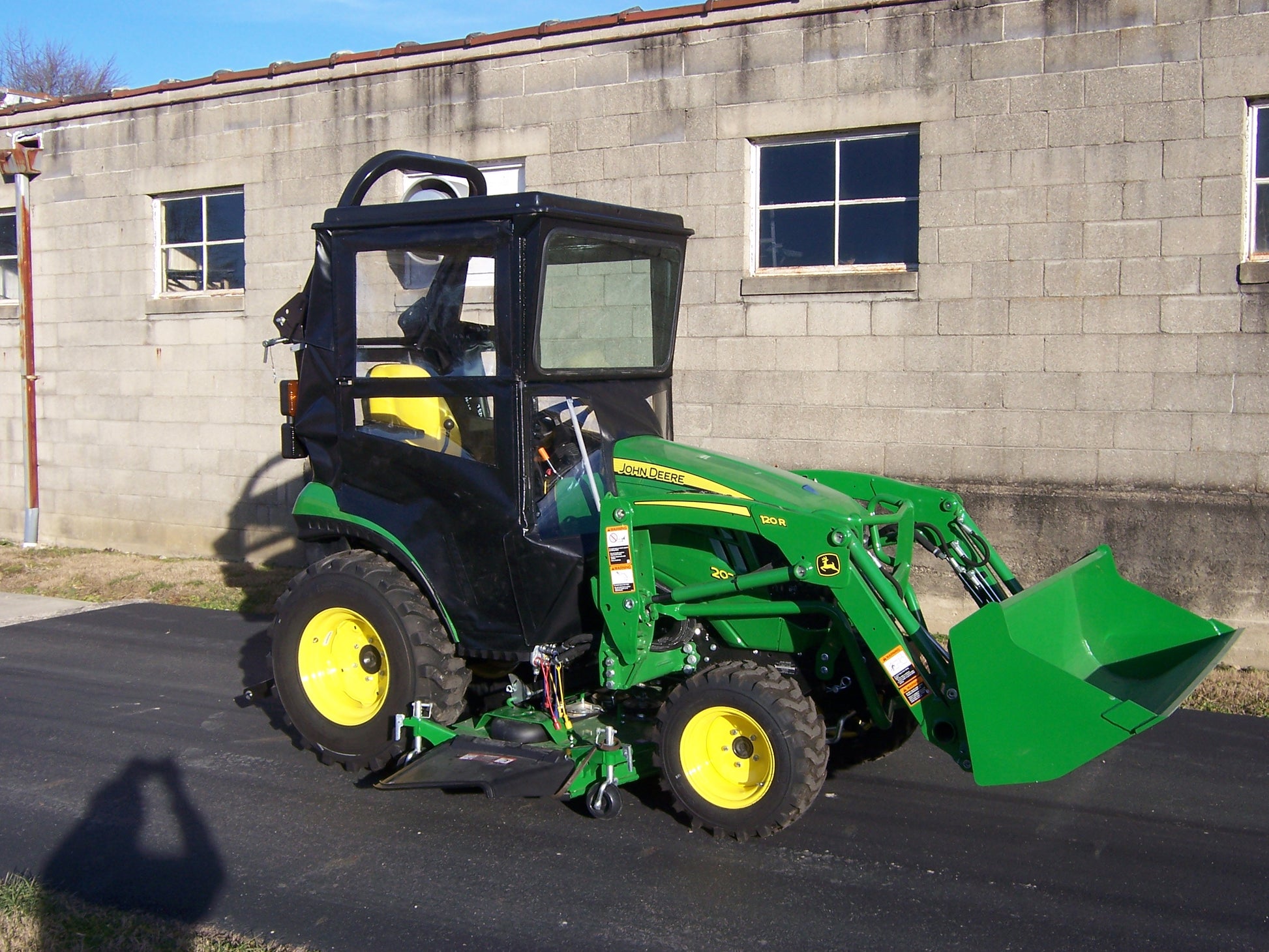

John Deere 2025R Cab 40267 Product Specifications

Cab Model and Tractor Fit

Cab model: 40267. Product type: Hardtop tractor cab enclosure. Tractor model: John Deere 2025R. Model years: 2017 through 2026. Fuel tank location: Fuel fill on the fender. ROPS design: Forward-leaning ROPS. Hydraulic coupler restriction: Not compatible with the single-point hydraulic coupler.

Roof, Windows and Doors

Roof: ABS plastic hardtop. Front windshield: Safety glass. Windshield wiper: Electric wiper included. Side windows: Clear, shatter-resistant Lexan. Rear curtain: Clear, shatter-resistant Lexan. Doors: Hinged doors with latches. Mounting: Existing tractor mounting holes. Typical installation time: Three to four hours. Country of manufacture: United States.

Cab Height and Clearance

Original Tractor Cab lists a ground-to-cab-top height of 84.5 inches for this application. The product listing also gives a ground-to-ROPS-top height of 93 inches. So, check both figures before you drive into a shed, garage or low work area.

Tire size, tire pressure and tractor setup can change real clearance. Therefore, measure your full tractor after installation. Never rely on a listed height alone when you pass under a low door or branch.

All-Weather Protection for the John Deere 2025R

Help Stay Dry During Rain

Rain can start while you haul mulch, move soil or care for your land. So, Cab 40267 adds a hard roof and clear panels around the seat. The enclosure helps block direct rain as you work.

A hardtop cab can make wet chores feel less harsh. Plus, the front glass and electric wiper help keep your view clear when rain hits the windshield. Yet water may still enter through gaps. This cab is not a sealed room.

More Cover for Snow Removal

Snow can blow toward the seat when you clear a drive or lane. Then, cold wind can push that snow into your face. So, the hardtop cab helps reduce direct snow exposure.

The glass windshield helps shield the front of the operator area. Also, the electric wiper can help clear wet snow from the glass. Still, stop work when snow or ice blocks your view.

Help Shield Against Sleet

Sleet can make outdoor work cold and wet. So, the roof and windows add a layer of weather cover. The hardtop helps block sleet that falls from above.

However, ice can still form on the tractor, windows and ground. Therefore, use care when you enter or leave the cab. Stop work if the ground becomes unsafe.

Reduce Direct Cold Wind

Wind can chill you fast on an open tractor. So, the cab helps block direct wind near your head and upper body. This may make winter chores feel more pleasant.

Yet Cab 40267 does not include a standard heater. Dress for the weather each time you work. Also, keep the cab free of exhaust fumes.

Protection from Light Hail and Harsh Weather

A hard roof can help block direct contact with some falling rain and small hail. However, hail can damage the cab and windows. Large hail and severe storms pose a real risk.

So, stop work and seek safe shelter when severe weather begins. Never use the cab as a storm shelter or falling-object guard.

Weather Cover Through the Seasons

Spring may bring cold rain. Fall can bring wet leaves and wind. Then, winter may bring snow and sleet. So, a weather cab can add value through much of the year.

The John Deere 2025R can serve many jobs with the right tools. Also, Cab 40267 helps shield the operator while the tractor handles those chores.

Original Tractor Cab 40267 Features and Benefits

Strong ABS Plastic Hardtop Roof

Cab 40267 has an ABS plastic hardtop. So, it adds firm weather cover above the operator. The roof helps block rain and snow during normal use.

Yet the roof is not a safety cage. It cannot serve as a rollover guard or a shield from falling limbs. Use the cab only for weather cover.

Safety-Glass Front Windshield

A clear front view is key when you drive. So, Cab 40267 comes with a safety-glass windshield. Glass can help you see the path as you work.

The windshield leans forward. This design helps reduce glare and direct contact with falling rain and snow. Also, it works with the included electric wiper.

Electric Windshield Wiper Included

Rain and wet snow can block your front view. So, Cab 40267 comes with an electric wiper. The wiper helps clear water from the safety-glass windshield.

This feature can help during snow work, spring rain and fall cleanup. Yet a wiper cannot clear all ice or dirt. Stop and clean the glass when needed.

Clear Lexan Side Door Windows

The side doors use clear, shatter-resistant Lexan plastic. So, you can look toward the sides of the tractor while you work. This helps near trees, fences and buildings.

Also, the clear panels let light into the operator area. Yet the windows are not shields against flying rocks or other hard debris.

Clear Rear Curtain

Cab 40267 has a clear Lexan rear curtain. So, you can look behind the tractor. This helps when you back up or check a rear tool.

Keep the rear panel free of dirt and snow. Also, look around before you reverse. Never rely on a window alone to check for people or pets.

Hinged Doors with Latches

The cab has hinged doors with latches. So, you can open and close the doors with ease. This helps when you get in and out during long work days.

Check each latch before you drive. Also, keep the door path clear. Never block a safe way out of the operator area.

No-Drill Cab Mounting

Cab 40267 uses mounting holes that already exist on the tractor. So, normal installation needs no new holes in the machine.

However, each bracket must fit as the guide shows. Never force a mount or alter the ROPS to make the cab fit.

Made in the USA

Original Tractor Cab makes Cab 40267 in the United States. Our company has made weather products since 1939. So, this cab carries on a long line of American-made designs.

John Deere 2025R Cab 40267 Fitment Guide

Fits 2017 Through 2026 John Deere 2025R Tractors

Cab 40267 fits select John Deere 2025R compact tractors from 2017 through 2026. Yet the year alone does not prove fit. The fuel tank and ROPS design must match the cab.

So, check the full tractor setup before you buy. Also, review any added loader or hydraulic parts that may affect the cab frame.

Fuel Fill Must Be on the Fender

The fuel fill location is a key fit rule. Cab 40267 serves the John Deere 2025R with its fuel fill on the fender. So, check that point first.

If your tractor has a different fuel tank layout, do not assume that Cab 40267 will fit. Contact our team before you order.

Forward-Leaning ROPS Required

Cab 40267 fits the newer forward-leaning ROPS design. The cab frame uses this layout as part of its fit.

Yet some older tractors have a different ROPS shape. Therefore, check your tractor from the side before purchase.

Not Compatible with Single-Point Hydraulic Coupler

Cab 40267 does not work with the single-point hydraulic coupler. So, check the loader hydraulic setup on your tractor.

This restriction matters even when the model year, fuel tank and ROPS all match. If your tractor has that coupler, do not order Cab 40267.

Check Loader and Attachment Clearance

The John Deere 2025R can use a front loader and other tools. Yet added parts may change the space near the cab.

So, check the loader mounts, hydraulic lines and controls. Also, make sure each tool can move as the tractor maker directs.

Call for Help with Cab Fitment

A wrong cab can waste time and add return costs. So, check the fit before you place an order.

Call Original Tractor Cab at 800-247-5305. Our team can help you review the fuel fill, ROPS and hydraulic coupler.

John Deere 2025R Cab Installation and Care

Plan Three to Four Hours for Installation

Original Tractor Cab lists a typical installation time of three to four hours. So, set aside enough time to fit the frame, roof, windows and doors.

The real time may vary with your tools and skill. Also, take time to check each mount before use.

Read the Cab 40267 Installation Manual

First, park the tractor on level ground. Next, lower all tools and stop the engine. Then, lay out the cab parts and hardware.

Follow the Cab 40267 guide in our Original Tractor Cab installation manual library . Also, check each bolt and mount before you start work.

Check the ROPS and Cab Mounts

The cab frame must fit the correct forward-leaning ROPS. So, check each mount as you build the cab.

Never drill, cut or bend the ROPS. Also, do not remove a factory safety part to fit the cab. Stop if the parts do not align.

Check Tractor Controls

The cab must leave room for the steering wheel, pedals and other controls. So, test their full range before you drive.

Also, check the loader controls and hydraulic lines. Stop the installation if a cab part blocks safe use.

Keep the Glass Windshield Clean

Mud and salt can block the front view. So, clean the glass as the cab guide directs. Also, check the electric wiper before wet weather work.

Never use a worn wiper blade on dirty glass. Clear ice before you run the wiper. Stop if you cannot see well.

Care for the Lexan Side and Rear Windows

Dirt can scratch clear plastic. So, rinse loose grit away before you clean the panels. Use the care method in the cab guide.

Avoid harsh cleaners and rough brushes. Also, keep sharp tools away from the plastic windows.

Check Hinges, Latches and Hardware

Tractor vibration can loosen hardware. Therefore, check the cab frame, door hinges and latches often.

Tighten loose parts as the guide directs. Also, look for wear or damage before each long job.

Measure Cab Height Before Storage

Cab 40267 adds a roof above the operator area. So, check garage doors, sheds and low limbs.

The listed cab height is 84.5 inches. Yet real clearance may vary. Therefore, measure your own tractor after the cab is in place.

Buy John Deere 2025R Hardtop Cab 40267 Direct

Original Tractor Cab makes Cab 40267 for a specific John Deere 2025R setup. So, buying direct connects you with the company behind the product.

You can review cab fit, manuals and product details on our website. Also, our team can help with technical fit questions.

Compare Other John Deere Tractor Cabs

If you own a different John Deere compact tractor, view our John Deere 2032R and 2038R Hardtop Cab 40371 . That cab serves a different tractor group and will not replace Cab 40267.

Owners of John Deere 3E tractors can also review the John Deere 3025E, 3032E and 3038E Hardtop Cab 40410 . So, check the exact tractor model before you shop.

Order from the Manufacturer

Cab 40267 includes the ABS hardtop, safety-glass windshield, electric wiper and clear Lexan side and rear panels.

Before checkout, confirm the 2017–2026 model year, fender fuel fill, forward-leaning ROPS and hydraulic coupler type.

Then, check the live price, stock and shipping terms on this product page. If you have a fit question, call 800-247-5305.

John Deere 2025R Compact Tractor Specifications

The John Deere 2025R is a compact utility tractor. It can mow, haul, dig and move snow with the right tools.

The tractor has a diesel engine, four-wheel drive and a hydrostatic transmission. So, it can serve many jobs on a small farm or large lot.

Yet machine specs can change by model year and setup. Therefore, use the Deere manual for your exact tractor.

John Deere 2025R Diesel Engine

The current John Deere 2025R uses a three-cylinder diesel engine. Deere lists a 77-cubic-inch engine displacement.

The engine model is 3TNV80F-NCJT. Also, it uses a water-pump cooling system and natural air intake.

John Deere 2025R Horsepower

Deere lists 24 gross horsepower for the current 2025R. The rated engine speed is 3,200 rpm.

So, the tractor can run a range of compatible tools. Yet each tool must match the machine's rated power.

John Deere 2025R Engine Emissions

The current 2025R engine meets Final Tier 4 emissions rules. It uses diesel fuel and a dual-element air cleaner.

So, keep the air filter and cooling system clean. Also, use the service schedule in the Deere manual.

John Deere 2025R Hydrostatic Transmission

The 2025R uses a hydrostatic transmission. So, the operator can change ground speed with foot controls.

This helps during loader work, mowing and snow removal. Also, Deere lists cruise control as standard.

John Deere 2025R Four-Wheel Drive

The 2025R has four-wheel drive. So, it can gain more traction on loose soil and snow.

Yet four-wheel drive does not stop all slips. Use care on ice, wet slopes and soft ground.

John Deere 2025R Rear PTO

The 2025R has an independent rear PTO. Deere lists a rear PTO speed of 540 rpm.

So, the tractor can power compatible rear tools. Yet the tool must match the PTO speed and power rating.

John Deere 2025R Mid PTO

The current 2025R has a mid PTO speed of 2,100 rpm. This drive can serve compatible mower and other mid-mounted tools.

Also, the PTO uses a wet-disc clutch. Follow the Deere manual before you connect or service any tool.

John Deere 2025R Mower Deck Options

The 2025R can use compatible mid-mount mower decks. So, it can help care for large lawns and grass areas.

Deere also offers AutoConnect mower deck features on compatible setups. Yet deck fit varies by model and year.

John Deere 2025R Front Loader

The 2025R can use compatible John Deere front loaders. A loader can help move mulch, soil and snow.

Deere offers Quik-Park loader features on compatible tractor setups. So, owners can attach or remove a loader with less work.

However, Cab 40267 does not fit the single-point hydraulic coupler. Therefore, check the loader hydraulic system before you order the cab.

John Deere 2025R Three-Point Hitch

The 2025R has a rear three-point hitch. So, it can use compatible rear tools for property care.

Deere also offers iMatch Quick Hitch features for compatible tools. Yet each tool must match the tractor.

John Deere 2025R Snow Removal

The 2025R can use compatible snow removal tools. These may include a snowblower or front blade.

So, owners can clear drives, paths and lanes. Yet snow tools can throw ice, rocks and other debris.

Cab 40267 helps shield the operator from weather. It does not protect against flying debris.

John Deere 2025R Backhoe Options

Some 2025R tractors use a compatible backhoe. This can help with trench and digging work.

Yet a backhoe can change operator access and clearance. So, check the full tractor and tool setup before you use the cab.

John Deere 2025R Fuel Tank Location

Fuel tank layout matters when you choose a cab. Cab 40267 serves the 2025R with its fuel fill on the fender.

So, do not rely on the tractor name alone. Check the fuel fill before you place an order.

John Deere 2025R ROPS Design

ROPS shape also matters. Cab 40267 fits the newer forward-leaning ROPS. This design helps set the cab frame location.

Yet a different ROPS may need another cab. Never bend or alter the ROPS to make an enclosure fit.

Official John Deere 2025R Specifications

Review the official John Deere 2025R tractor specifications for current engine, PTO, transmission and equipment data.

You can also use the official John Deere operator manual resources to find care and safety details for your tractor.

These machine specs help explain the John Deere 2025R. Yet Cab 40267 fit still depends on the fuel fill, ROPS and hydraulic coupler.

The History of Original Tractor Cab Company Since 1939

A Farm Need Starts a New Idea

Original Tractor Cab began in 1939. At that time, farmer Stanley Williams needed more cover from harsh weather. So, he made a cab for his own tractor.

Farm work did not stop when rain or snow began. Yet an open tractor left the operator in the cold. Stanley saw a way to make that work less harsh.

Stanley Williams Builds the First Cab

Stanley made a cab to help shield himself from rain, wind and cold. His design met a real need. So, other farmers soon took notice of his work.

They faced the same weather on their own farms. As a result, more people began to ask for a cab like Stanley's.

One Farm Cab Becomes a Business

The first cab began as a simple farm idea. Yet it soon grew into something much more. Other farmers wanted the same type of cover.

So, Stanley's work became the start of Original Tractor Cab. The company grew around a clear goal: help people work with less direct weather on their bodies.

Original Tractor Cab During World War II

World War II brought new needs for goods and supplies. So, the company changed its work to help the war effort.

Original Tractor Cab made backpacks and other needed military items. Then, after the war, the company returned to weather cab products.

New Cabs for New Outdoor Machines

Tractors changed through the years. Lawn and garden tools changed too. So, Original Tractor Cab grew its product line to serve more machines.

New designs helped owners add weather cover to many types of equipment. Also, the company began to offer more cab parts and accessories.

Snowblower Cabs Join the Product Line

Snowblowers became common at homes and work sites. Yet their operators still faced blowing snow and cold winter wind.

So, Original Tractor Cab added snowblower enclosures. These products helped reduce direct exposure to winter weather.

Lawn and Garden Tractor Cabs

Lawn tractors also grew in size and use. So, the company made more cab styles for lawn and garden equipment.

These cabs helped owners work through cold rain, wind and snow. Also, the new designs gave buyers more ways to fit their machines.

Sunshades Add Warm Weather Cover

Cold weather was not the only concern. Hot sun could make long work days harsh. So, Original Tractor Cab added sunshades to its range.

These shades help block direct sun from above. As a result, the company could serve outdoor workers through more seasons.

Three Generations of Family Work

The Williams family carried the company forward through three generations. Each generation faced new tools and new needs.

Yet the main goal stayed much the same. Make useful weather products for people who work outdoors.

Made in Arlington, Indiana

Original Tractor Cab is based in Arlington, Indiana. We take pride in our long history of American manufacturing.

Today, our product range includes hardtop cabs, soft cab enclosures, tractor sunshades, mower sunshades, snow equipment cabs and cab accessories.

From Dealer Sales to Direct Online Orders

Dealers have helped our company reach equipment owners for years. Now, our website also gives buyers a direct way to shop.

So, customers can review product details, fit guides and manuals in one place. Also, they can buy from the company that makes the cab.

Cab 40267 Carries On the Tradition

The John Deere 2025R came long after Stanley built his first cab. Yet rain, snow and cold wind still make outdoor work hard.

So, Cab 40267 brings that same idea to a modern compact tractor. It helps shield the operator from harsh weather.

Learn more on our Original Tractor Cab company history page .

Original Tractor Cab — Made RIGHT in USA Since 1939!

John Deere 2025R Hardtop Cab 40267 FAQs

Which John Deere tractors fit Cab 40267?

Cab 40267 fits select John Deere 2025R tractors from 2017 through 2026. The tractor must have a fender fuel fill and forward-leaning ROPS. Also, it must not have the single-point hydraulic coupler.

Does Cab 40267 fit an older John Deere 2025R?

Not all older models fit. So, check the model year, fuel fill and ROPS. Contact Original Tractor Cab before you buy if your tractor has a different layout.

Does Cab 40267 fit the forward-leaning ROPS?

Yes. The cab fits the newer forward-leaning ROPS design on compatible 2025R tractors.

Does the cab fit a tractor with single-point hydraulic coupler?

No. Cab 40267 does not work with the single-point hydraulic coupler. So, check your hydraulic setup before purchase.

Does Cab 40267 have a glass windshield?

Yes. The cab comes with a safety-glass front windshield. So, you do not need to add a glass upgrade.

Does the cab include an electric wiper?

Yes. Cab 40267 comes standard with an electric windshield wiper. It helps clear rain and wet snow from the glass.

Does the cab have clear side windows?

Yes. Clear, shatter-resistant Lexan plastic forms the side door windows and rear curtain. So, you can see through the enclosure.

Does installation require drilling?

No. The cab uses existing tractor mounting holes. So, normal installation needs no new drilling.

How long does installation take?

Original Tractor Cab lists about three to four hours. Yet the real time may vary with tools and experience.

How tall is the John Deere 2025R with Cab 40267?

The product listing gives a cab-top height of 84.5 inches. It also lists a ROPS-top height of 93 inches. So, measure your tractor before you pass through a low space.

Does Cab 40267 help block rain and snow?

Yes. The hardtop, glass windshield and clear panels help shield the operator from direct rain, snow, sleet and wind. Yet the cab may not block all weather.

Is Cab 40267 made in the USA?

Yes. Original Tractor Cab makes this product in the United States. Also, the company has made weather products since 1939.

Is this a genuine John Deere OEM cab?

No. Original Tractor Cab makes this aftermarket weather enclosure. It is not a genuine John Deere OEM product.

Does Cab 40267 protect from rollover or debris?

No. Cab 40267 provides limited weather cover only. It is not a rollover guard, debris shield or safety cage.

Order Your John Deere 2025R Hardtop Cab 40267

Rain, snow and cold wind can make tractor work hard. So, add more weather cover to your compatible John Deere 2025R.

Cab 40267 has an ABS hardtop roof, safety-glass windshield, electric wiper, clear Lexan windows and hinged doors.

Plus, the cab uses existing tractor mounting holes. So, normal installation needs no drilling.

Before you buy, check the model year, fender fuel fill, forward-leaning ROPS and hydraulic coupler.

Then, review the live price, stock and shipping details on this product page. For fit help, call 800-247-5305.
